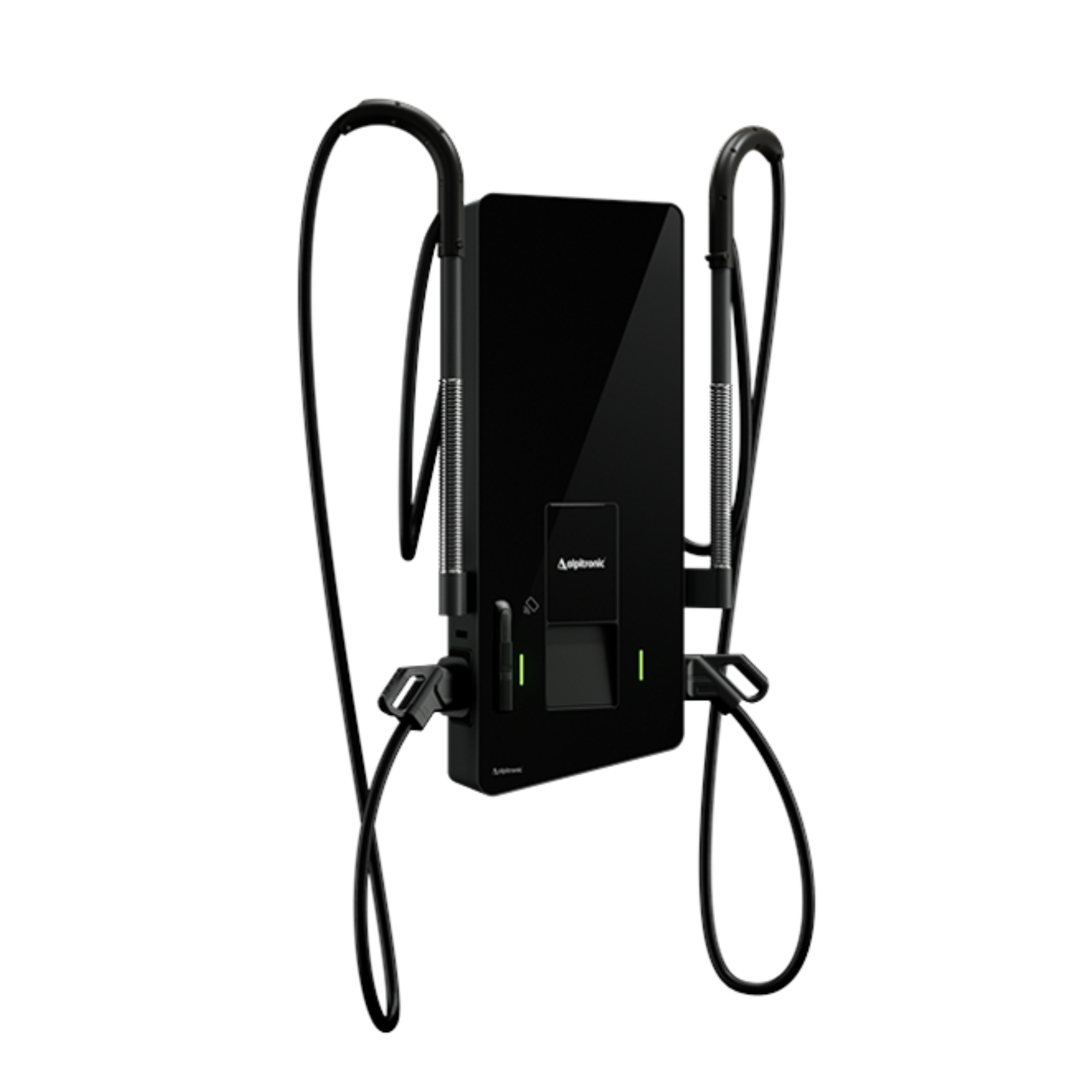

Alpitronic Hypercharger HYC50 – 50 kW DC Fast Charger
- 50 kW DC fast charging
- Quiet in operation
- Professional billing possible
- Professional installation required
- App only works on 2.4GHz
Alpitronic Hypercharger HYC50

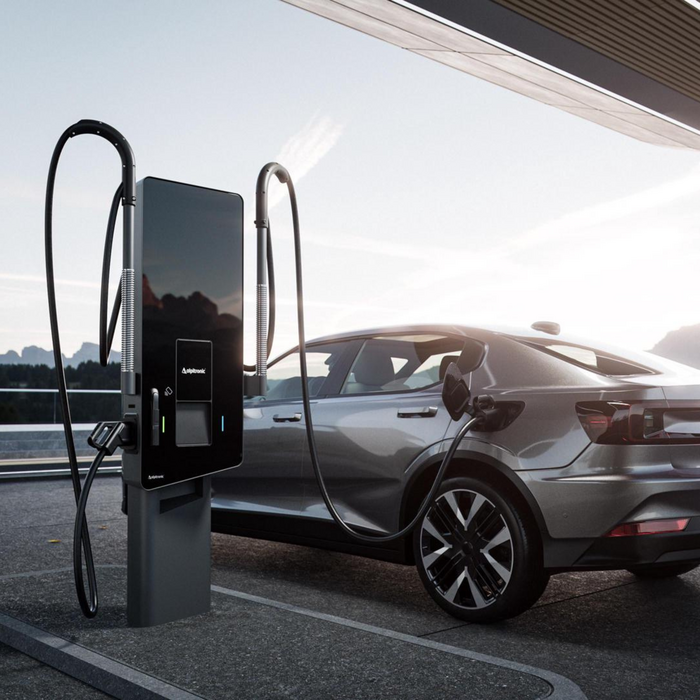

The Alpitronic Hypercharger HYC50 is a compact and powerful 50 kW DC fast charger, designed for commercial and semi-public charging locations where faster charging is required than with a standard AC charging station. The charger can charge one vehicle with up to 50 kW, or two vehicles at the same time with 25 kW per connector. This makes the HYC50 highly suitable for businesses, parking garages, fleets, hotels, shops and other locations where multiple electric vehicles need to charge reliably.
This version is equipped with two CCS2 connectors with 4.5-metre cables, allowing two electric vehicles to be connected at the same time. Thanks to the integrated cable management system, the charging cables remain neatly guided and daily use becomes easier. The HYC50 also supports RFID use and is equipped with MID / Eichrecht metering, making the charger suitable for professional applications where registration, billing or controlled charging is important.
The Hypercharger HYC50 is designed for indoor and outdoor use and has a compact housing that can be mounted either on a wall or on a pedestal. With an IP54 protection rating, IK10 impact protection and a low noise level of less than 50 dBA in silent mode, this DC fast charger is suitable for locations where reliability, ease of use and environmental comfort are important. The 10.1-inch touchscreen provides clear operation for the user.
- Model: Alpitronic Hypercharger HYC50
- Charger type: DC fast charger
- Maximum charging power: 50 kW
- Simultaneous charging: 2x 25 kW
- Connectors: 2x CCS2
- Cable length: 4.5 metres
- Maximum DC current: 150 A per CCS2 output
- DC voltage range: 150 - 1000 V DC
- RFID: Yes
- Metering: MID / Eichrecht
- Cable management: Included
- Display: 10.1-inch touchscreen
- Mounting: Wall mounting or pedestal installation
- Installation: Indoor and outdoor use
- Protection rating: IP54
- Impact protection: IK10
- Efficiency: Up to 97%
- Noise level: <50 dBA in silent mode
- Dimensions: 1300 x 520 x 250 mm
- Weight: 95 - 145 kg, depending on configuration
Want to learn more about the Alpitronic Hypercharger HYC50 DC fast charger?
- Article number: HYC50
- Plug type: 2x CCS2
- Number of Phases: 3 Phase
- Number of cables: Two
- Maximum payload: 50 kW
- Maximum output current: 150A
- Sizes (excluding cables): 1300 x 520 x 250 mm
- RFID Security: Yes
- Weight: 95 - 145 kg, je nach Konfiguration
- Material: Stainless steel
- Protection degree: IP54
- Colour(s): Black
