Besen - 3.7 kW - fase 1 - 16A - type 2 - 6 meter - EV Charger

You want an easy way to charge your hybrid and/or electric car. Then this Plug & Charge model from Besen, is the EV Charger you are looking for. Especially suitable for those who don't need or can't charge quickly, but want a safer solution than charging via the wall socket. Compact and sleek design. Only a small display, on which you can read all necessary charging information and a start/stop button on the side of the EV Charger. Good value for money and 2 year warranty.

• This EV Charger is suitable for all hybrid and electric cars with a type 2 plug.
• Maximum charging capacity: 3.7 kW (16A) on 1 phase
• Plug & Charge model; which means that the car immediately charges the maximum power when connected to the car.

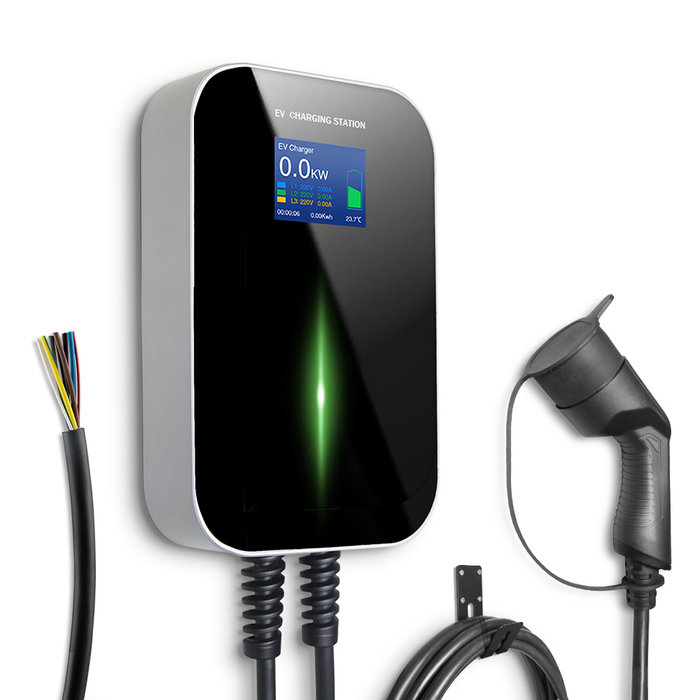

• This EV Charger has a fixed 6 meter charging cable with a type 2 plug.
• Contains a color display, which shows the following information: real-time power, real-time voltage, temperature, power consumed, charging icon, charging time, end time and power in Amps.
• Start/stop button on the side.
• Includes DC 6mA ground fault protection, protection against over -& undercharging, overheating and short circuit.
• The EV Charger does not include an app, all charging information can be read directly from the display.
• Free cable hook: To hang the charging cable over.
• Dimensions: 30 x 20 x 7 cm (h x w x d).
• Made of polycarbonate.
• Colors: brushed metal on the side with black front.

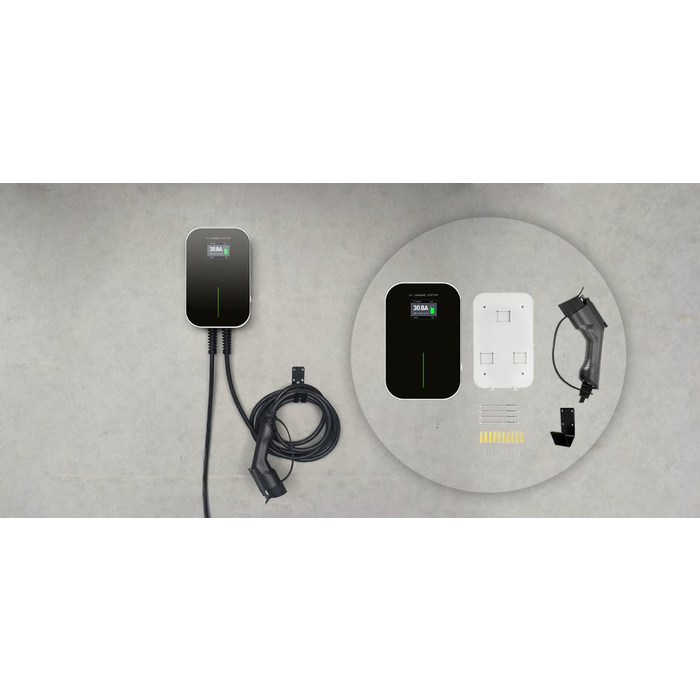

• This EV Charger comes standard with drilling template, mounting step-by-step plan and multilingual manual (also in English).
• Degree of protection IP66: suitable for outdoor use.
• 2-year warranty.

Besen 3.7 kW wallbox installation

When installing a Besen 11 kW EV charger, you actually have 2 choices;
1) You can install the Besen 11 kW wallbox yourself
2) Let a charging station installer install it

In general, we always recommend having the charging station installed by a recognised charging station installer. After all, you don't want to compromise on safety and knowledge. People often underestimate how much is involved and mistakes can have major consequences. A recognised installer has completed the necessary installation courses, often including those provided by the brand itself.
If you decide to install the charging station at home yourself, we would like to give you a few tips.
First, always use an earth leakage circuit breaker with B characteristics, which is always lower than your main connection. Secondly, for this 3.7 kW charging station, use a 3x2.5mm2 YMVK cable for inside / in conduit or a 2x2.5mm2 YMVK-as ground cable for outside. Besides the right power cable, you also have check whether you still have enough space in your fuse box. Because the earth leakage circuit breaker takes up 2 modules and a possible 1 phase kwh meter also takes up 2 modules, so an expansion box is often needed.
For specific charging station installation instructions, please refer to the manual(s) below.

Want to know more about this Besen EV Charger?
- Installation & user manual
- Wiring
- Datasheet
