Easee Charge Lite - 11 kW - type 2 socket - EV charger

Easee charge lite

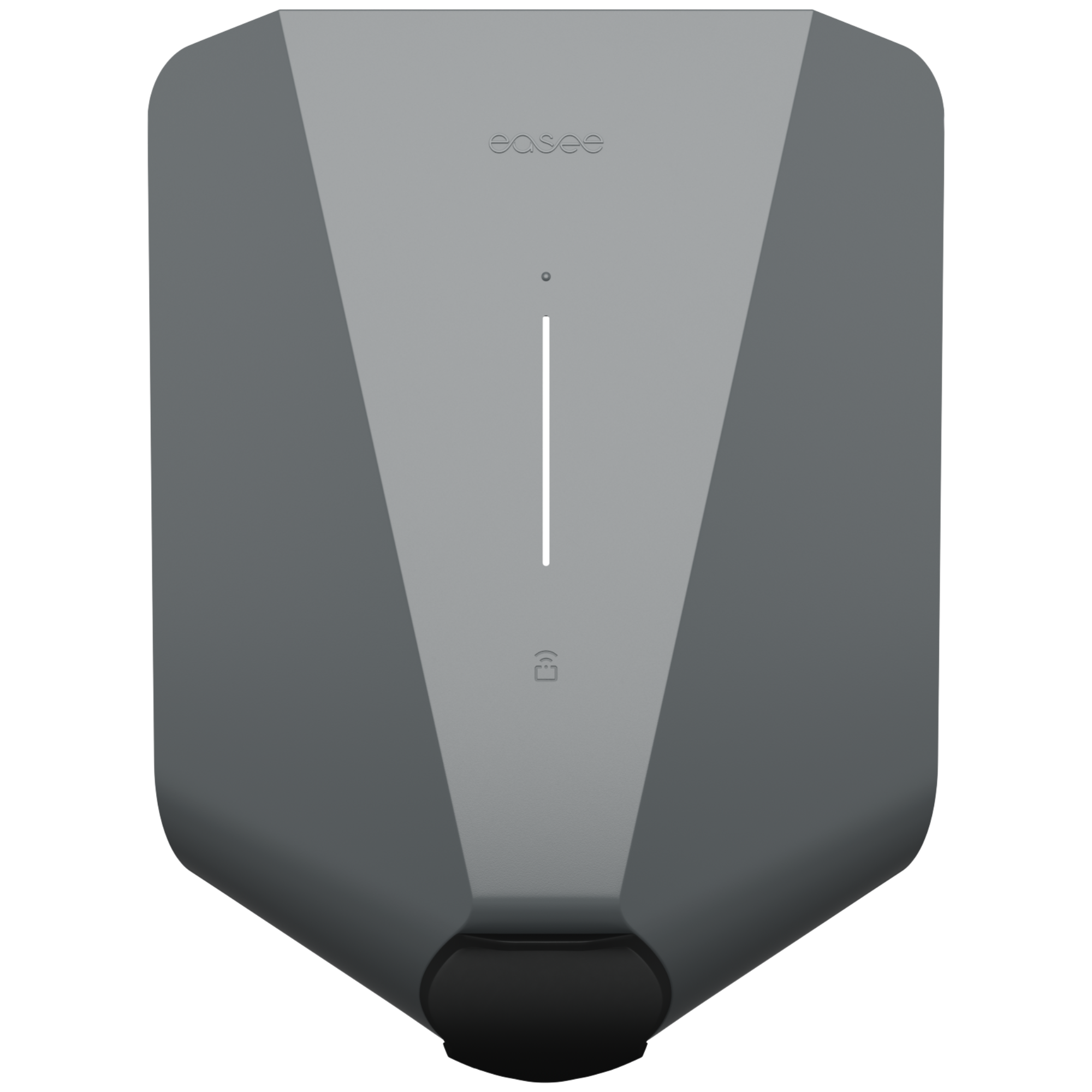

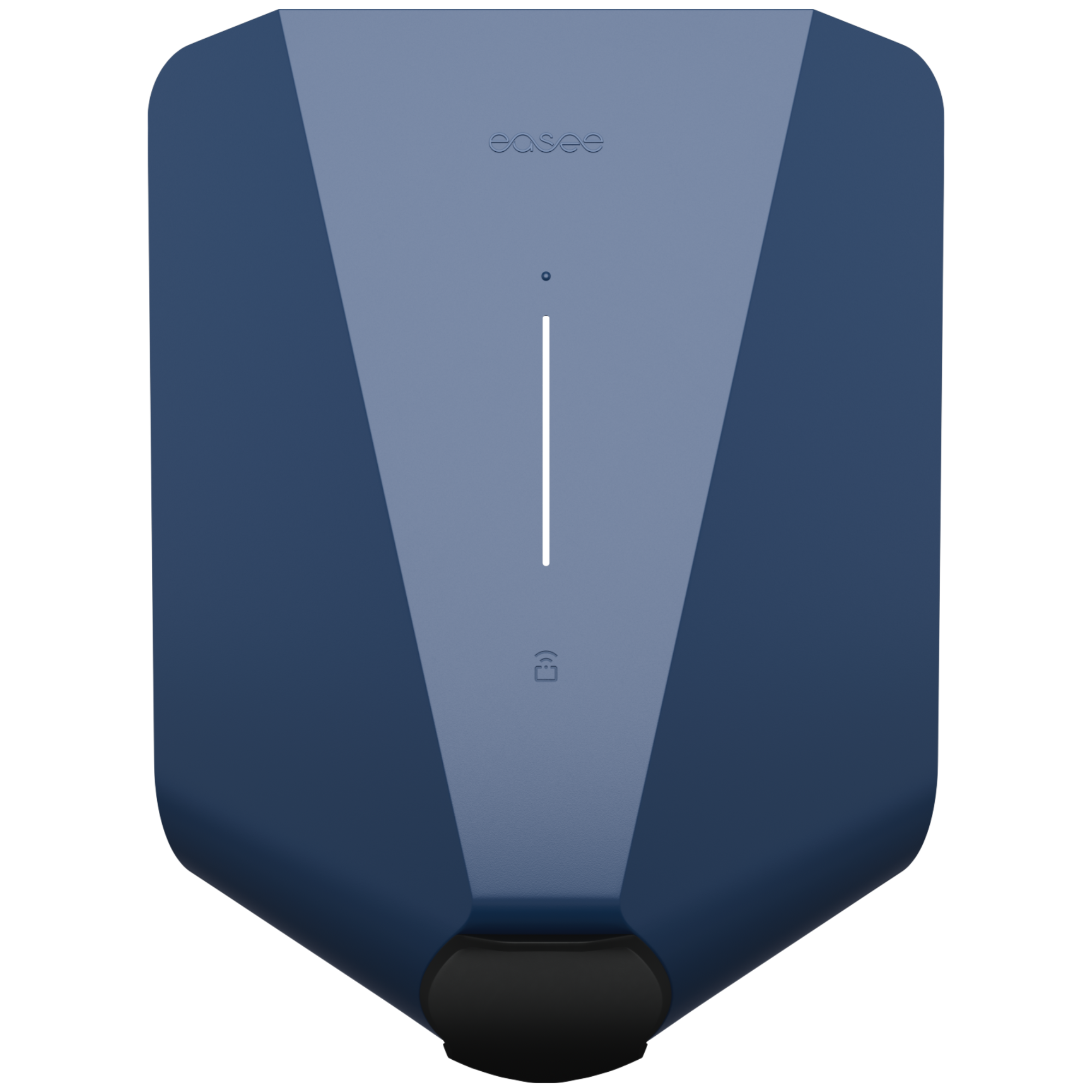

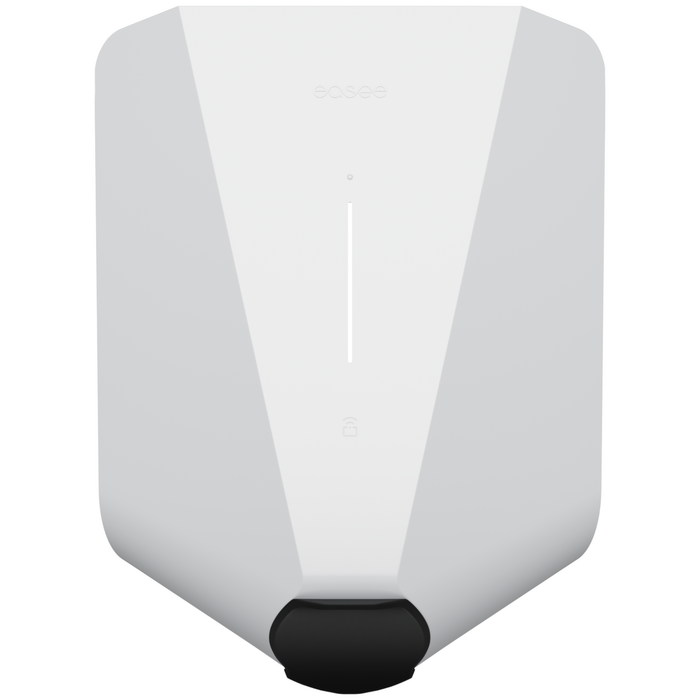

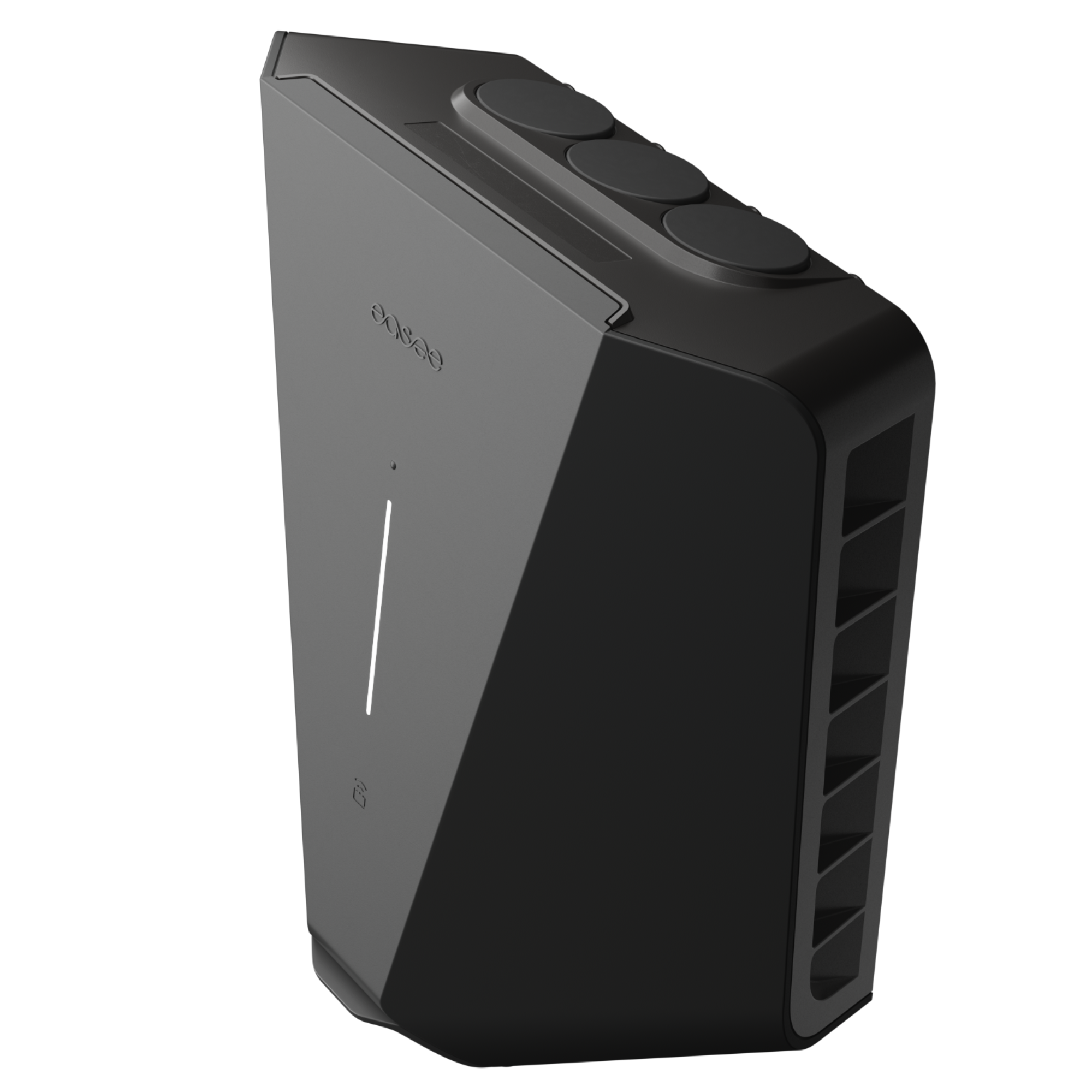

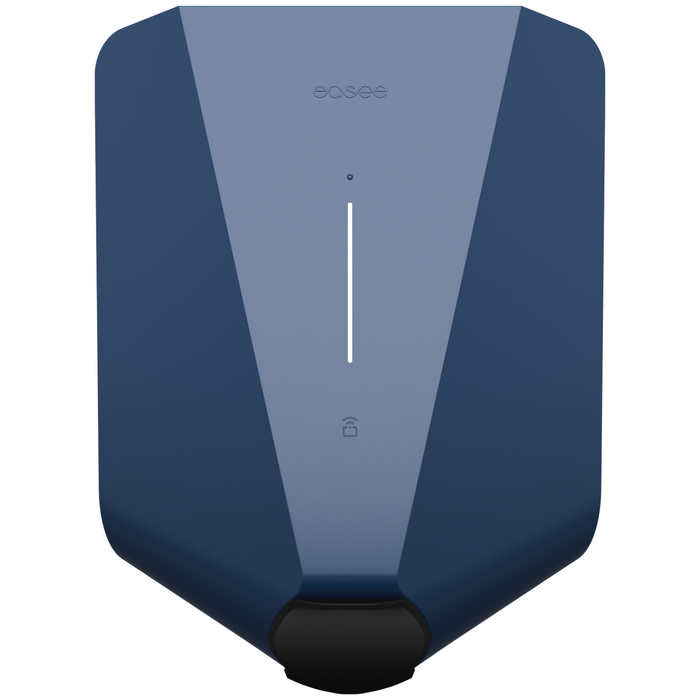

The Easee Charge Lite the new charger of the Easee brand. It has a smart and compact design developed in Norway. Features a charging capacity of up to 11 kW, by a type 2 socket. Anytime and anywhere online via Wi-Fi or 4G, using the Easee APP. Dynamic load balancing is optional by the use of the Easee Equalizer. Suitable for business settlement and all charge cards. A Scandinavian quality product with a 3-year warranty.

• This EV Charger is suitable for all hybrid and electric cars with a type 2 plug.
• Maximum charging capacity: 11 kW / 3 x 16A
• Suitable for business and private use.
• Dynamic load balancing (optional via the Easee Equalizer); this means that the EV Charger automatically takes into account the power consumption of the household/company, thus preventing overloading.
• Free Easee APP; this app allows you to remotely control and monitor/read your Easee Charge Lite EV Charger. Via the app, you can use the following features, among others:
  - Gain insight into your charging session and monitor speed
  - Track your charging history
  - Lock the cable in the charger
  - Control accessibility for friends and/or family.

• Easily charge your car with solar energy from solar panels or other renewable sources. This only works with the Easee Equalizer
• This EV Charger features a socket connection for a type 2 plug.
• Features a "lock function," making the charger also usable with a fixed charging cable.
• Includes DC 6mA ground fault protection, protection against over -& underload, overheating and short circuit.
• Plug & Charge or authorization via RFID security; in order to prevent unauthorized use.
• Power Sharing; possibility to connect multiple (3 pcs) Easee Charge Lite chargers to one connection.
• Free back office choice (sim-lock free).
• Central System communication protocol: OCPP 1.6J cloud-to-cloud
• Wi-Fi and 4G connectivity.
• Dimensions: 26 x 20 x 11 (h x w x d)
• Weight: 1,3 KG

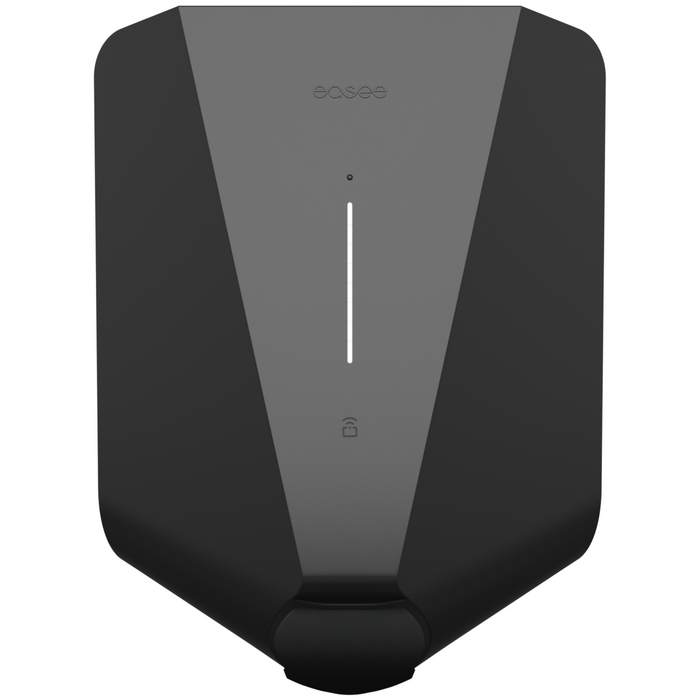

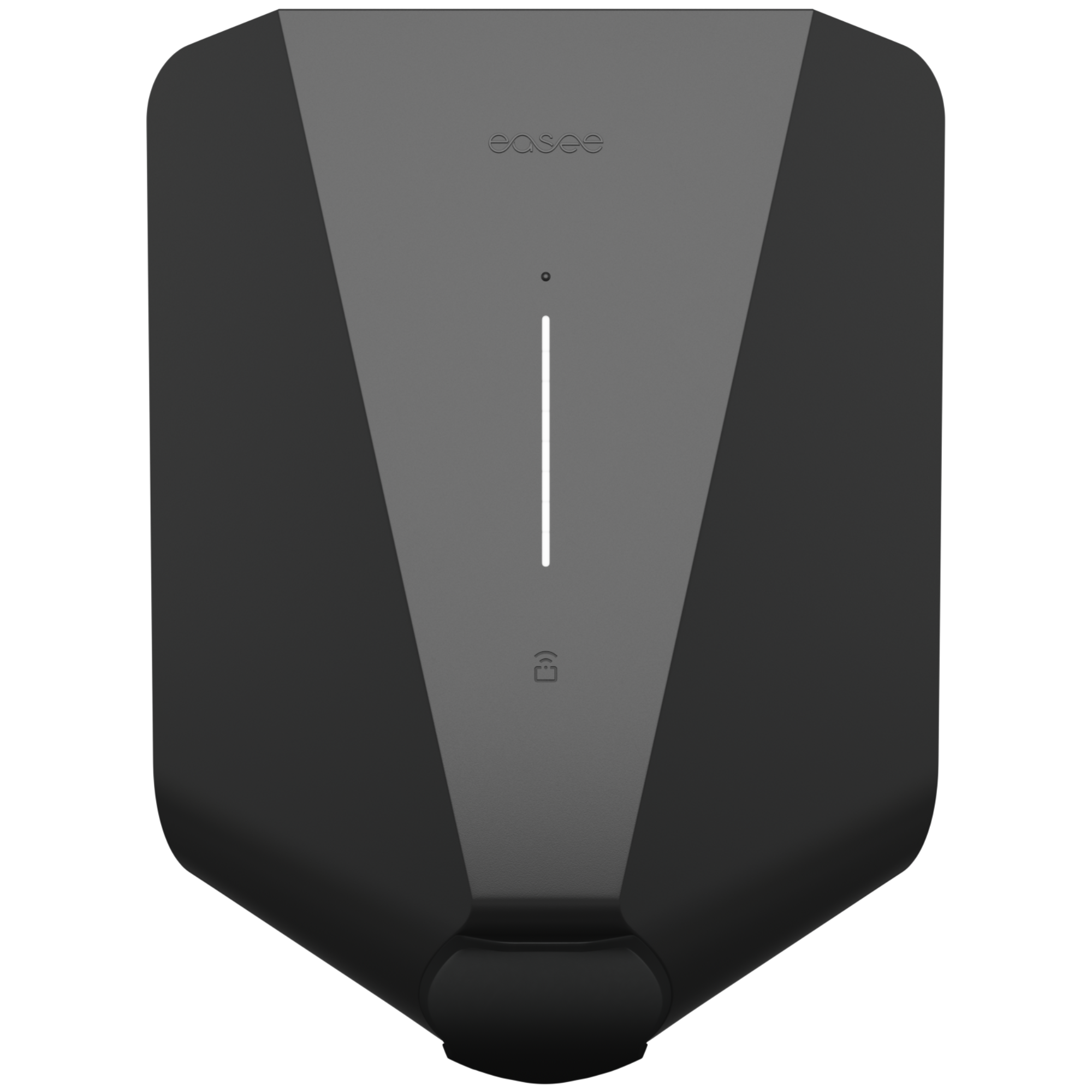

• Made of plastic in the color asphalt black.
• This wallbox comes standard with a multilingual installation and user manual.

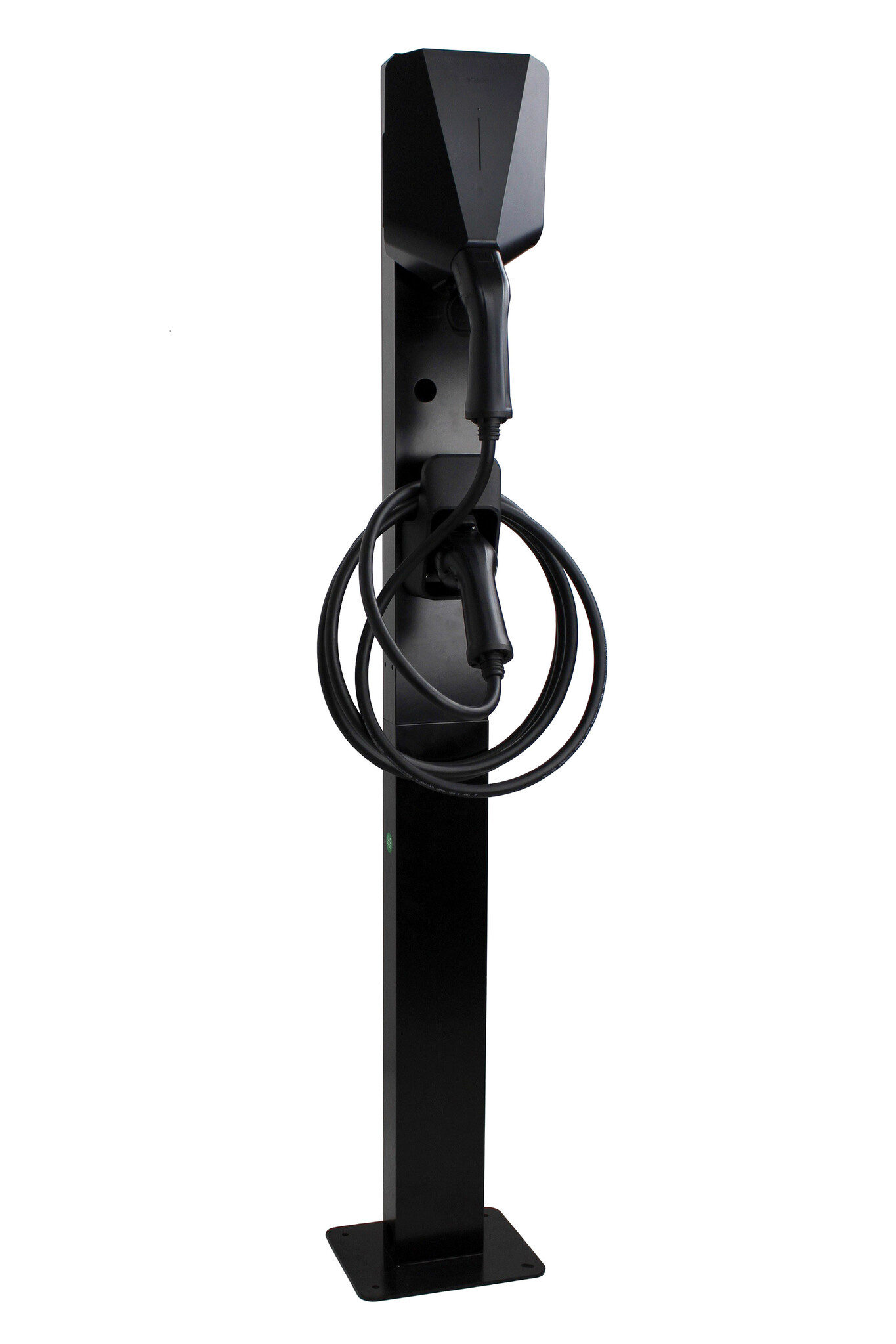

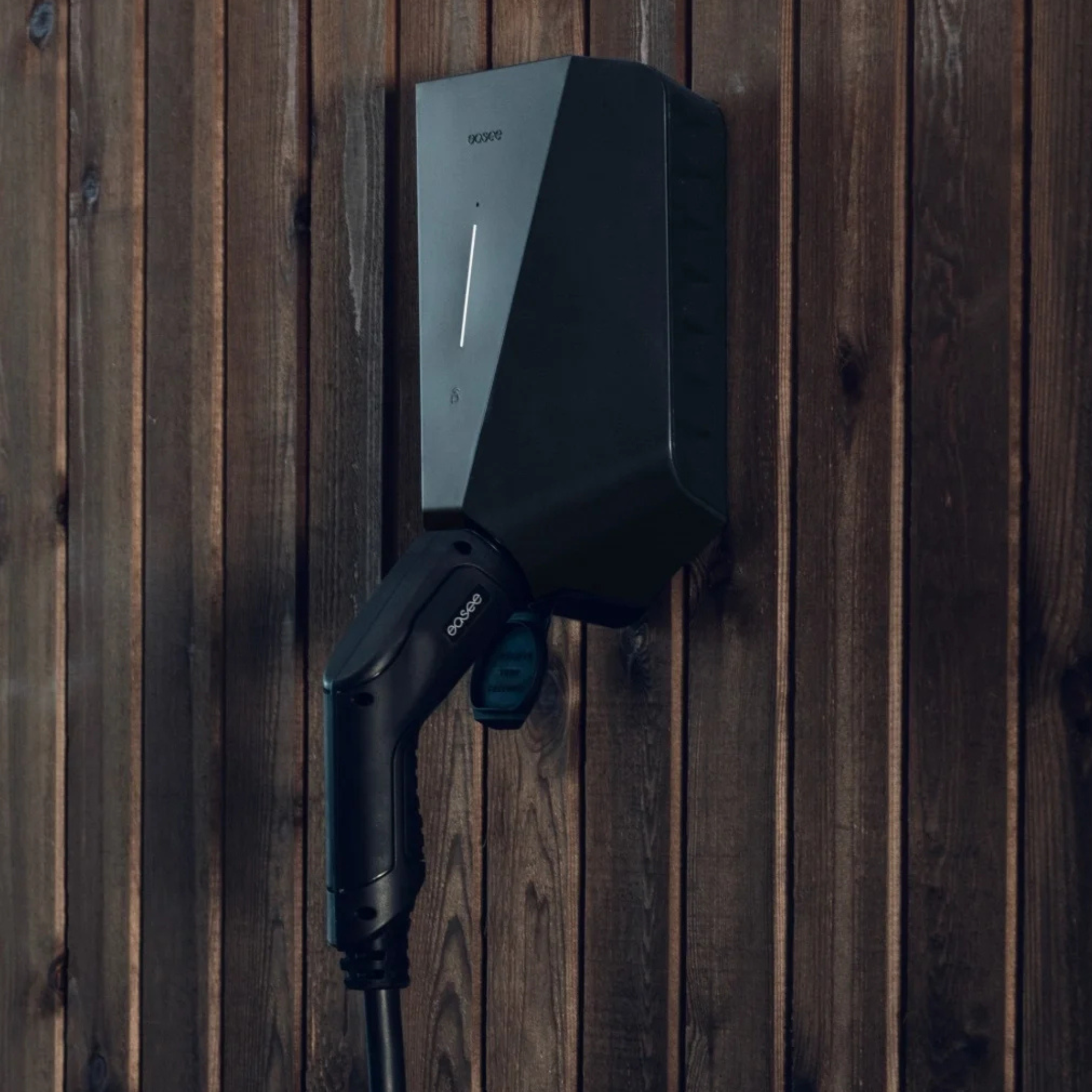

• Wall and pole mounting possible.

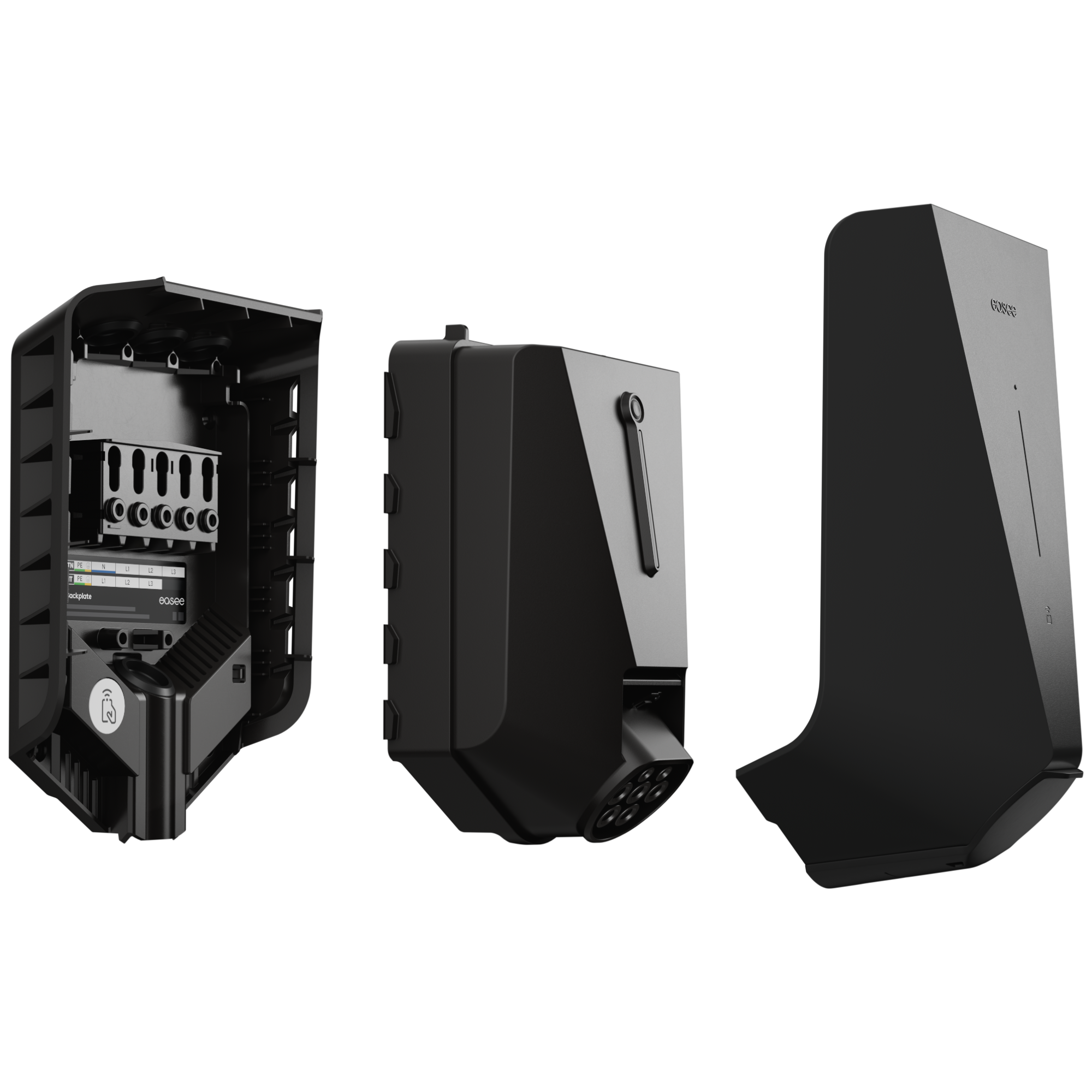

• Easy to install due to the plug-and-play design of the Easee Charge Lite
• Protection grade IP54 / IK8: Suitable for outdoor use.
• European A-quality; a solid and high-quality Norwegian product.
• 3-year warranty.

Easee Charge Lite 11 kw wallbox installation

When installing a Wallbox Pulsar 11 kW EV charger, you actually have 2 choices;
1) You can install the Easee Charge Lite 11 kw ev charger yourself
2) Let a charging station-installer install it
In general, we always recommend having the charging station installed by a recognised charging station installer. After all, you don't want to compromise on safety and knowledge. People often underestimate how much is involved and mistakes can have major consequences. A recognised installer has completed the necessary installation courses, often including those provided by the brand itself.
If you decide to install the charging station at home yourself, we would like to give you a few tips.
First, always use an earth leakage circuit breaker with B characteristics, which is always lower than your main connection. Secondly, you will need a power cable for this 11 kw charging station. In this case, that is a 5x2,5mm2 YMVK cable for inside / in conduit or a 4x2,5mm2 YMVK-as ground cable for outside. If you want to activate dynamic load balancing, you will need the Easee Charge Lite with it. Because it only connects via Wifi, you don't need a data cable.
Have you also checked whether you still have enough space in your fuse box? The earth leakage circuit breaker takes up 4 modules, as does the Easee Charge Lite, so an expansion box is often required.
For specific charging station installation instructions, please refer to the manual(s) below.

Want to know more about the  Easee Charge Lite  Charger?
