- Up to 22 kW charging on 1-phase or 3-phase
- Integrated MID meter with ±1% accuracy
- Use surplus solar energy to charge your car (*power boost required)
- Dynamic load balancing, OCPP and control via the Enphase App
- ISO 15118-20 and hardware prepared for V2H and V2G
- A suitable energy meter or Enphase integration is required for fully solar-controlled charging and load balancing
- Bidirectional charging is prepared, but not yet generally available for regular use
- No Type 2 charging cable included

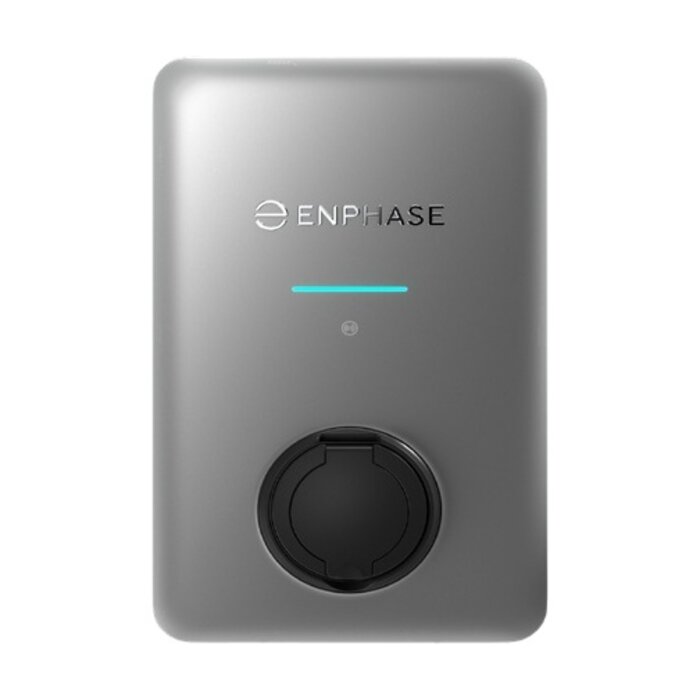

The Enphase IQ EV Charger 2 is a smart EV charger with a Type 2 socket and a maximum charging power of 22 kW. The wallbox can be connected to both 1-phase and 3-phase installations and can be used independently or fully integrated with the Enphase Energy System.
In combination with solar panels, the IQ EV Charger 2 automatically charges using available solar power. Thanks to automatic switching between 1-phase and 3-phase charging, solar charging can start from approximately 1.38 kW of available solar surplus. The charging current is adjusted in 1 amp increments, allowing as much self-generated solar energy as possible to be used.
The integrated MID-certified energy meter records electricity consumption with an accuracy of ±1%. Via the Enphase App, you can start and stop charging sessions, set charging schedules, manage users and view previous charging sessions. The wallbox also supports dynamic load balancing, dynamic electricity tariffs, OCPP and future bidirectional charging functions.
- Suitable for all hybrid and electric cars with a Type 2 connector.
- Adjustable charging power on both 1-phase and 3-phase connections.
- Maximum charging power on 3-phase: 12.7 kW.
- Maximum charging power on 1-phase: 7.4 kW.
- Suitable for both business and private use.
- Dynamic load balancing; prevents overloading of the grid connection.
- Control and monitoring via the Enphase App.
- Start, stop and schedule charging sessions via the app.
- View charging status, charging power and energy consumption.
- Authentication via the Enphase App and RFID.
- This version is equipped with a lockable Type 2 socket.
- A separate Type 2 charging cable is not included as standard.
- Integrated MID-certified energy meter with an accuracy of ±1%.
- Suitable for recording and reimbursing business charging costs.
- The MID display shows the current energy consumption in kWh, among other information.
- Automatic phase switching between 1-phase and 3-phase.
- Charging with surplus solar energy is possible via the Enphase Energy System.
- Solar charging can start from approximately 1.4 kW of available solar surplus.
- Supports ISO 15118-2, ISO 15118-20 and Plug & Charge.
- Prepared for future bidirectional charging functions.
- WiFi, Bluetooth, Ethernet and mobile connectivity.
- Includes 6 mA DC residual current detection and protection against overvoltage, overcurrent and overheating.
- RGB LED strip on the front shows the current charging status.
- Dimensions: 41 x 25 x 12.8 cm (H x W x D).
- Weight: 6 kg.
- Made of black plastic.
- Wall mounting possible.
- IP55 / IK10 protection rating: suitable for outdoor use.
- Operating temperature from -40°C to 55°C.
- 5-year warranty.
