- Compact size & light weight
- Features MID approved energy meter
- Ability to charge from V2G
- Taking full advantage of your dynamic energy contract
- 5-year warranty
- Does not have Dynamic Load Balancing as standard

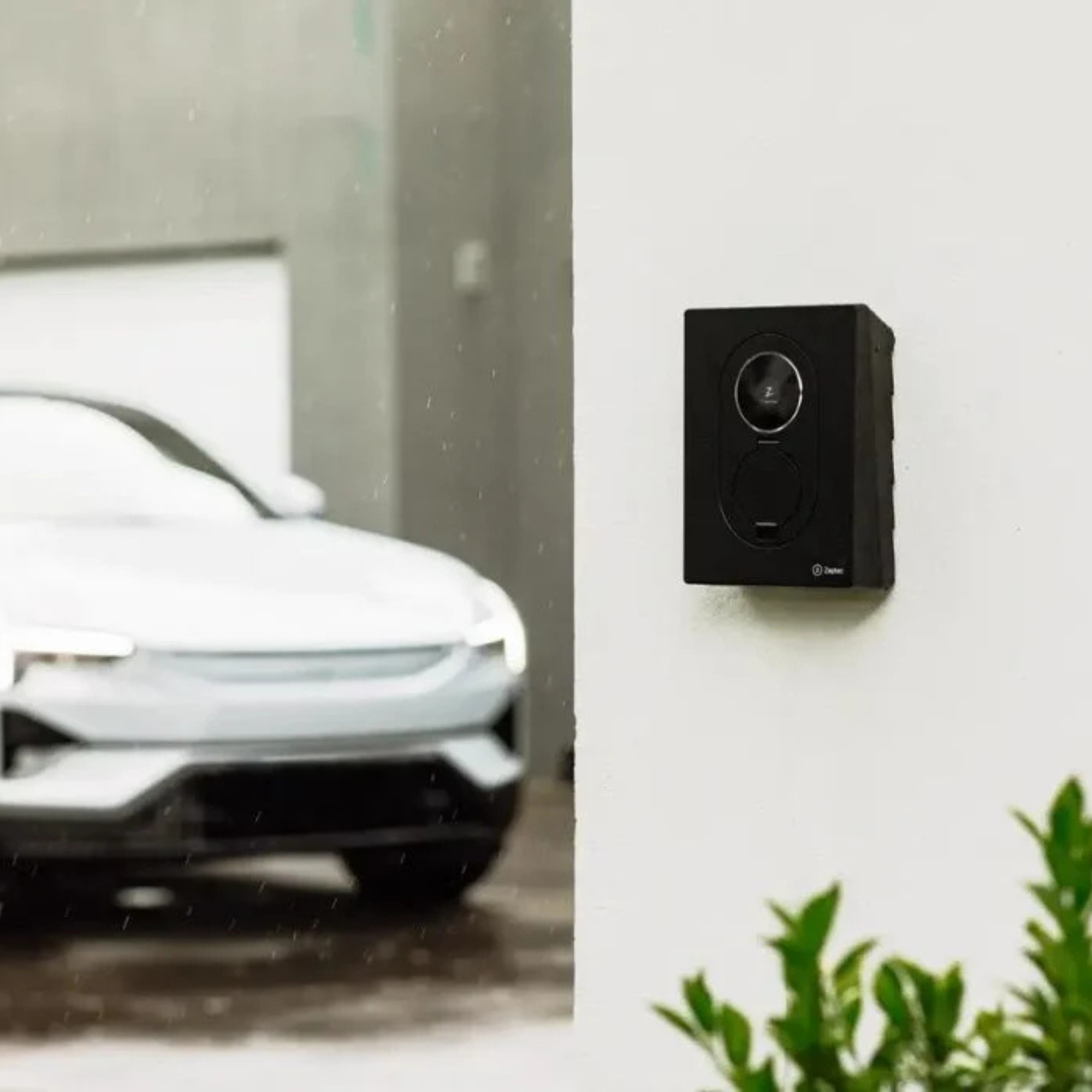

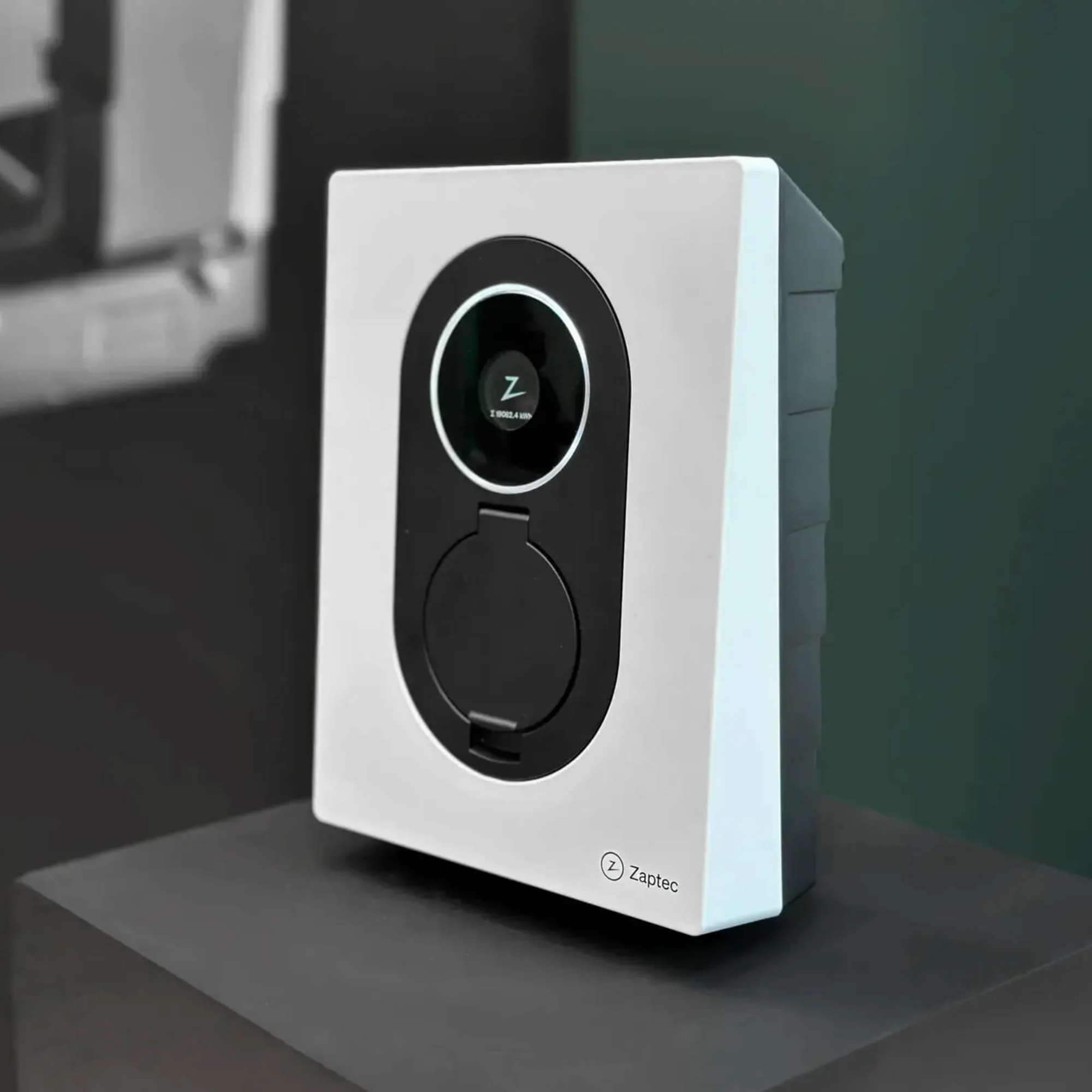

Zaptec Go 2
The Zaptec Go 2 is a compact charger measuring just 24 x 18 cm of sleek Scandinavian design. Equipped with a charging capacity of up to 22 kW, via a type 2 socket. This new charger from Zaptec features future bidirectional charging and is V2G(Vehicle-to-Grid) ready. This allows you to use your electric car as a home battery in the near future, when this car has ISO 15118-20. Equipped with built-in MID-approved energy meter. Easy to pair with your dynamic energy contract from Tibber. Can be operated anytime and anywhere online via Wi-Fi or 4G, using the Zaptec APP. Dynamic load balancing and RFID locking are optional. Suitable for business settlement and all charge cards. A Norwegian quality product with as much as a 5-year warranty.
- This wallbox is suitable for all hybrid and electric cars with a type 2 plug.
- Maximum charging capacity: 22 kW / 3 x 32A
- Suitable for business and private use.
- Bidirectional charging: This charging station is V2G (Vehicle-to-Grid) ready. This will allow you to use your electric car as a battery in the near future. Note: Only suitable for cars complying with ISO 15118-20.
- Dynamic load balancing (optional via the Zaptec Sense); this means that the wallbox automatically takes into account the power consumption of the household/company, thus preventing overloading.
- Linkable with your dynamic energy contract from Tibber; The Zaptec Go 2 has the ability to take full advantage of your dynamic energy contract. In fact, this wallbox can be programmed, through charging schedules, to charge your car at the time when the power is cheapest for you.
- Features built-in MID-approved energy meter: Easily calculate and manage your charging costs with your employer, all according to EU directives for measuring instruments.
- Integration with your solar panels (optional via the Zaptec Sense): The charging station can be linked to your solar panels, optimising the use of your own generated power.
- Features 1/3 phase switching: It is possible to automatically switch between 1 phase and 3 phase charging. This depends on the amount of power available per phase and the amount of generated solar energy.
- Free Zaptec APP; this app allows you to remotely control and monitor/read your Zaptec Go 2 wallbox. Via the app, you can use the following features, among others:
- Gain insight into your charging session and monitor speed
- Track your charging history
- Lock the cable in the charger
- Control accessibility for friends and/or family. - This wallbox features a socket connection for a type 2 plug.
- Features a "lock function," making the charger also usable with a fixed charging cable.
- Includes DC 6mA ground fault protection, protection against over -& underload, overheating and short circuit.
- Plug & Charge or authorization via RFID security (optional via Zaptec RFID Key); in order to prevent unauthorized use.
- LED status indication; via the RGBW LED circle on the front of the Zaptec Go 2, the charging status is displayed.
- Power Sharing; possibility to connect multiple (3 pcs) Zaptec Go 2 chargers to one connection.
- Free back office choice (sim-lock free).
- Zaptec Portal; Installers and owners of Zaptec chargers easily keep track of their own installations/chargers in the Zaptec Portal. Here you add charging stations, see charging history, perform updates, monitor and change configurations, etc.
- Central System communication protocol: OCPP 1.6J cloud-to-cloud
- Wi-Fi and 4G connectivity.
- Dimensions: 24,2 x 18 x 7,5 (h x w x d)
- Weight: 1,3 KG
- Made of plastic in the color asphalt black.
- This wallbox comes standard with a multilingual installation and user manual.
- Wall and pole mounting possible.
- Easy to install due to the plug-and-play design of the Zaptec Go 2.
- Protection grade IP54 / IK8: Suitable for outdoor use.
- European A-quality; a solid and high-quality Norwegian product.
- 5-year warranty.
Zaptec Go 2 22 kW wallbox installation
When installing a Wallbox Pulsar 11 kW EV charger, you actually have 2 choices;
1) You can install the Zaptec Go 2 22 kW ev charger yourself
2) Let a charging station-installer install it
In general, we always recommend having the charging station installed by a recognised charging station installer. After all, you don't want to compromise on safety and knowledge. People often underestimate how much is involved and mistakes can have major consequences. A recognised installer has completed the necessary installation courses, often including those provided by the brand itself.
Want to know more about the Zaptec Go 2 wallbox?
- Installation manual (in English)
- User manual (in English)
- Datasheet (in English)
- EU Declaration of Conformity
- Zaptec Portal login
You can find the Zaptec APP here:
