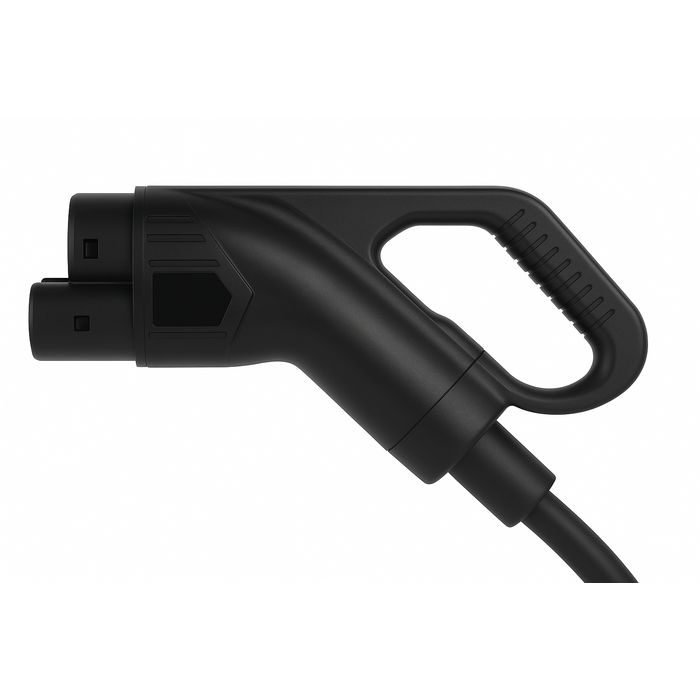

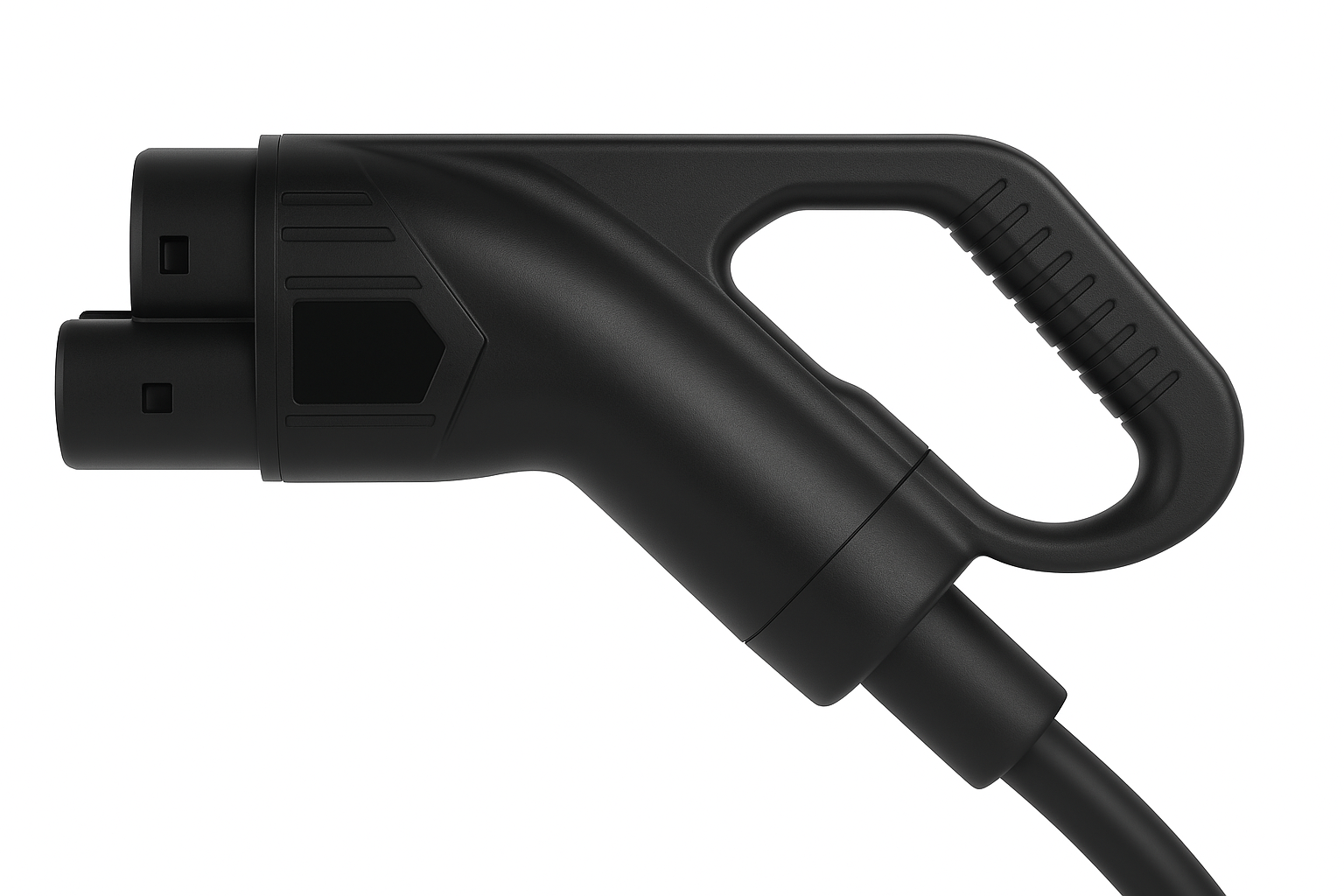

Loady charging cable CCS type 2 with open end - DC charger 5 metres
- Best priced DC charging cable with open end
- Made ready-to-use to easily swap the old charging cable
- May be on the heavy side
This professional CCS Type 2 charging cable with open end is designed for a wide range of DC charging installations, such as fast chargers, battery arrays, power walls and custom EV systems. The cable has a sturdy CCS plug on the vehicle side and an open cable end on the other side, allowing it to be connected directly to a DC charger, distribution device or energy system.
All variants are 5 metres long and available in four current capacities: 150A, 200A, 300A and 375A. This means there is always a cable that matches the desired load and installation requirements.
The cable has thick main conductors for the safe and efficient transport of high direct current, supplemented by thinner control and communication wires for intelligent charge control. The outer sheath is flexible, heat-resistant and suitable for intensive use in professional environments.
- Available in 150A / 200A / 300A / 375A
- 5 metre cable length

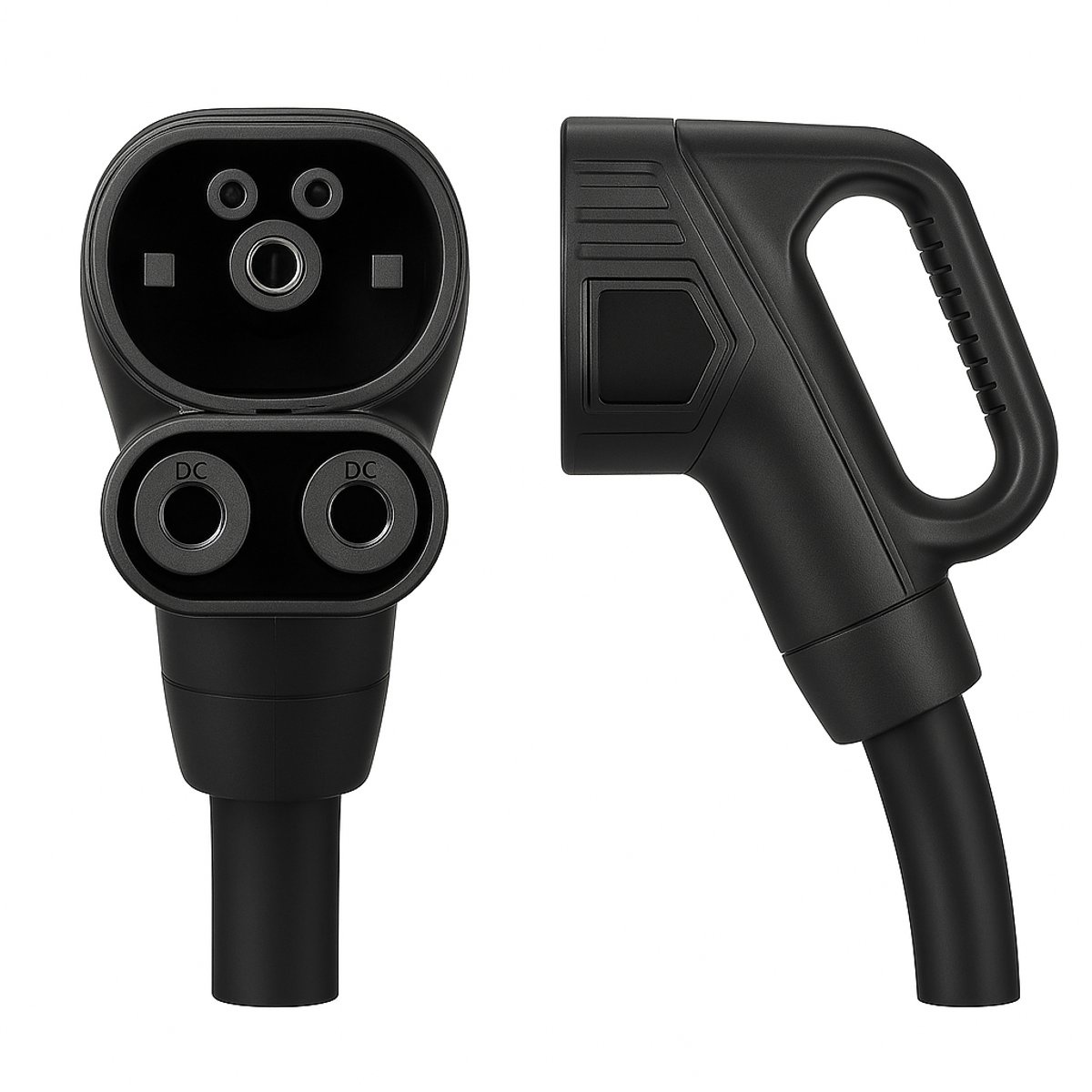

- CCS Type 2 (Combo 2) vehicle plug
- Open end with clear wire colours
- Thick copper main conductors for high DC currents
- Thin control conductors for communication and control
- Heat-resistant, wear-resistant cable sheath
- Suitable for professional DC installations and energy storage systems

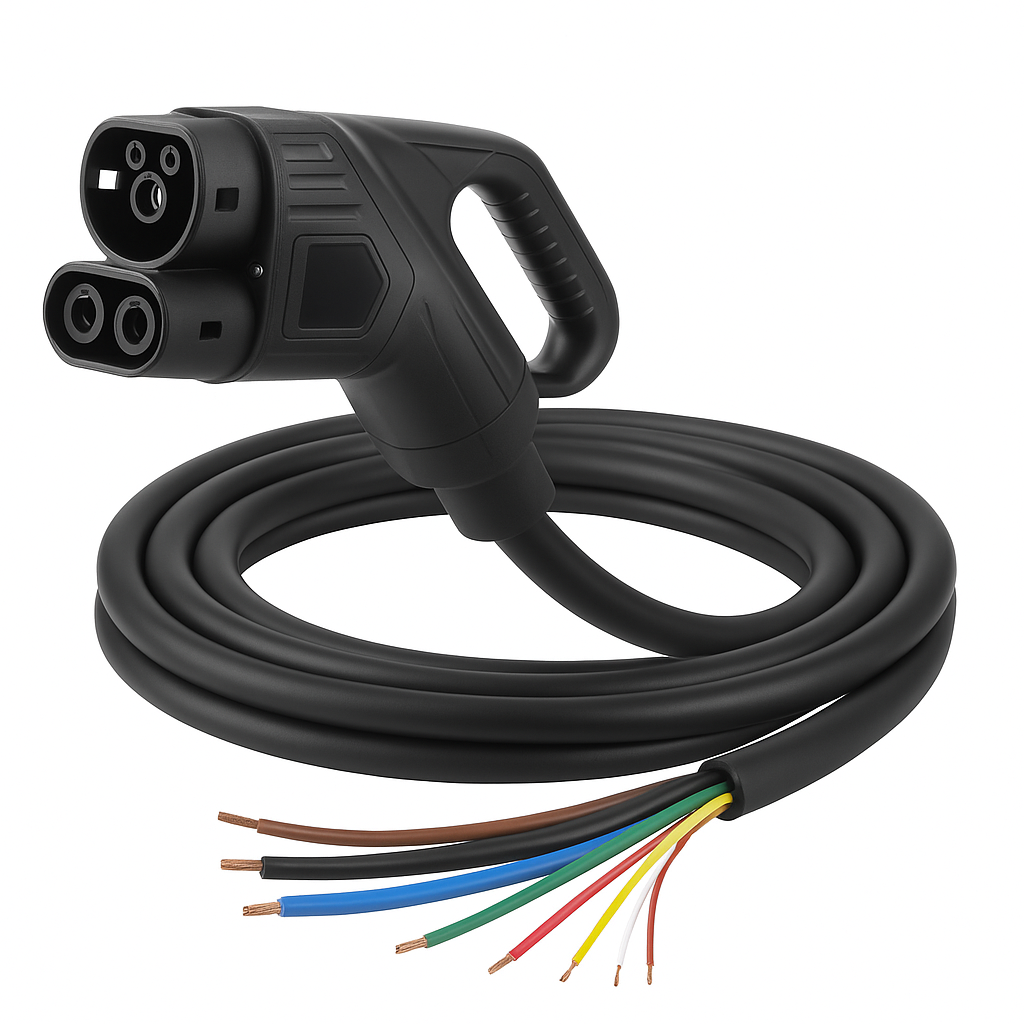

Wire configuration:
- 2x Brown - thick positive wires
- 2x Blue - thick negative wires
- 1x Green/Yellow - thick earth wire
- 3x Red - Signal wire
- 2x White - Communication wire
- Brand: LDY
- Article number: LDY-CCS2-EV-CWC-150A
- Plug type charging point side: Open
- Plug type vehicle side: CCS Type 2 (Mennekes) Female
- Maximum payload: 150A / 200A / 300A / 375A
- Charging cable length: 5 meter
- Colour(s): Black
- Usage: For charging stations with fixed charging cable
- Protection degree: IP55
- Warranty period: 24 months
