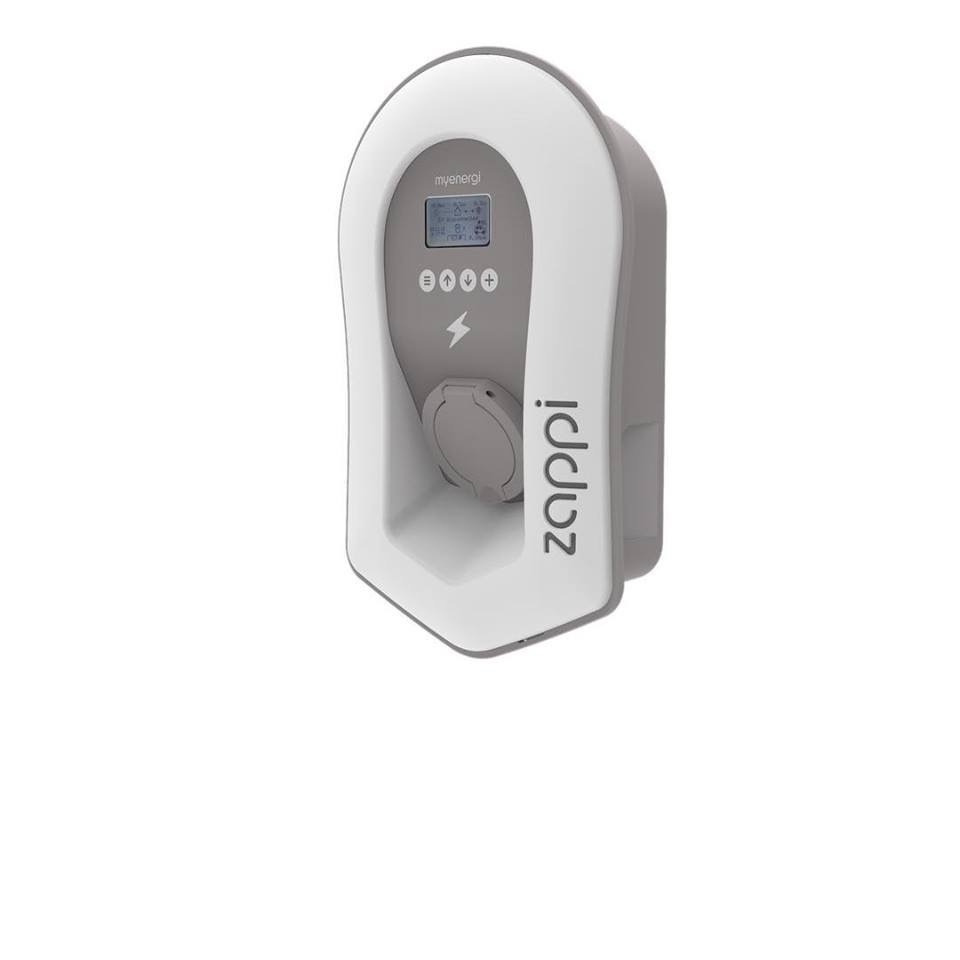

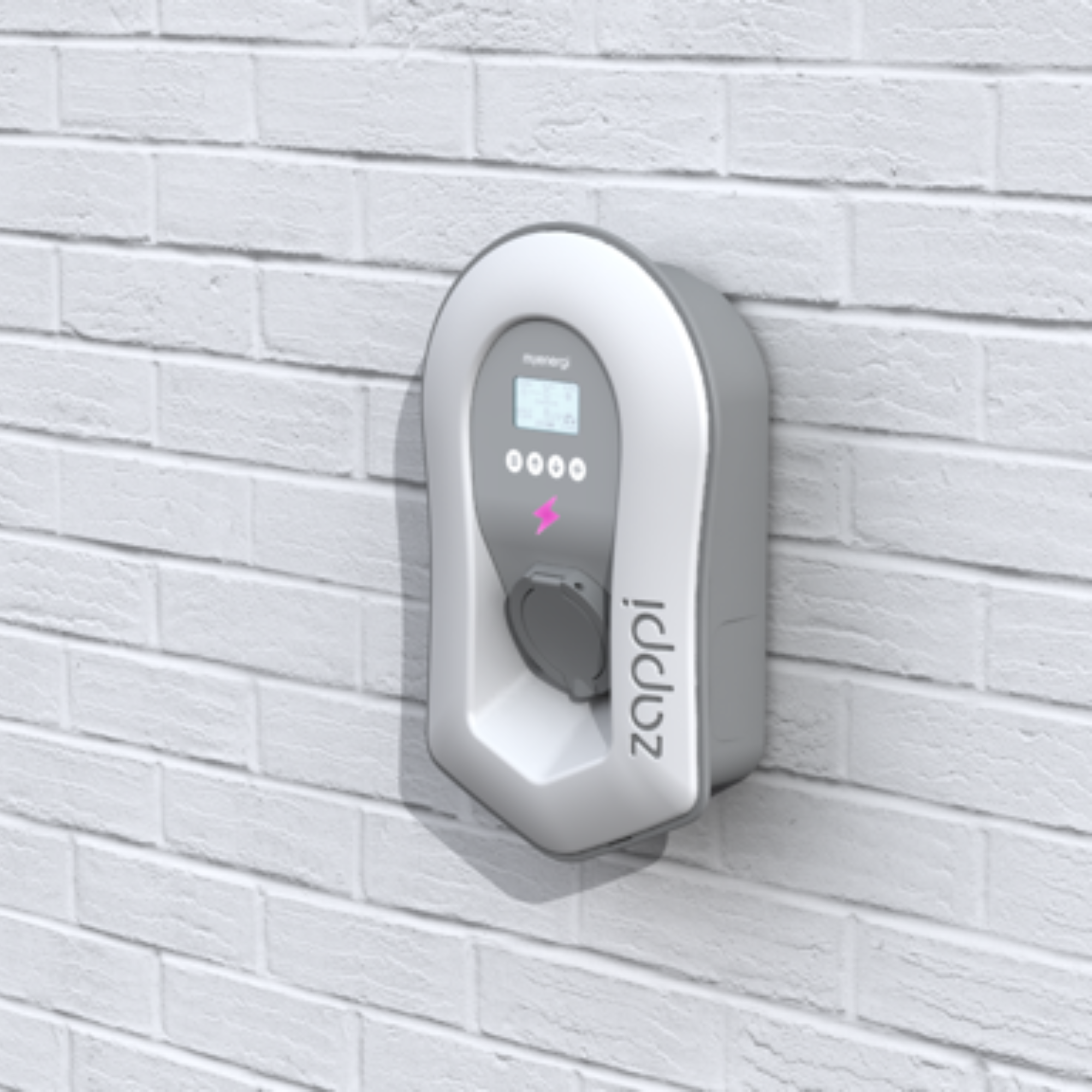

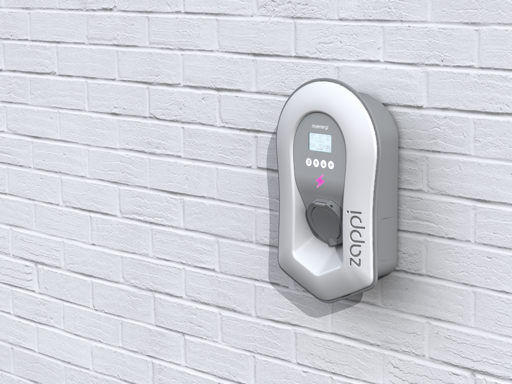

Myenergi Zappi V2.1 - 22 kW - 3-Phase - 32A - type 2 - socket - EV Charger
- The best charging station for charging with your own solar energy
- No fixed charging cable in sight
- NEW: OCPP 1.6J backend communication; including for clearing loading sessions
- Socket connection incorporated in the charging station
- excellent (after sales) service and complaint handling
- Cannot be combined with a charge card
- Big size
The best EV Charger for charging on power from your own solar panels or windmill. Myenergi was the first top brand to meet this need and continues to lead the way. Always equipped with the latest software with the V2.1 model. Very extensive app which can also be used with the Myenergi Eddi and Myenergi Libbi. If you have a dynamic energy contract, the Zappi v2.1 can take this into account. Both wirelessly via the Harvi and wired via an internet cable. Excellent quality and service, with of course a 3-year warranty.
- Contains Dynamic Load Balancing; so the EV Charger automatically consumes only the available power and you do not have to take into account your other electrical devices.
- Can only use your self-generated solar or wind power through ECO and ECO+ mode.
- Extra advantageous charging through the combination with a dynamic energy contract; when you have such a contract the Zappi can charge your car at the most advantageous moments.
- OCPP for backend communication: The Open Charge Point Protocol (OCPP) controls communication between a charging station and a backend system. Thanks to OCPP 1.6J, a single backend system allows you to control one or more Zappis very easily and this allows you, for example, to view individual charging processes, manage users and bill the charged power. *PLEASE NOTE: Firmware version 5.114 or higher required
- Built-in Hub; this keeps the Zappi's software constantly up-to-date.
- Via the free myenergi app on your smartphone you can read and control the Zappi remotely.
- One of the few charging stations that can be connected via Ethernet & WiFi connection (via the Harvi).
- Maximum charging capacity: 22 kW / 3 phases of 32A
- Equipped with a socket connection for a type 2 plug.
- Including 3 CT clamps: which are needed for dynamic load balancing and connection to the solar panels.
- Built-in earth leakage circuit breakers; for alternating current up to 30mA and direct current up to 6mA = Type B.
- Possibility to expand with 3 extra myenergi CT clamps in combination with the Harvi, making the power consumption with the solar panels transparent via the myenergi app.
- IP65; high water resistance and thus extremely suitable for outdoor use
- User manual in English and other languages.
- 3 year warranty.
Want to know more about this Zappi V2.1 EV Charger?
- Operation & Installation Manual
- Quick install guide
- vHub & WiFi set-up manual
super! Great device to combine with your solar panels. The app works perfect as well.
Posted on 22/09/2022Sehr gute Wallbox, mit vielen nützlichen Funktionen
Posted on 13/07/2022- Brand: Myenergi
- Article number: ZAPPI-2H22UB-T
- Plug type: Type 2
- Number of Phases: 3 Phases
- Number of Amps per phase: 32A
- Maximum payload: 22 kW
- Charging cable length: Socket
- Display: Yes
- RFID Security: No
- Charging information: By display and app
- Controllable via app: Yes (myenergi App)
- Load Balancing: Dynamic
- Connectivity: WiFi & Ethernet
- Connection with solar panels: Yes
- Suitable for charge cards: No
- Automatic settlement: Yes
- Subscription: No, no monthly costs
- Language manual: English, Dutch, German and French
- Colour(s): Black or White
- Weight: 3.3 KG
- Sizes (excluding cables): 43,9 x 28,2 x 12,2 cm (h x w x d)
- Material: ABS 6 & 3 mm (UL 94)
- Protection degree: IP65 / IK10
- Warranty period: 36 months
