Pylontech US5000-1C - 4,8 kWh - Solar Battery

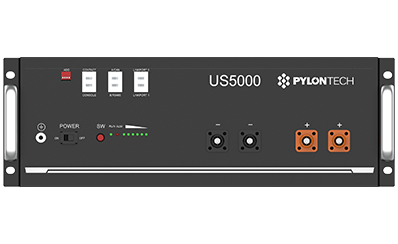

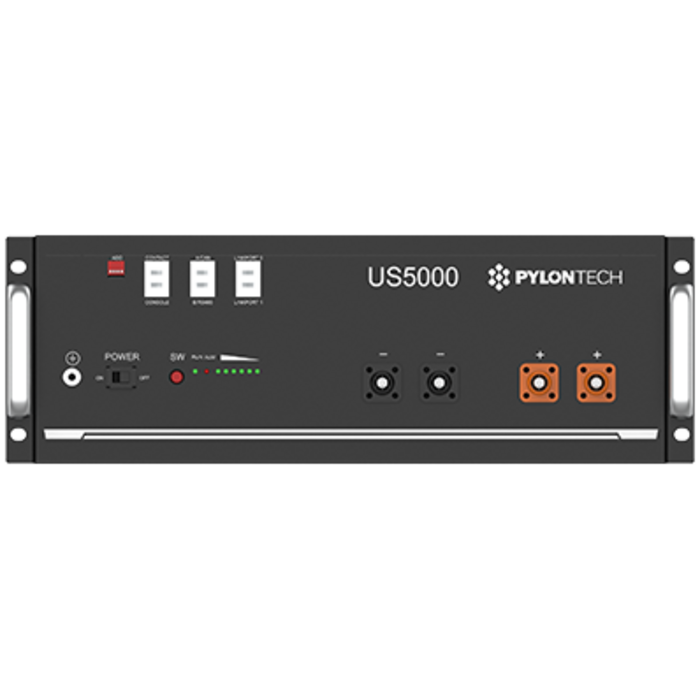

Pylontech US5000-1C
The Pylontech US5000-1C is a high-quality LiFePO₄ home battery, designed for energy storage in residential and light commercial systems. With a nominal capacity of 4.8 kWh and an innovative modular design, this battery offers a safe, reliable, and scalable solution for storing solar energy or increasing energy independence.
The addition of “1C” in the name refers to a higher discharge rate – the battery can deliver its full capacity in approximately one hour, which provides advantages for systems with higher energy demand or backup applications.
- Nominal capacity 4.8 kWh (4800 Wh)
- Usable capacity ~4.56 kWh (95% DoD)
- Nominal voltage 48 V
- Cycle life > 6000 cycles at ~90–95% DoD
- Maximum modules in parallel: up to 16
- Weight ~40 kg
- IP protection rating IP20
Want to know more about this Pylontech home battery?
- Installation manual
- Datasheet
Installation
The Pylontech US5000-1C is integrated into a home battery system. Correct installation is essential to ensure safety, optimal performance, and a long service life of the battery.
We recommend that installation is always carried out by a qualified and certified installer. This ensures proper electrical connection, correct communication with the inverter (CAN/RS485), and safe installation of the battery system.
