Raedian NEO - 22 kW - Type 2 - with MID meter - 5 meters - outlet

This is a used model which has been used and may therefore be dirty and/or have slight signs of use. The charging cable has been tested and cleaned where possible

NOTE: Warranty is retained

OUT329 = Older model

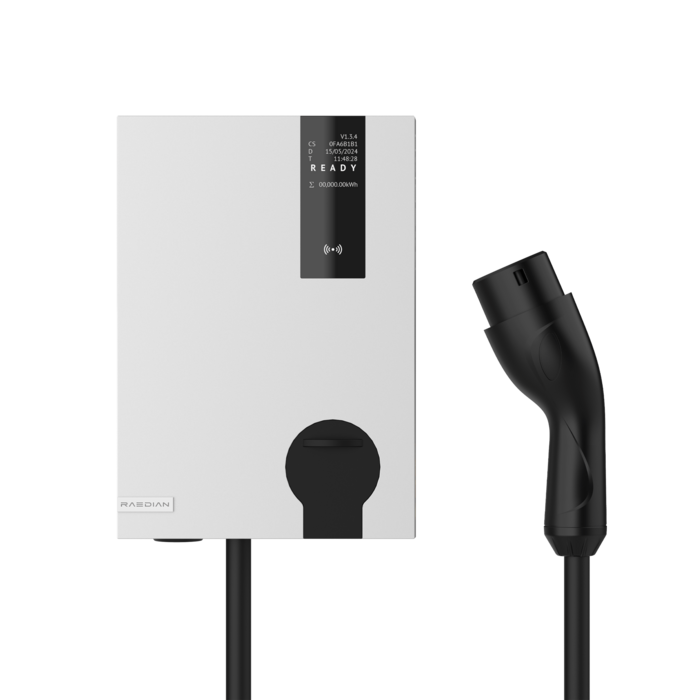

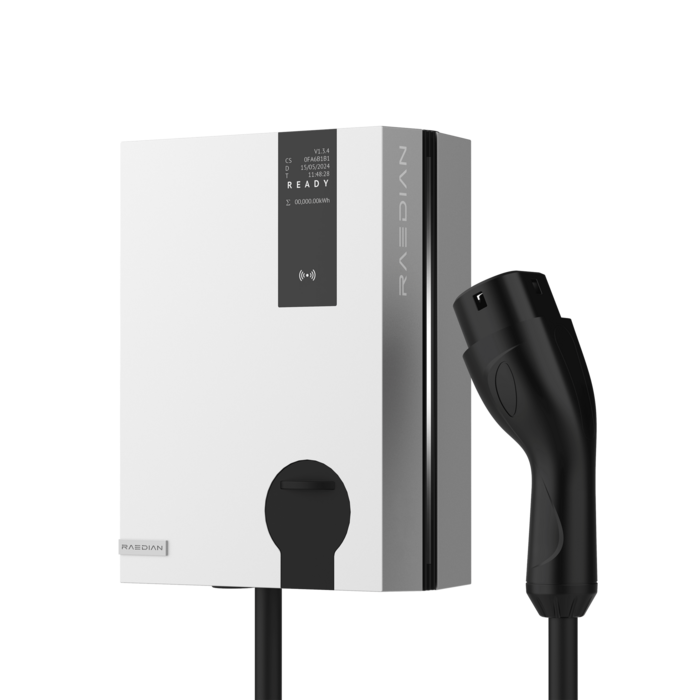

Raedian NEO 22 kW

The Raedian NEO is ideal for anyone who wants a compact and lightweight charging station for their home. It features a charging capacity of 22 kW, LED display and even a MID meter, making business charging possible too. Dynamic Load Balancing and connection to solar panels is possible with Raedian's CT kit.

• This charger is suitable for all hybrid and electric cars and is available with a socket or a 7.5-metre charging cable. Both with a type 2 connection.
• Maximum charging capacity: 22 kW / 3 x 32A.
• Suitable for private and business use.
  Unlock the charging station with an RFID card
  Comes with app that features the following functions:
  - Dynamic Load Balancing
  - Plug & Play concept
  - Schedule charging sessions at off-peak times to save costs on your power bill.
  - Easily share your charger with family and friends
• Business charging via a MID-Meter.
• OCPP 1.6 for backend communication: The Open Charge Point Protocol (OCPP) controls communication between a charging station and a backend system.

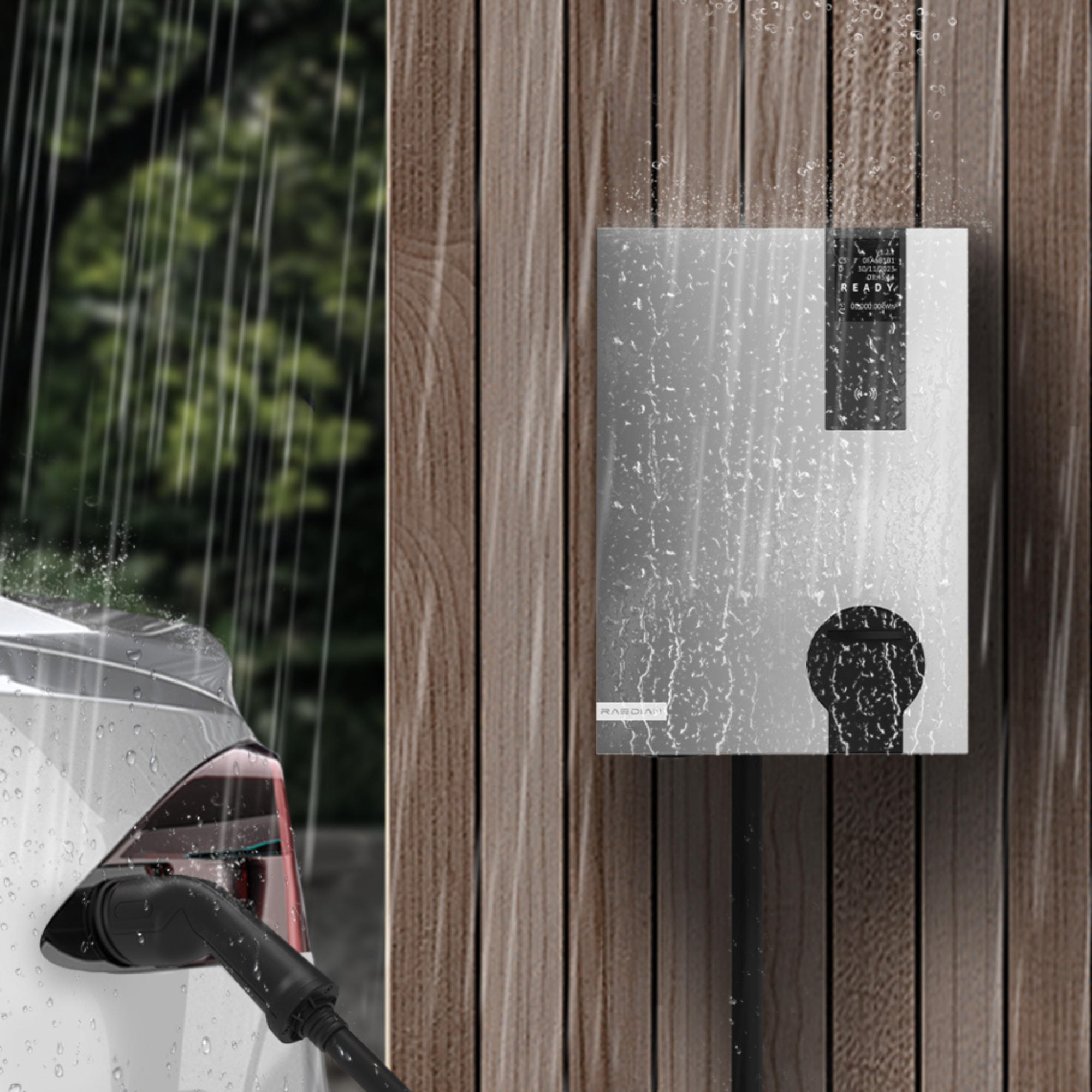

• Certification: IP55 (for indoor and outdoor use)
• Dynamic Load Balancing and Coupling with solar panels optional via CT-Kit.
• Charging on solar panels: With the built-in smart Solar only function, it is possible to charge with your own solar energy. This function ensures that solar energy is used first when charging. It is then topped up with normal power if necessary.
• Compact and light size
• Connectivity: Wi-Fi and Bluetooth
• Free smart charging APP
• Dimensions: 297 x 210 x 110 (mm)
• Weight without cable: 3.2 KG
• 2 year warranty

Want to know more about the Raedian Nora?
- Datasheet
- Installation and user manual

You can find the free Raedian APP here:

Item number: OUT329
