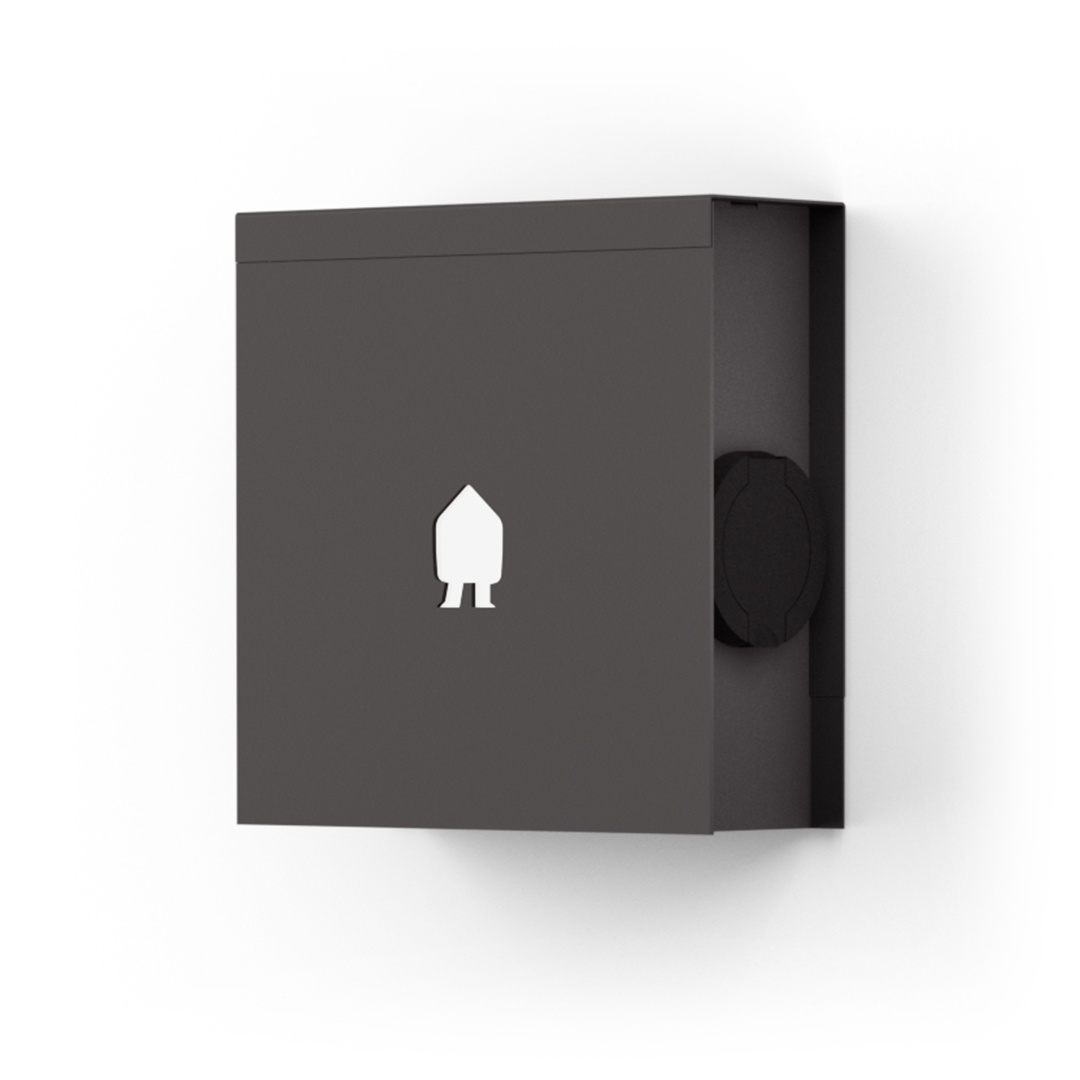

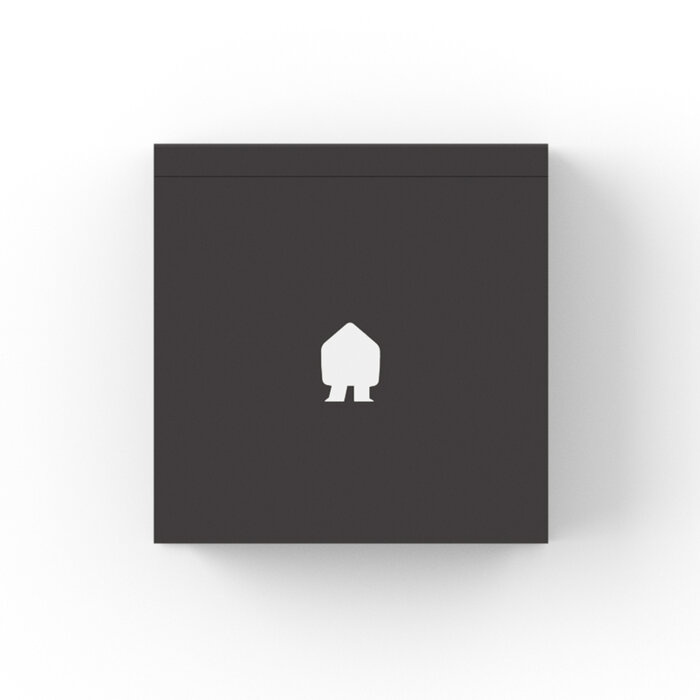

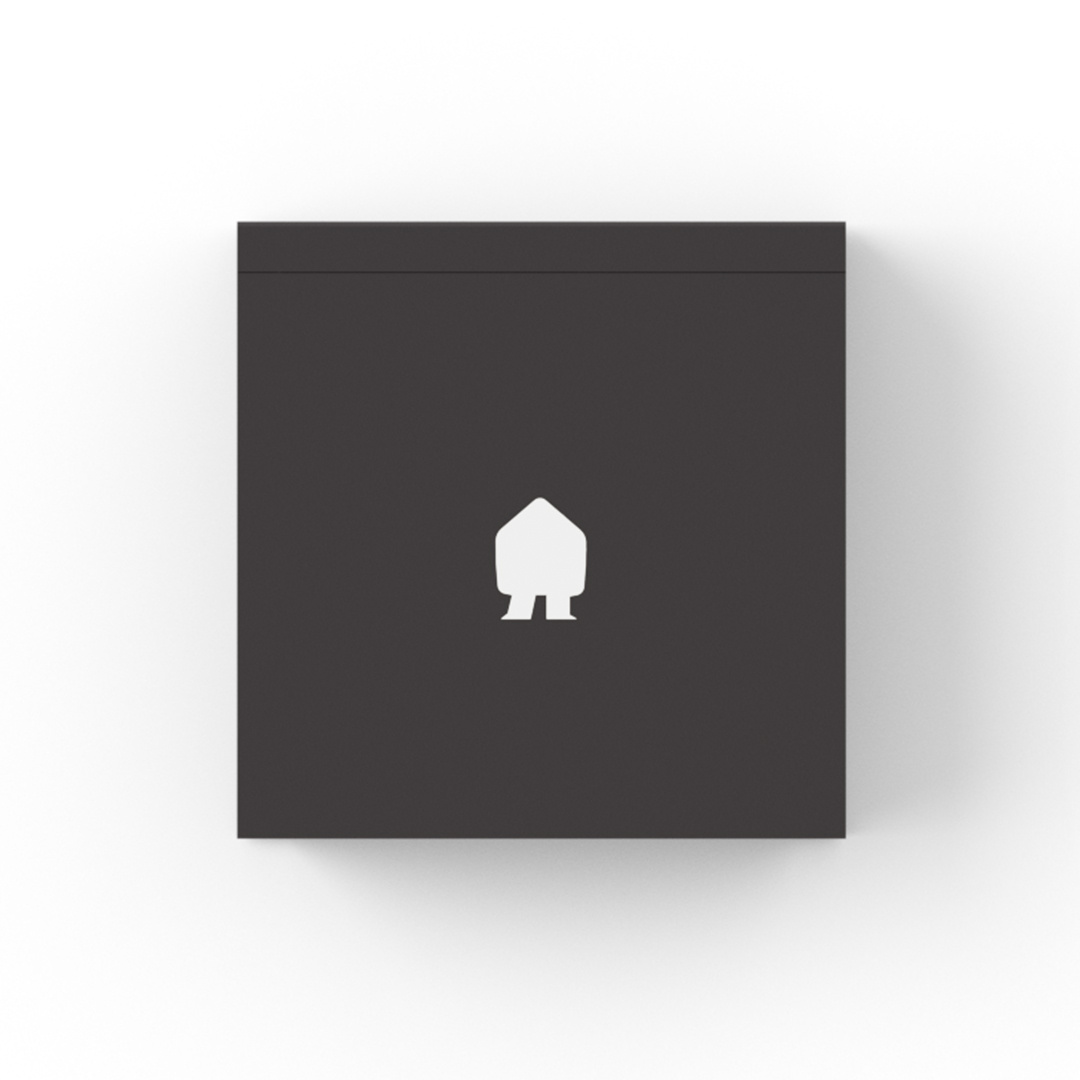

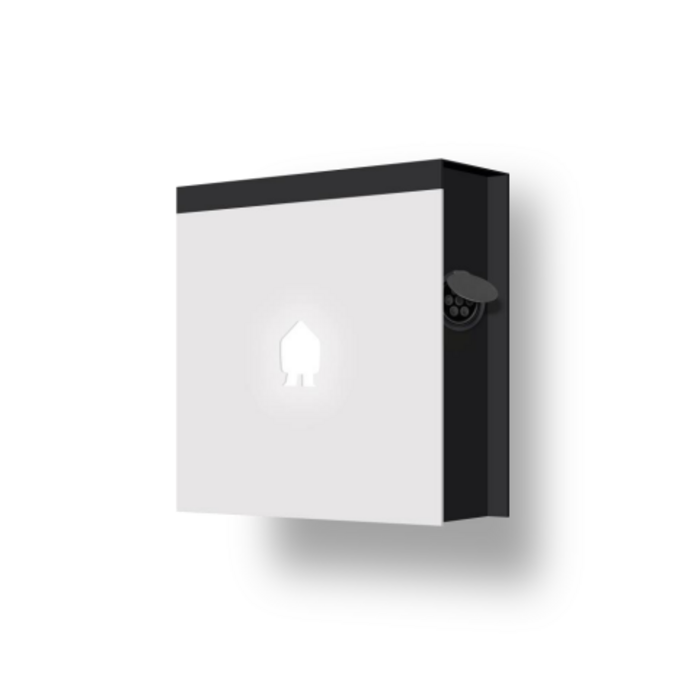

Smappee EV Wall - Type 2 - Socket - 22 kW - 3-Phase - 32A - EV Charger
- Now with P1 connection
- With MID-certified meter
- Future-proof and up-to-date
- Taking full advantage of your dynamic energy contract
- 5-year warranty
- Does not have a display

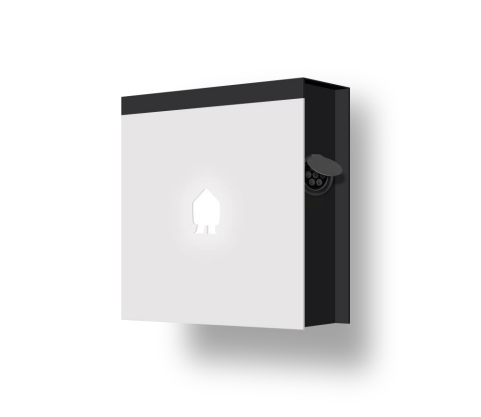

Smappee EV Wall 22 kW
The Smappee EV Wall has been updated and is smarter than ever. This high-quality wallbox combines a sleek design with the latest technology for easy, safe and efficient charging. Thanks to the standard built-in dynamic load balancing via the P1 connection, overloading of your power grid is prevented. The charger is equipped with a MID-certified energy meter for accurate consumption measurement and comes with 4G connectivity as standard, so you can connect anytime, anywhere without relying on Wi-Fi. The Smappee EV Wall can be expanded with the Smart Kit for advanced energy management and connections to solar panels. A Belgian quality product with a 5-year warranty, designed for the future of smart charging.
- This charging station is suitable for all hybrid and electric cars with a type 2 plug
- Maximum load capacity: 22 kW
- Suitable for both business and private use
- Dynamic load balancing is included as standard, which means that the wallbox automatically takes into account the power consumption of the household/business to prevent overloading.
- MID-certified energy meter included
- To be linked to your dynamic energy contract
- Can be connected to your solar panels

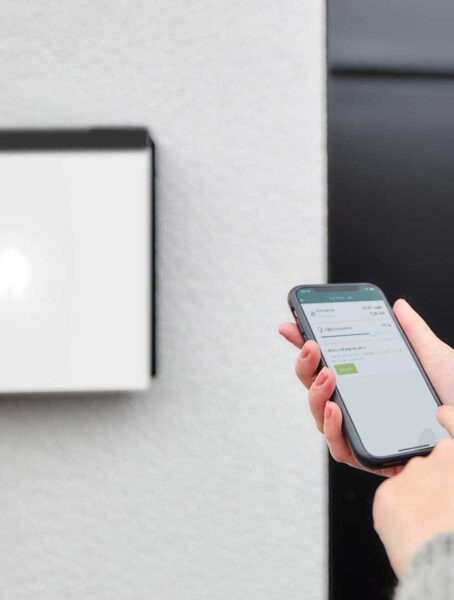

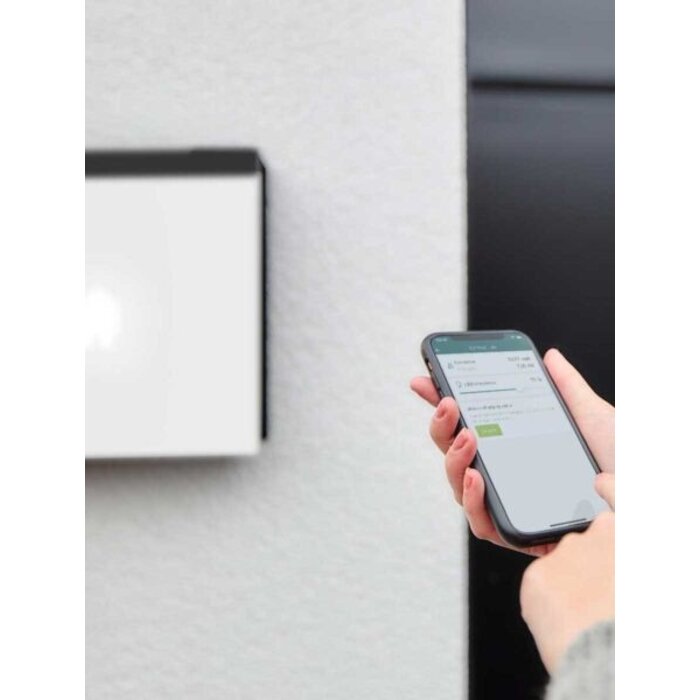

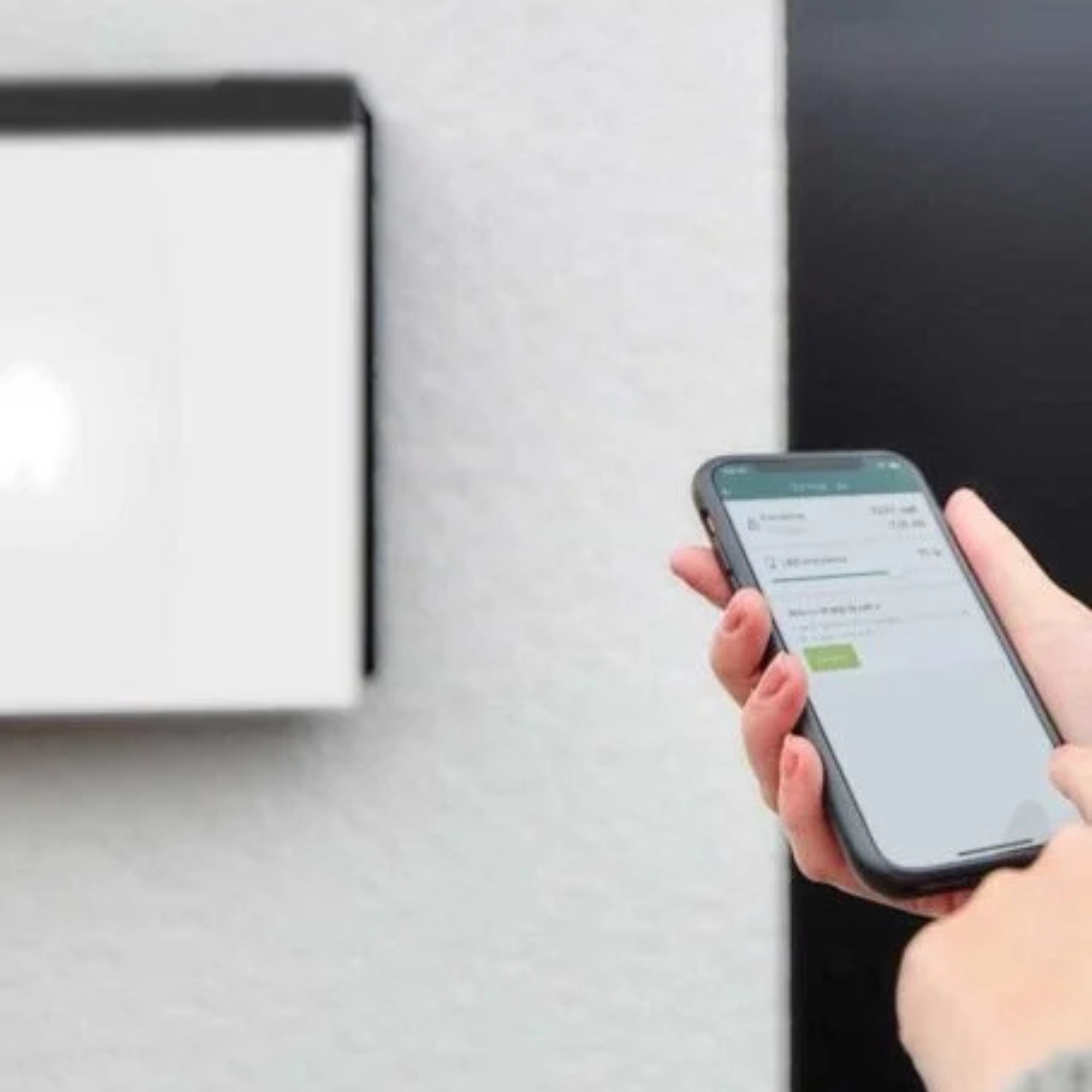

- Free Smappee APP; this app allows you to remotely control and monitor/read your Smappee EV Wall charging station. The app offers the following functions:
- Gain insight into your charging session and check the charging speed.
- Track your charging history
- Get a clear overview of your entire energy management
- Scan and charge: Other users can also use the EV Wall by scanning the QR code. The QR code can be scanned within the Smappee app.
- This charging station is equipped with a socket outlet for a Type 2 connector
- Includes DC 6mA residual current protection, as well as protection against over- and underload, overheating, and short circuits
- Plug & Charge or authorization via RFID security to prevent unauthorized use
- LED status indicator: The charging status is shown via the RGB LED display at the top of the Smappee EV Wall. The various status indications can be found in the user manual
- Communication protocol Central System: OCPP 1.6 JSON, ready for update to OCPP 2.0.1
- 4G-connectivity
- Weight: 12,4 kg
- Color: RAL 9016 (Star White) + RAL 7021 (Black Grey)
- This charging station comes standard with a multilingual installation and user manual

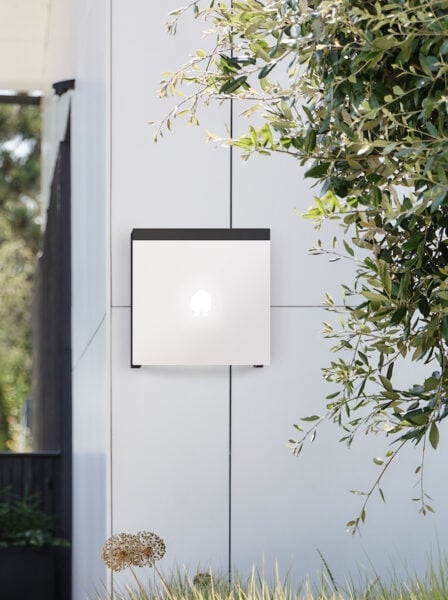

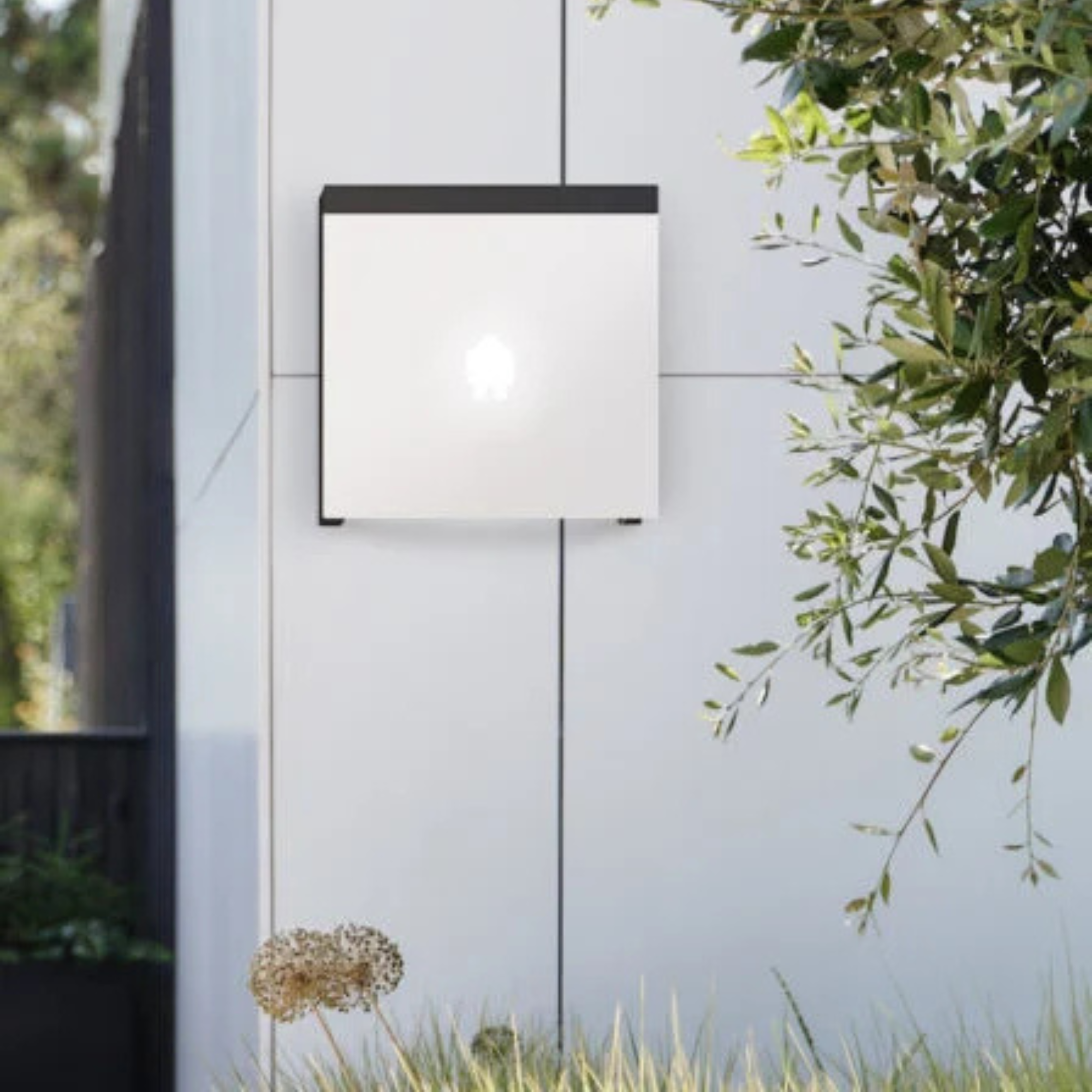

- Protection rating IP54 / IK10: Suitable for outdoor use.
- European A-grade quality; a solid and high-end product from Belgium
- Can be expanded with the Smart Kit
- 5 year warranty
- Dimensions 300 x 300 x 110 mm (h x w x d)
Smappee EV Wall charging station installation
When installing a Smappe EV Wall, you actually have 2 choices;
1) You can install the Smappee EV Wall charging station yourself.
2) Let a charging station-installer install it.
In general, we always recommend having the charge post installed by a recognised charge post installer. After all, you save on safety. This is because it is often underestimated how much is involved and mistakes can have major consequences. A certified installer has taken the necessary installation courses, often including those provided by the brand itself. Curious about the installation costs of this Smappee charging station? Contact us for a no-obligation charge post quote.
If you decide to install the charging station at home yourself, we would like to give you a few tips.
First, always use an earth leakage circuit breaker with B characteristics, which is always lower than your main connection. Secondly, you will need a power cable for this 22 kW charging station. In this case, that is a 5x6mm2 YMVK cable for inside / in conduit or a 4x6mm2 YMVK-as ground cable for outside. Dynamic load balancing can be activated via Smappee Infinity. More information about Smappee Infinity can be found here. Since it only connects via Wifi, you don't need a data cable.
Have you also checked whether you still have enough space in your fuse box? The earth leakage circuit breaker takes up 4 modules, so an expansion box is often required.
For specific charging station installation instructions, please refer to the manual(s) below.
Want to know more about this Smappee EV Wall charging station?
- Installation and user manual (in English)
- Datasheet (in English)
- EU conformity declaration
You can find the free Smappee APP here:
- Brand: Smappee
- Article number: EVWC-BR-W-P1-4G
- Plug type: Type 2
- Number of Phases: 3 Phases
- Number of Amps per phase: 32A
- Maximum payload: 22 kW
- Charging cable length: Socket
- Display: No
- RFID Security: Optional
- Charging information: By LED and APP
- Controllable via app: Yes (Zaptec APP)
- Load Balancing: Dynamic
- Connectivity: WiFi & 4G
- Connection with solar panels: Optional (Smartkit)
- Suitable for charge cards: Yes
- Automatic settlement: Yes
- Subscription: Optional
- Simcard: Optional
- Language manual: EN, NL, DE, ES & FR
- Colour(s): RAL 9016 (star-white) + RAL 7021 (black-grey)
- Weight: 4,7 KG
- Sizes (excluding cables): 300 × 300 × 110 mm (h x w x d).
- Material: Magnelis (structure), aluminium (front panel)
- Protection degree: IP54 / IK8 / UL94 5VB
- Warranty period: 5 Years
