- Up to 22 kW charging on 1-phase or 3-phase
- Integrated MID meter for accurate charging cost registration
- Automatic phase switching for optimal solar charging
- Full integration with SolarEdge Home and SolarEdge ONE
- RFID, OCPP and mobile connectivity via integrated eSIM
- No Type 2 charging cable included
- The most advanced solar and energy management functions are available when combined with a SolarEdge system
- Plug & Charge via ISO 15118 is prepared, but depends on the vehicle and supported software

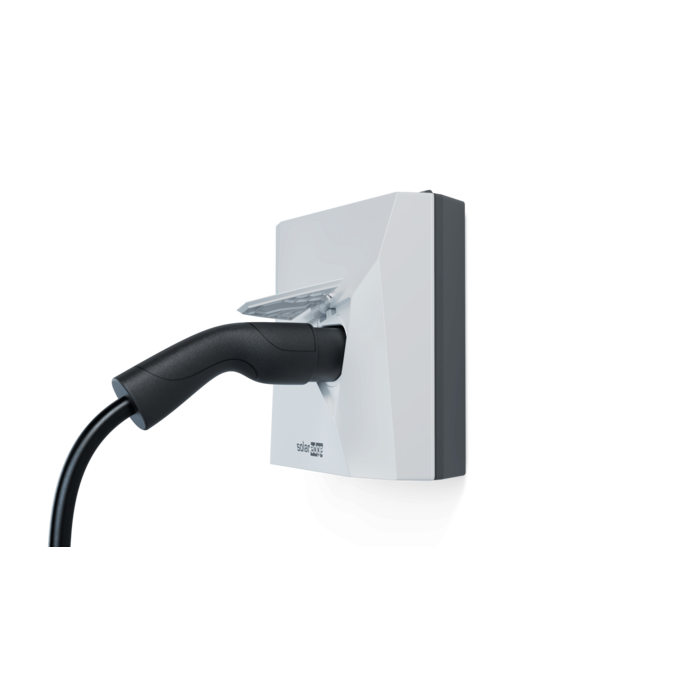

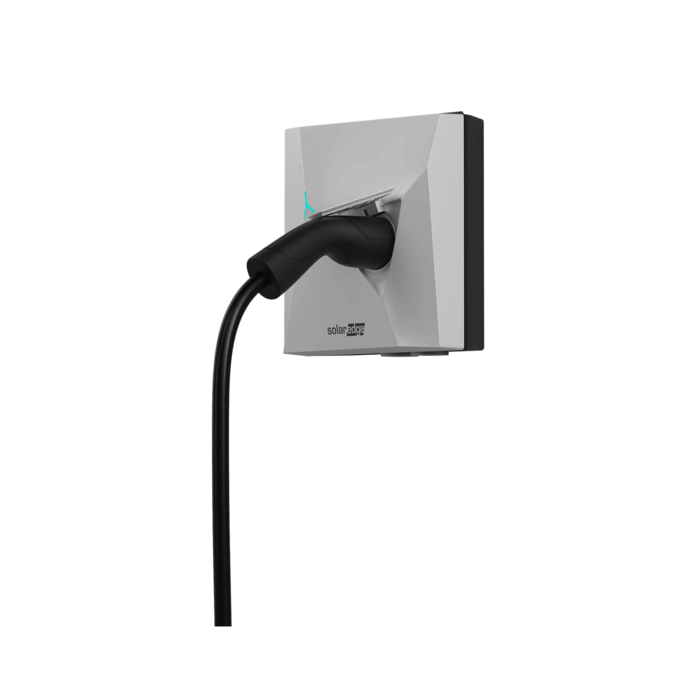

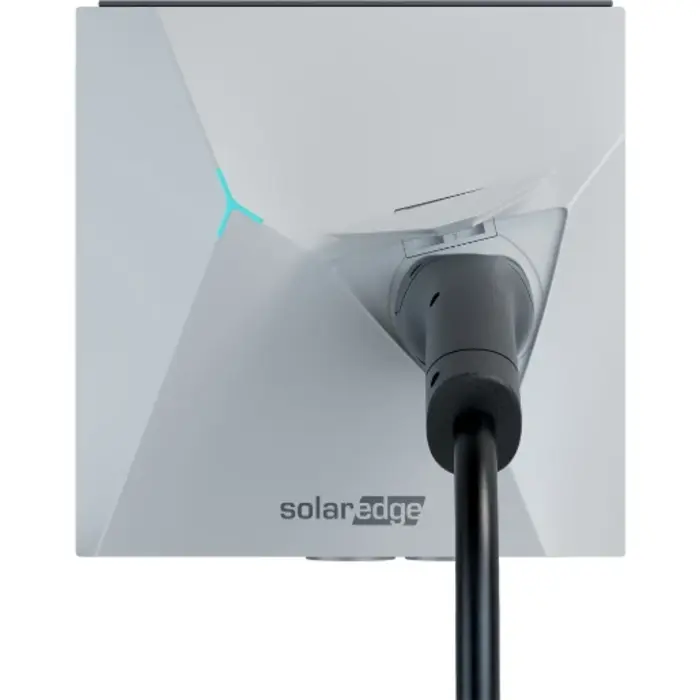

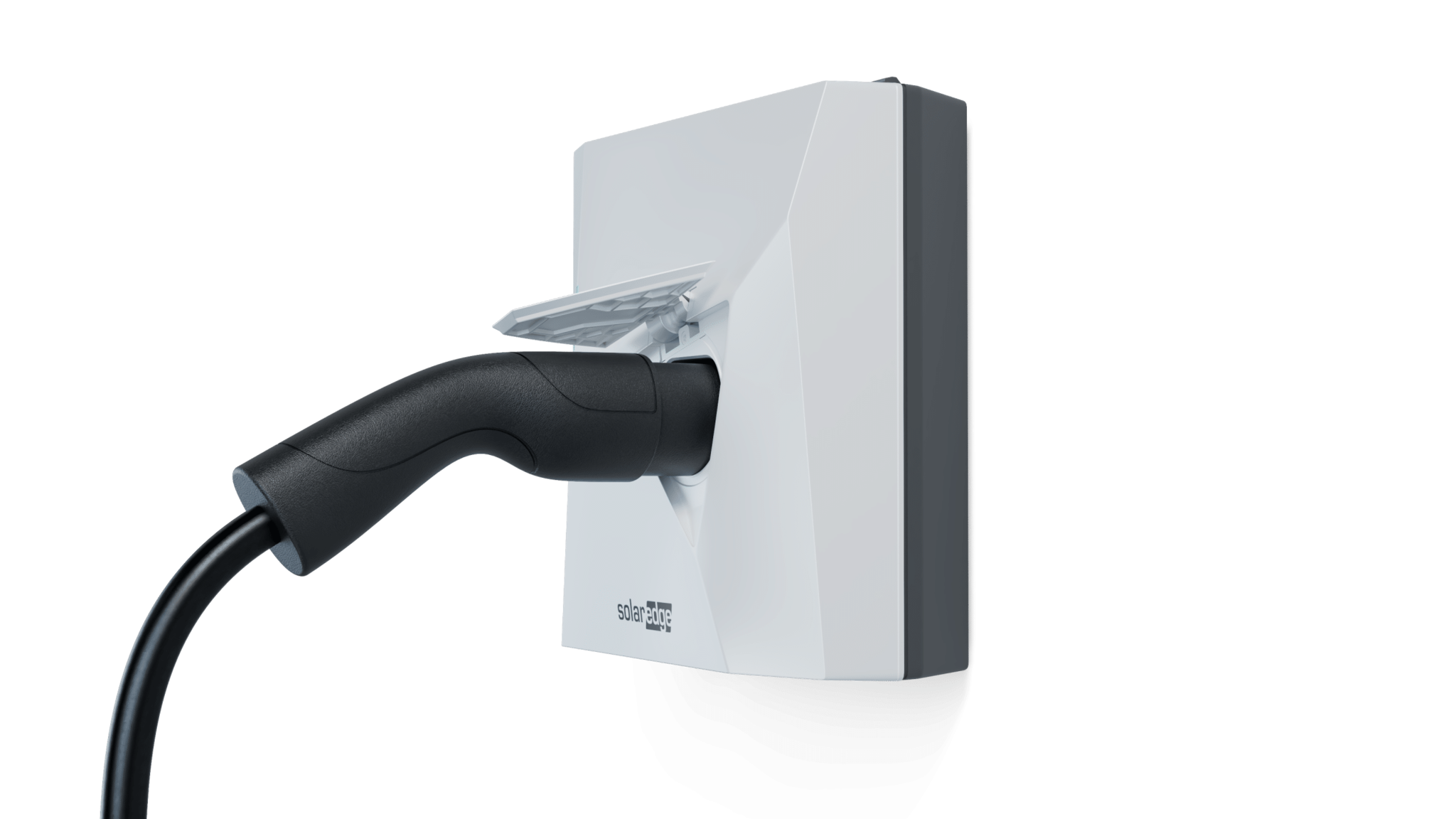

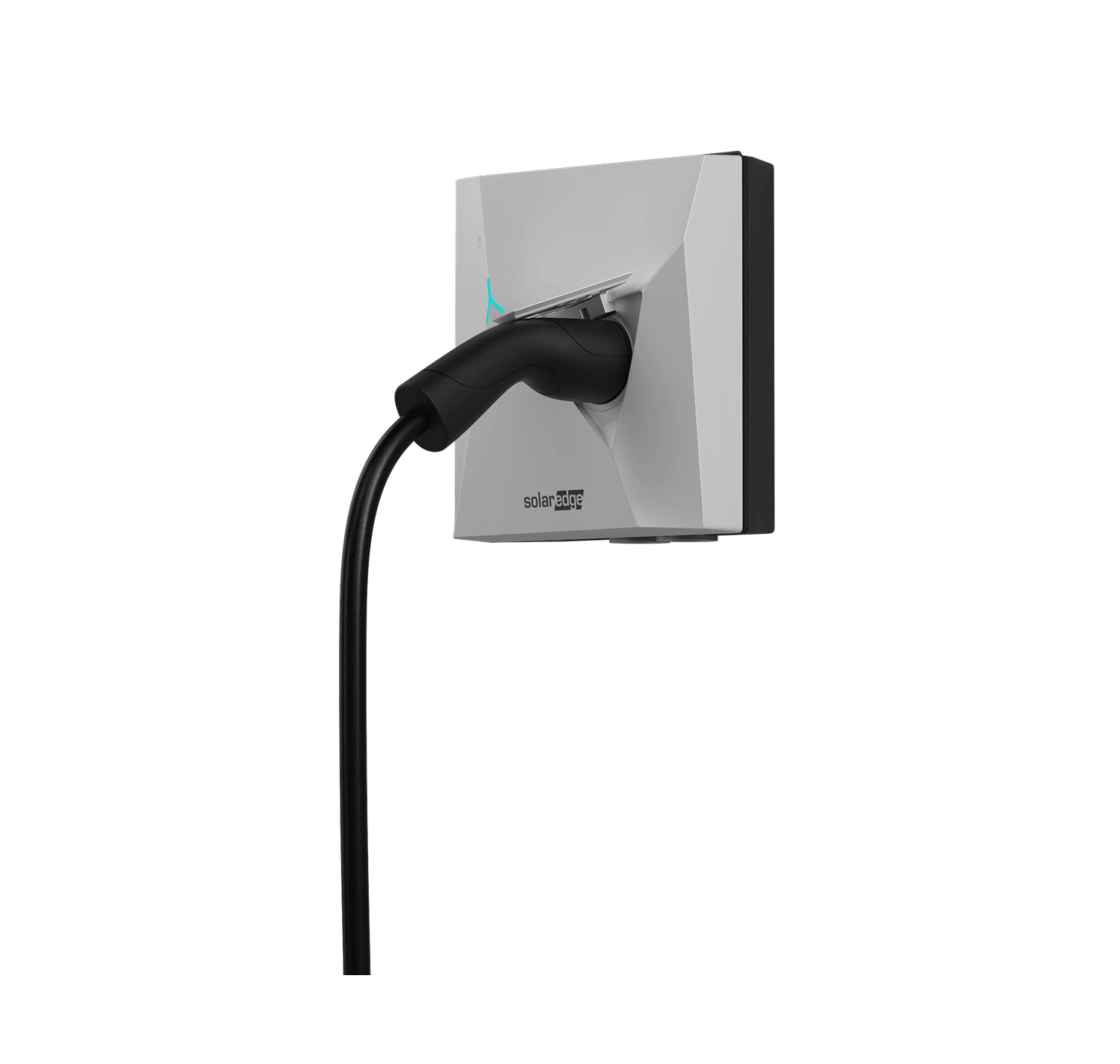

The SolarEdge ONE EV Charger Pro is a smart EV charger with a Type 2 socket and a maximum charging power of 22 kW. The wallbox can be connected to both 1-phase and 3-phase installations and is suitable for home charging, business charging locations and charging cost reimbursement.
In combination with a SolarEdge energy system, the charger can automatically charge using surplus solar power. The wallbox takes solar production, household energy consumption, the grid connection and dynamic electricity tariffs into account. Thanks to automatic phase switching between 1-phase and 3-phase, efficient charging is also possible when less surplus solar power is available.
The Pro version features an integrated MID-certified energy meter, RFID reader and mobile connectivity via a built-in eSIM. Thanks to OCPP, the charger can be connected to various back-office and charging management platforms. The wallbox is also prepared for Plug & Charge via ISO 15118. Availability depends on a compatible vehicle and supported software.
- Suitable for all hybrid and electric cars with a Type 2 connector.
- Adjustable charging power on both 1-phase and 3-phase connections.
- Maximum charging power: 22 kW on 3-phase.
- Maximum charging power on 1-phase: 7.4 kW.
- Suitable for both business and private use.
- Equipped with a Type 2 socket.
- A separate Type 2 charging cable is not included as standard.
- Electronic cable locking; prevents the charging cable from being removed during charging.
- Dynamic load balancing; the wallbox automatically takes the electricity consumption of the home or business into account to prevent overloading.
- Full integration with the SolarEdge Home and SolarEdge ONE energy system.
- Control and monitoring via the mySolarEdge App.
- Start and stop charging sessions remotely.
- Set charging schedules based on the desired departure time and electricity tariffs.
- AI-powered charging optimisation; takes solar production, energy consumption and electricity prices into account.
- Suitable for smart charging during favourable dynamic electricity tariffs.
- Integrated MID-certified energy meter.
- Suitable for recording and reimbursing business charging costs.
- Authentication via RFID, app, Plug & Play or ISO 15118.
- Plug & Charge via ISO 15118; a compatible vehicle is automatically recognised after connection.
- Manage up to 3 SolarEdge EV chargers per residential location.
- Suitable for business charging locations with chargers from different brands.
- WiFi, Ethernet and Bluetooth connectivity.
- Protection against overloading, overheating and electrical faults.
- LED status indicator on the front of the wallbox.
- Dimensions: 23.5 x 23 x 10.7 cm (H x W x D).
- Weight: approximately 2.3 kg.
- Made of white plastic.
- Quick wall mounting.
- The power cable can be routed through the top, bottom or rear.
- IP54 / IK10 protection rating: suitable for outdoor use.
- Operating temperature from -30°C to 50°C.
- 3-year product warranty.
