Pros and cons
- Lightweight

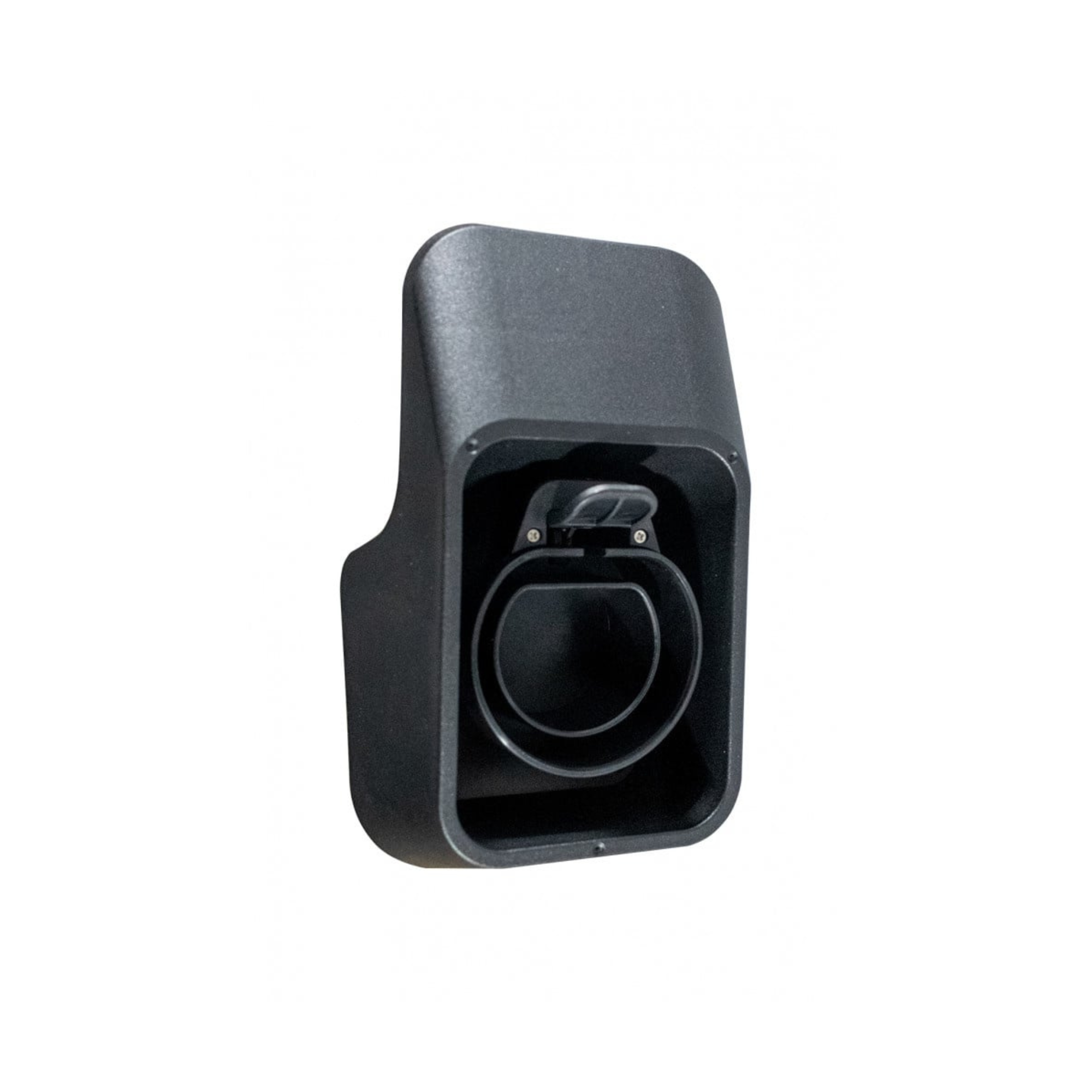

- Deluxe plug holder fits on the pole
- Suitable for all Ratio wallboxes
- Easy to assemble, due to the pre-drilled holes
- Very competitively priced
- Standard plug holder does not fit on the pole
DescriptionRead moreRead less

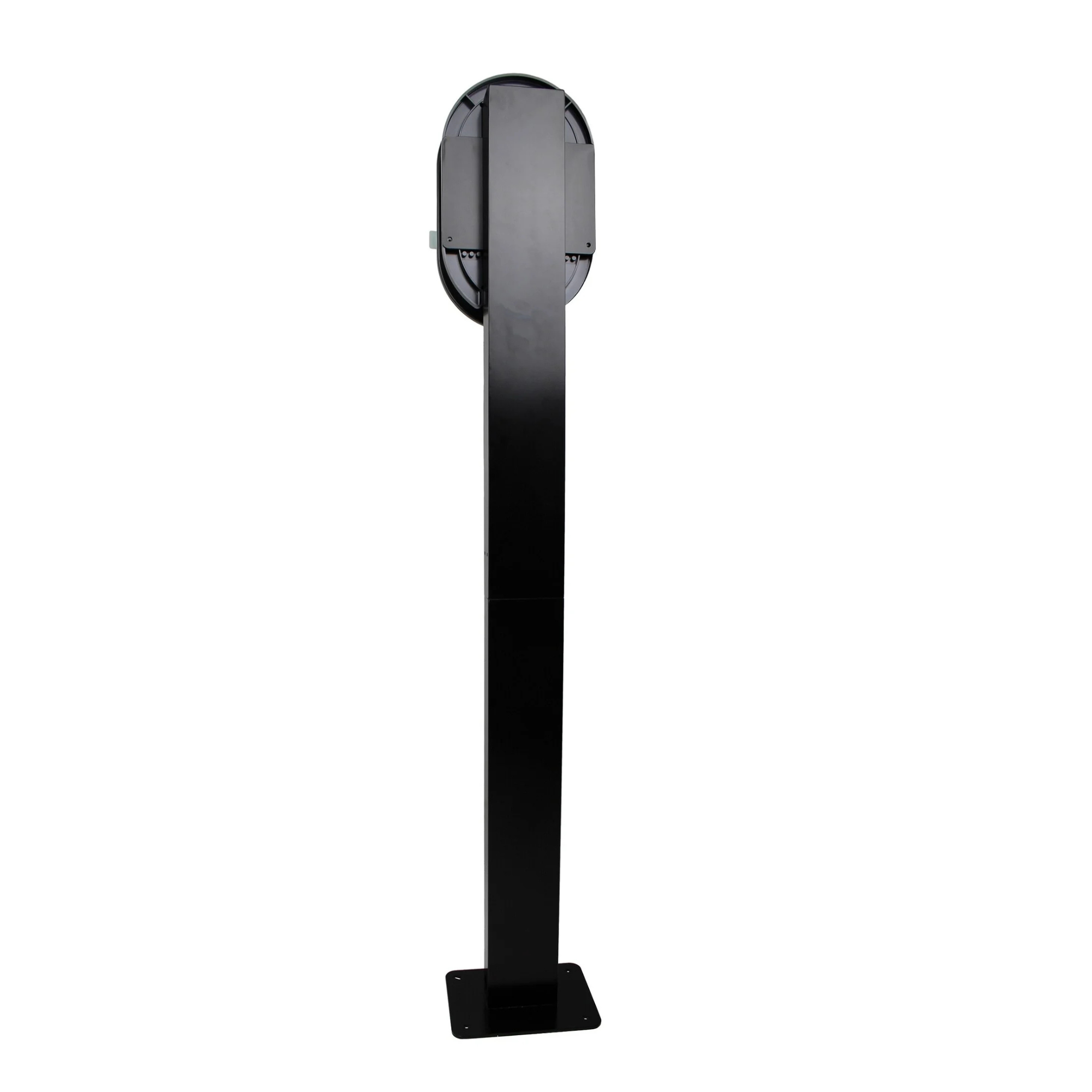

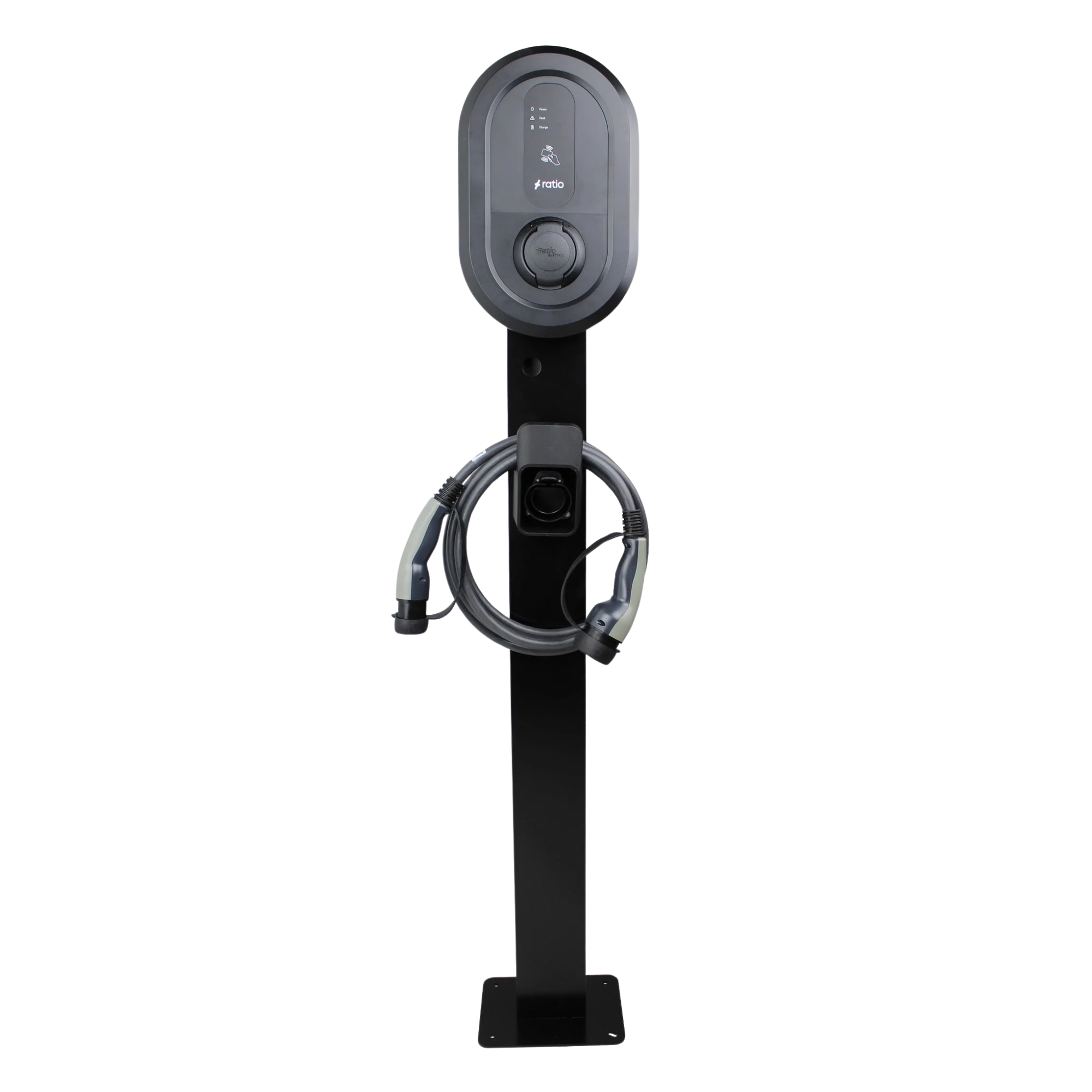

Standing pole for Ratio wallboxes
This matt black mounting post is for Ratio EV chargers only. Easy to mount on a concrete base or large tile. Equipped with pre-drilled holes for 1 or 2 charging station(s). The pole is 149 cm long and only 8 KG. Multiple power cable outputs.
- This mounting post is only for Ratio charging stations.
- All-metal post with matt black coating.
- The black coating ensures long life of the post and a sleek design.
- Contains a hole under the attachment points for the power cable.
- Power cable can be fed through a hole above the base or through the pole itself at the bottom.
- Foot has 4 attachment holes.

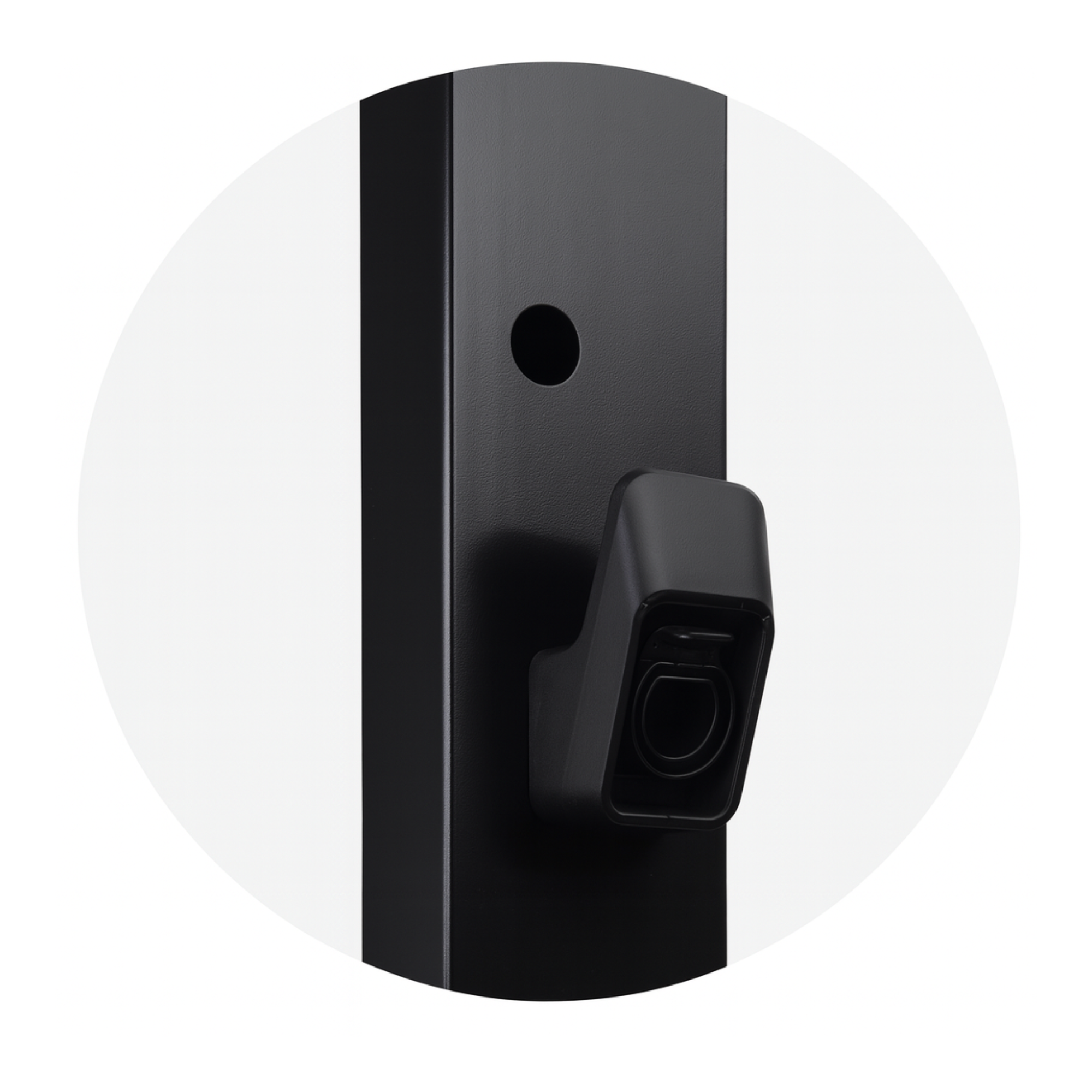

- Provided with fixing holes for a deluxe plug and charging cable holder.

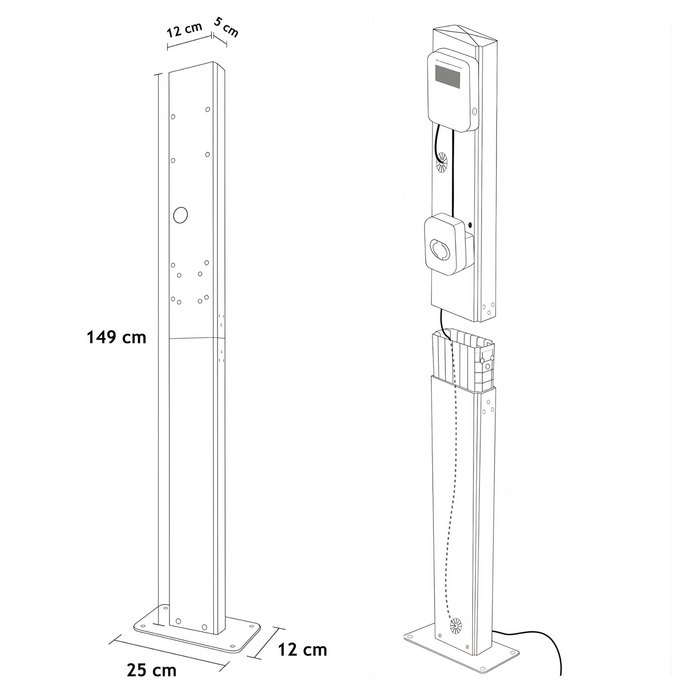

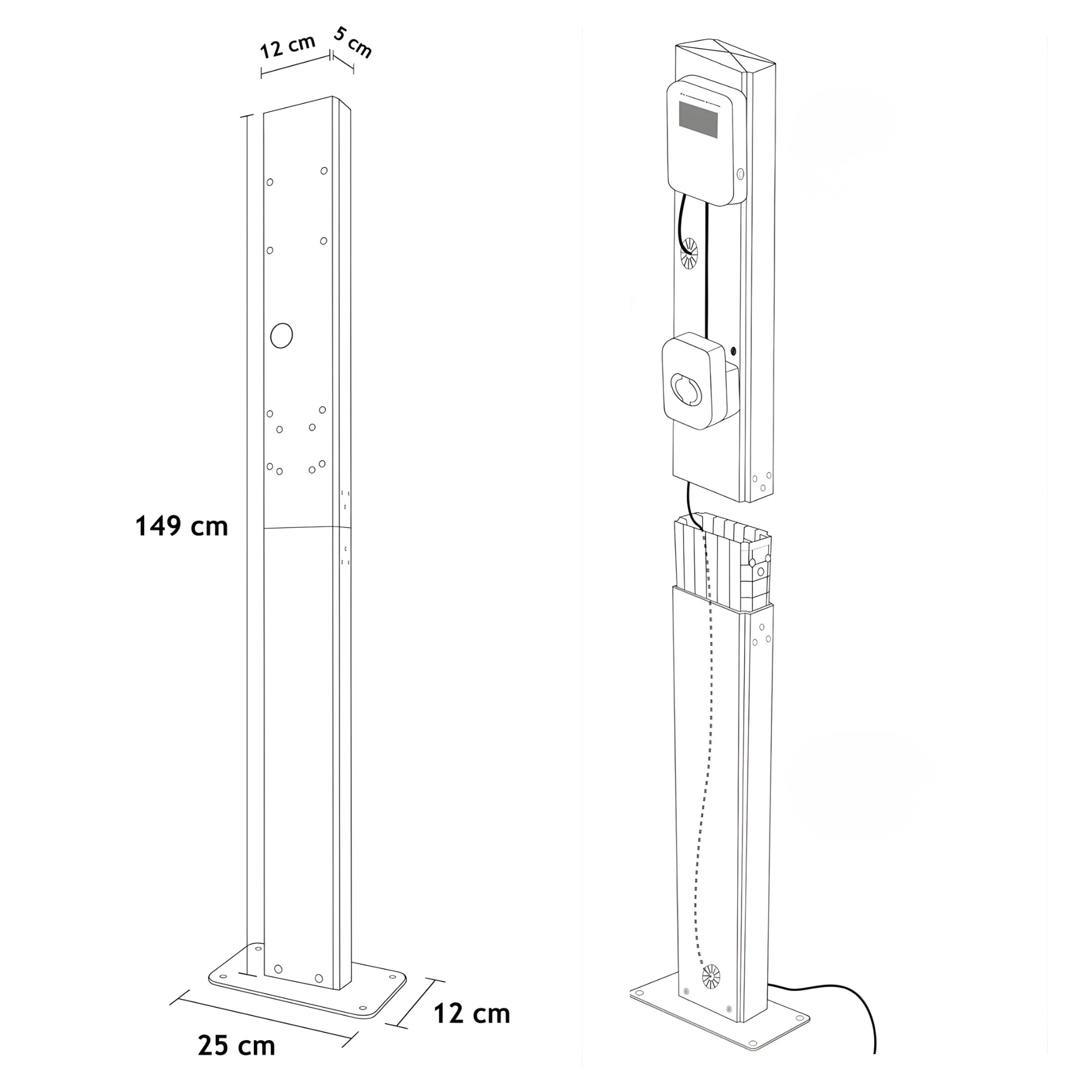

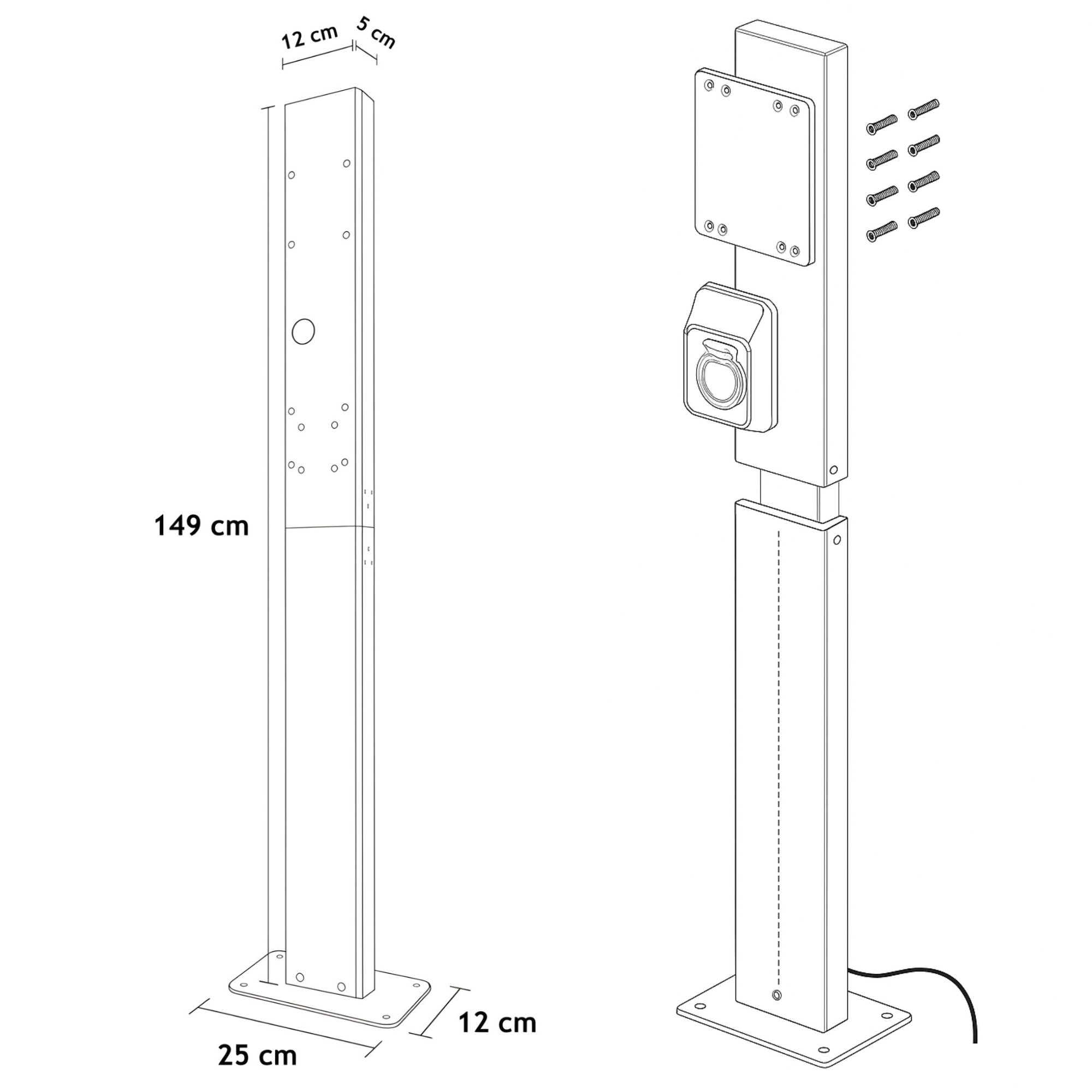

- Total length: 149 cm
- Dimensions column: 12 x 5.5 cm.
- Dimensions foot: 19 x 25 cm
- The pole consists of 2 parts of 79 and 77.7 cm, which slide over each other.

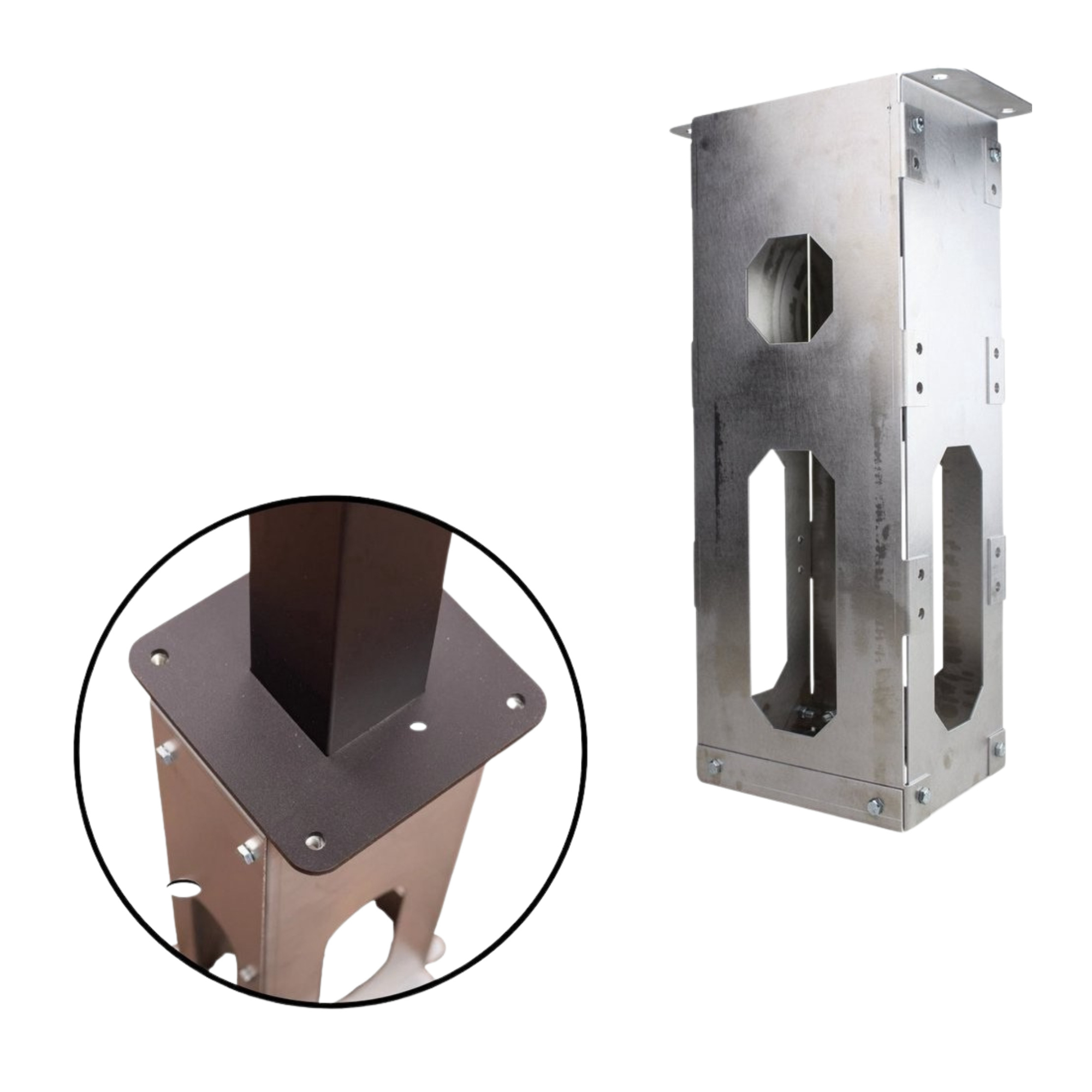

- This fixing post should be placed on a concrete block, concrete base or large tile of at least 70x70 cm.

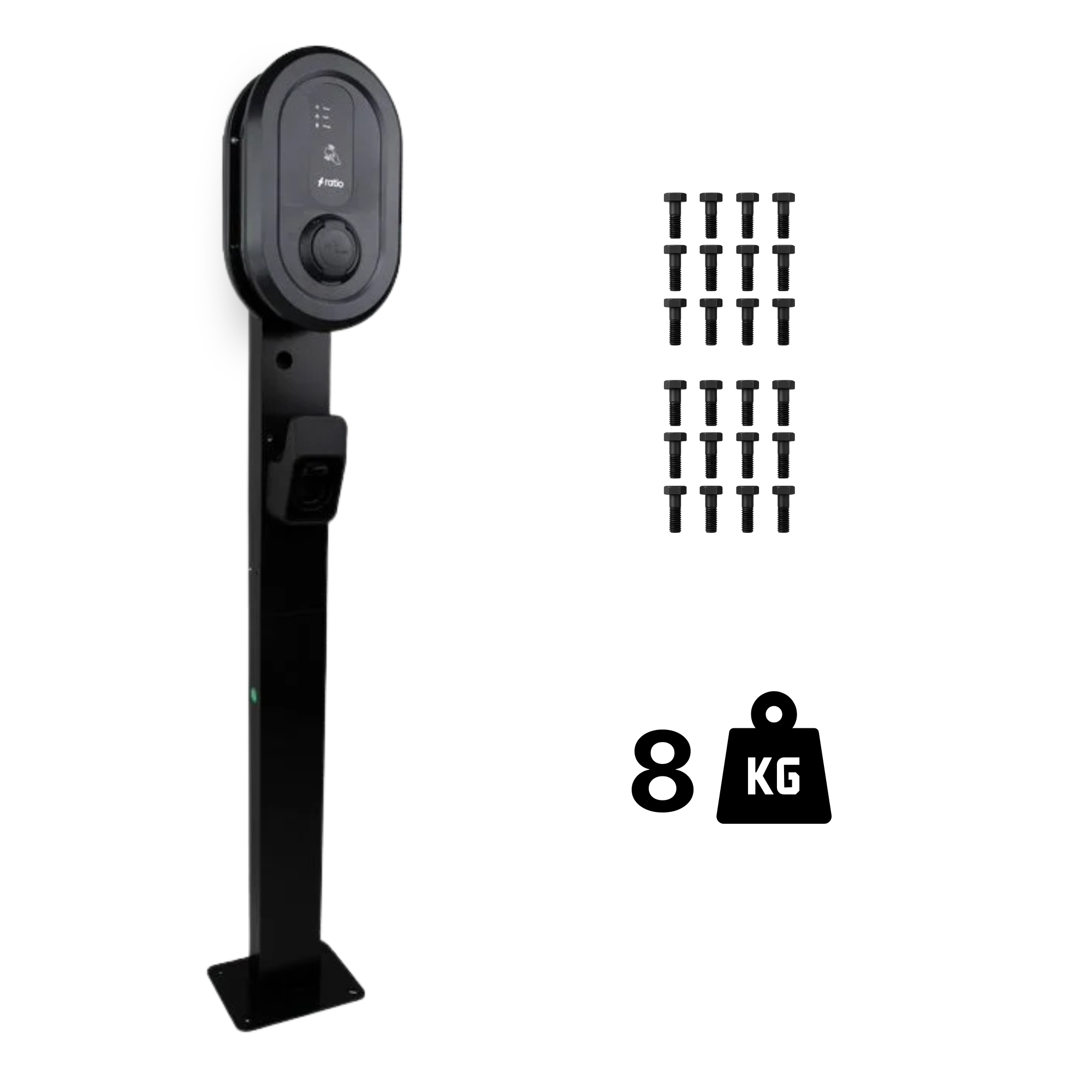

- Weight: 8 KG
Related products
Reviews
Add your review
5/5
Stef
De montagepaal werd snel geleverd en was compleet. Na plaatsing voelt alles sollide aan. Gewoon een goede montagepaal
Posted on 23/12/2025Sven
De paal voelt degelijk en is netjes afgewerkt. Hij staat nu al even buiten en tot nu geen problemen.
Posted on 23/12/2025Daan
Ik wist dat de laadplek een vaste plek moest worden. Dan wil je geen halve oplossing. Deze montagepaal Voelt als een vaste installatie, het staat stevig en logisch opgesteld. Met deze paal kun je je laadplek perfect inrichten.
Posted on 23/12/2025Specifications
- Brand: Ratio Electric
- EAN: 7440847439466
- Article number: LDY-POLE-RATIO
- Usage: Suitable for 1 or 2 Ratio wallbox(es)
- Sizes: 149 x 12 x 5,5 cm (h x w x d)
- Sizes fixing plate: 19 x 25 cm
- Weight: 8 KG
- Colour(s): Black
- Material: Metal with black coating
