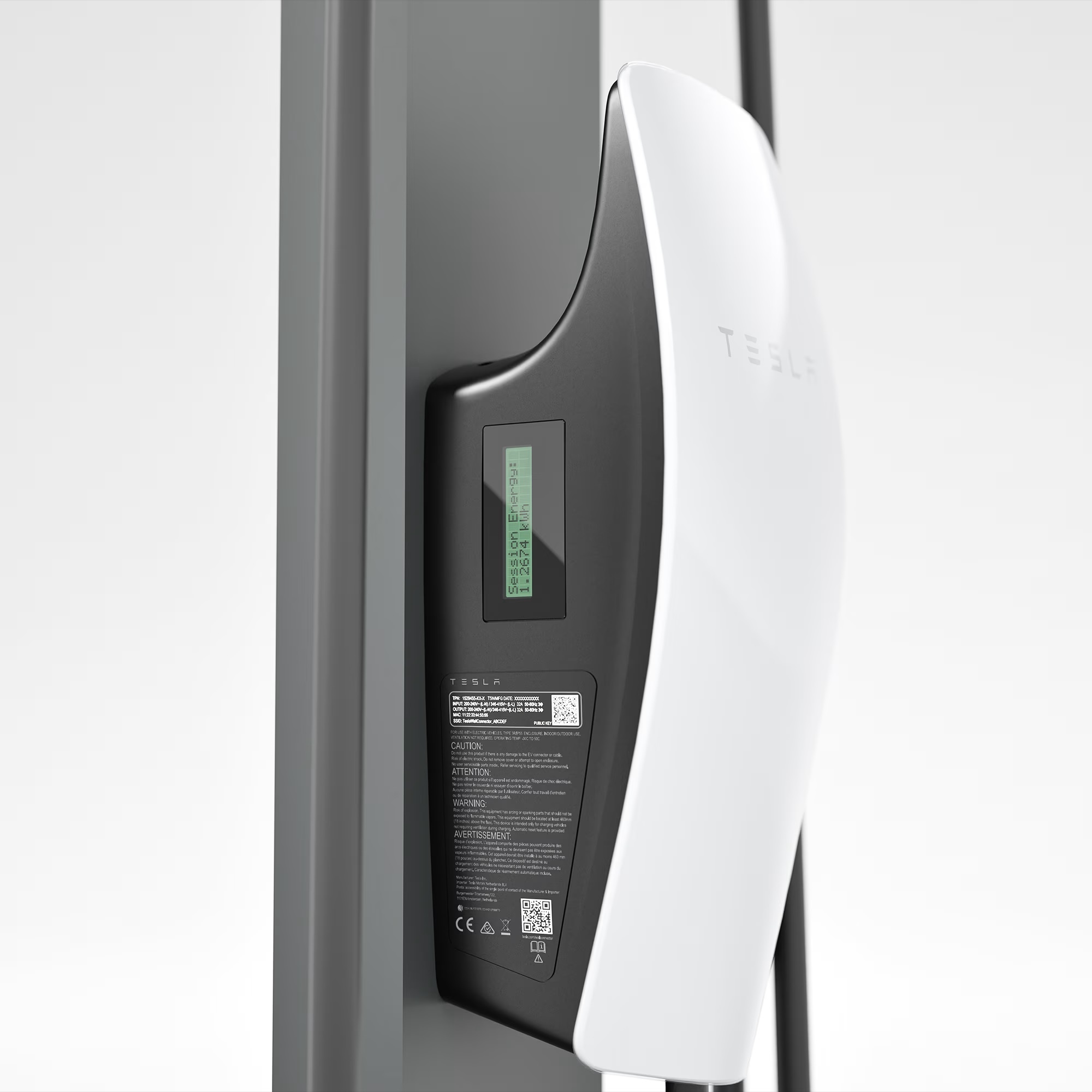

Tesla Wall Connector Gen 3

The Tesla Wall Connector Gen 3 is the newest original Tesla charging station. This charging station is equipped with a charging capacity of up to 22 kW and a 7,3 meter cable with type 2 plug. It can be controlled anytime and anywhere online via Wi-Fi using the free Tesla APP. The Tesla Wallbox is suitable for wall and pole mounting. This original Tesla charger is a great add on to your Telsa!

• This wallbox is suitable for all hybrid and electric cars with a type 2 plug.
• Maximum charging capacity: 22 kW / 3 x 32A
• Suitable for business, private and public use.
• Free Tesla APP; this app allows you to remotely control and monitor/read your Tesla Wallbox. Via the app, you can use the following features, among others:
  - Gain insight into your charging session and monitor speed
  - Track your charging history
  - Lock the cable in the charger
• This wallbox has a 7.3 meter long charging cable with a type 2 plug. Compatible with every electric car equipped with a type 2 socket
• LED status indication; the charging status is displayed via the LED on the front of the Tesla wallbox.
• Wi-Fi 2,4 GhZ connectivity.
• Dimensions: 34.5 x 15.5 x 11 cm
• Weight: 6.8 KG
• Made of plastic in the colour white
• This wallbox comes with a multilingual installation and user manual as standard.
• Wall and pole mounting possible.
• Degree of protection IP55: suitable for outdoor use
• A-quality from Tesla.
• 3-year warranty.

Telsa Wallbox installation

When installing a Tesla EV Charger, you actually have 2 choices;
1) You can install the Tesla wallbox yourself
2) Let a charging station-installer install it
In general, we always recommend having the charging station installed by a recognised charging station installer. After all, you don't want to compromise on safety and knowledge. People often underestimate how much is involved and mistakes can have major consequences. A recognised installer has completed the necessary installation courses, often including those provided by the brand itself.
If you decide to install the charging station at home yourself, we would like to give you a few tips.
First, always use an earth leakage circuit breaker with B characteristics, which is always lower than your main connection. Secondly, you will need a power cable for this 22 kW charging station. In this case, that is a 5x6mm2 YMVK cable for inside / in conduit or a 4x6mm2 YMVK-as ground cable for outside.

Have you also checked whether you still have enough space in your fuse box? The earth leakage circuit breaker takes up 4 modules, as does the Tibber pulse, so an expansion box is often required.
For specific charging station installation instructions, please refer to the manual(s) below.

Want to know more about the Tesla Wall Connector Gen 3?
- Installation manual (In English)
- Datasheet (In English)
- Tesla Wall Connector app registration (In English)

You can find the Tesla App here:
