Wave roof mounting kit for solar panels vertical Horizontal

Corrugated roof mounting kit Solar panels
Suitable for horizontal (landscape) placement.

A complete set for mounting solar panels on a corrugated roof.
The mounting set is suitable for panels with a thickness of 35mm.
For horizontally placed panels we assume a panel width up to 2.00 and height up to 2.5 meters.
The maximum length of the rails is 4 meters. If the set is wider, additional connectors can be ordered.
The set consists of the following components:

• Rails for placing the solar panels.
• Attention! The roof rails are delivered in full length.
• You have to cut them to size yourself.

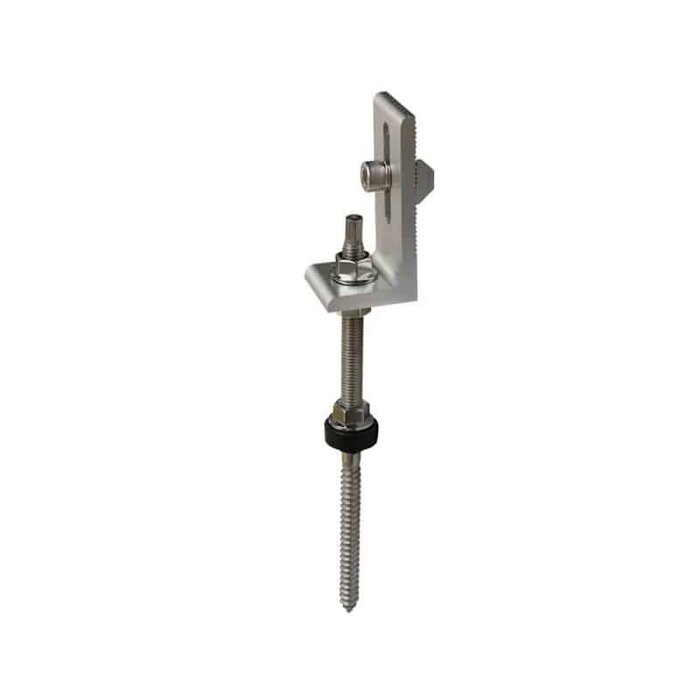

• Pole screws
• Bolts and nuts for connecting the hanger bolts to the rails.
• End clamps for the connection between rail and panels
• Intermediate clips for the connection between rail and panels
• Earth clamp
• Possible connectors

Corrugated roof mounting set for 1 solar panel Horizontal (landscape)

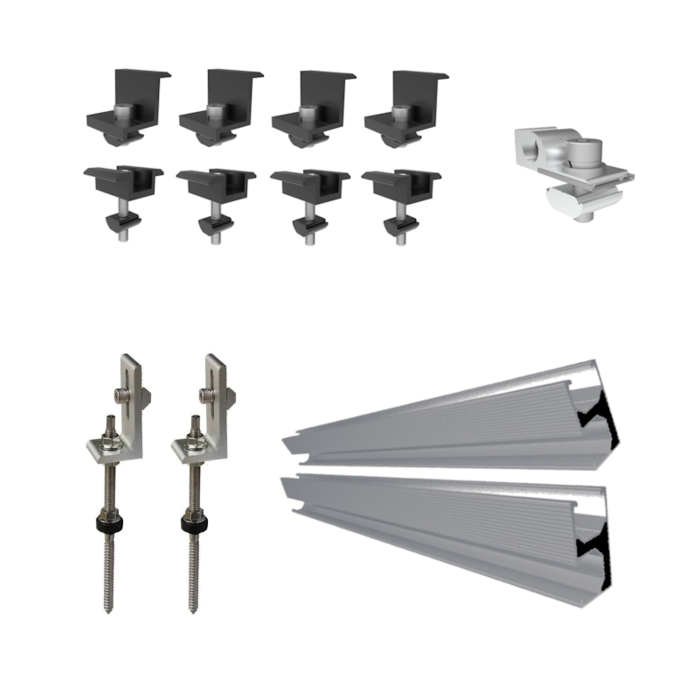

The set consists of the following parts:

• 2 roof rails of 200cm
• 4 hanger bolts
• 4 bolt sets for attaching the hanger bolts to the roof rails.
• 4 end clamps
• 1 earth clamp

Corrugated roof mounting set for 2 solar panels Horizontal (landscape)

The set consists of the following parts:

• 4 roof rails
• 8 hanger bolts
• 8 bolt sets for attaching the hanger bolts to the roof rails.
• 4 end clamps
• 2 intermediate clamps
• 2 mounting rail connections
• 1 earth clamp

Corrugated roof mounting set for 3 solar panels Horizontal (landscape)

The set consists of the following parts:

• 6 roof rails of 200cm and 4 of 320cm
• 12 hanger bolts
• 12 bolt sets for attaching the hanger bolts to the roof rails.
• 4 end clamps
• 4 intermediate clamps
• 2 mounting rail connections
• 1 earth clamp

Corrugated roof mounting set for 4 solar panels Horizontal (landscape)

The set consists of the following parts:

• 2 roof rails of 200cm and 4 of 320cm
• 16 hanger bolts
• 16 bolt sets for attaching the hanger bolts to the roof rails.
• 4 end clamps
• 6 intermediate clamps
• 4 mounting rail connections
• 1 earth clamp

Corrugated roof mounting set for 5 solar panels Horizontal (landscape)

The set consists of the following parts:

• 2 roof rails of 200cm and 6 of 320 cm
• 20 hanger bolts
• 20 bolt sets for attaching the hanger bolts to the roof rails.
• 4 end clamps
• 8 intermediate clamps
• 6 mounting rail connections
• 1 earth clamp

Corrugated roof mounting set for 6 solar panels Horizontal (landscape)

The set consists of the following parts:

• 8 roof rails of 320cm
• 24 hanger bolts
• 24 bolt sets for attaching the hanger bolts to the roof rails.
• 4 end clamps
• 10 intermediate clamps
• 6 mounting rail connections
• 1 earth clamp

Corrugated roof mounting set for 7 solar panels Horizontal (landscape)

The set consists of the following parts:

• 2 roof rails 200cm and roof rails of 320cm
• 28 hanger bolts
• 28 bolt sets for attaching the hanger bolts to the roof rails.
• 4 end clips
• 12 intermediate clamps
• 8 mounting rail connections
• 1 earth clamp

Corrugated roof mounting set for 8 solar panels Horizontal (landscape)

The set consists of the following parts:

• 10 roof rails of 320cm
• 32 hanger bolts
• 32 bolt sets for attaching the hanger bolts to the roof rails.
• 4 end clamps
• 14 intermediate clamps
• 8 mounting rail connections
• 1 earth terminal
