Wave roof mounting kit for solar panels vertical

Wave Corrugated roof mounting kit Solar panels
Suitable for both vertical (portait) and horizontal (landscape) placement.

A complete set for mounting solar panels on a corrugated roof.

The mounting set is suitable for panels with a thickness of 35mm. For vertically placed panels we assume a panel width of up to 1.05 meters.
For horizontal placement up to a panel length of 2,5 meters.

The rail length to be supplied is up to 4 meters. Should the set be wider, additional connectors can be ordered.

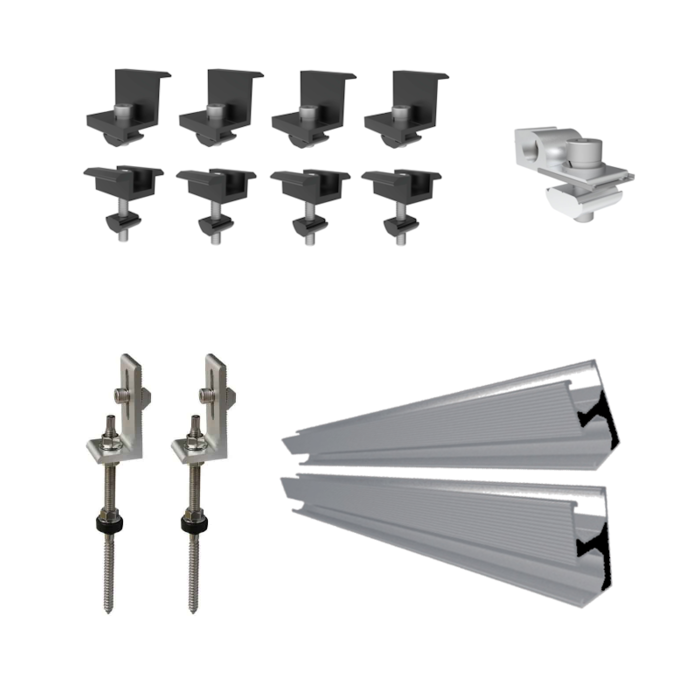

The set consists of the following components:

Rails for installing the solar panels.
Attention! The roof rails are delivered in full length.

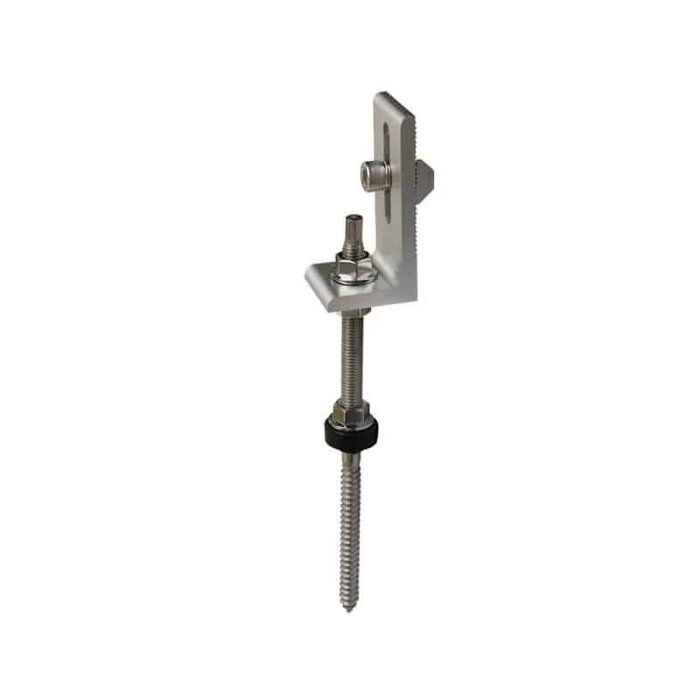

You have to cut them to size yourself.Pole screws
Bolts and nuts for connecting the hanger bolts to the rails.
End clamps for the connection between rail and panels
Intermediate clips for the connection between rail and panels
Earth clamp
Possible connectors

Wave Corrugated roof mounting kit for 1 solar panel Horizontal (landscape)

The set consists of the following parts:

2 roof rails
4 hanger bolts
4 bolt sets for attaching the strut screws to the roof rails.
4 end clamps
1 earth clamp

Wave Corrugated roof mounting set for 2 solar panels Horizontal (landscape)

The set consists of the following parts:

2 roof rails
8 hanger bolts
8 bolt sets for attaching the hanger bolts to the roof rails.
4 end clamps
2 intermediate clamps
1 earth clamp

Wave Corrugated roof mounting set for 3 solar panels Horizontal (landscape)

The set consists of the following parts:

2 roof rails
10 hanger bolts
10 bolt sets for attaching the strut screws to the roof rails.
4 end clamps
4 intermediate clamps
1 earth clamp

Wave Corrugated roof fastening set for 2 solar panels Vertical (Portrait)

The set consists of the following parts:

2 roof rails
4 hanger bolts
4 bolt sets for attaching the strut screws to the roof rails.
4 end clamps
2 intermediate clamps
1 earth clamp

Wave Corrugated roof fastening set for 3 solar panels Vertical (Portrait)

The set consists of the following parts:

2 roof rails
6 hanger bolts
6 bolt sets for attaching the strut screws to the roof rails.
4 end clamps
4 intermediate clamps
1 earth clamp

Wave Corrugated roof fastening set for 4 solar panels Vertical (Portrait)

The set consists of the following parts:

2 roof rails
8 hanger bolts
8 bolt sets for attaching the strut screws to the roof rails.
4 end clamps
6 intermediate clamps
1 earth clamp

Wave Corrugated roof fastening set for 5 solar panels Vertical (Portrait)

The set consists of the following parts:

2 roof rails
10 hanger bolts
10 bolt sets for attaching the strut screws to the roof rails.
4 end clamps
8 intermediate clamps
1 earth clamp

Wave Corrugated roof mounting set for 6 solar panels Vertical (Portrait)

The set consists of the following parts:

2 roof rails
12 hanger bolts
12 bolt sets for attaching the strut screws to the roof rails.
4 end clamps
10 intermediate clamps
1 earth clamp
