Zaptec Go - 22 kW - 3-Phase - 32A - type 2 - socket - EV Charger

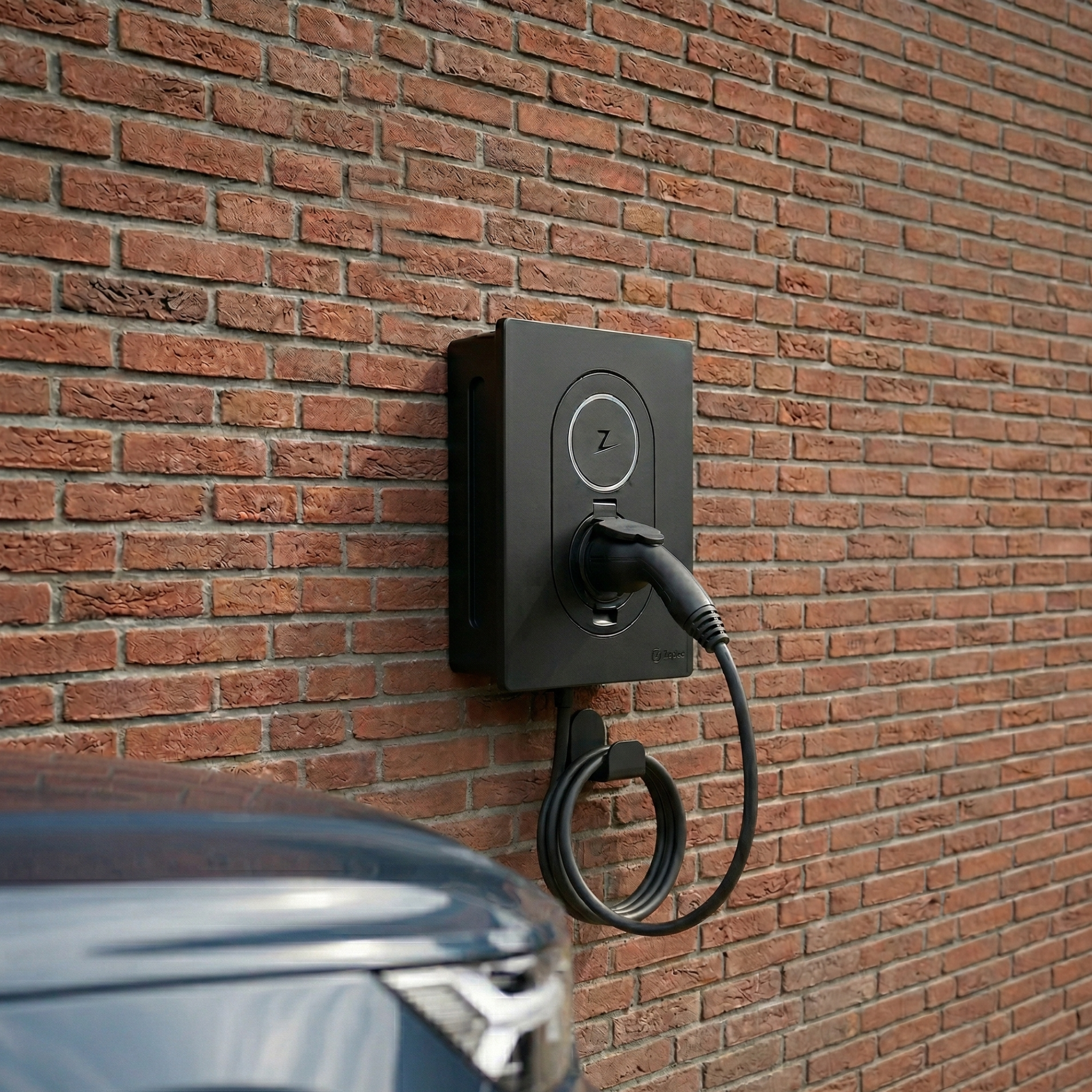

Zaptec Go

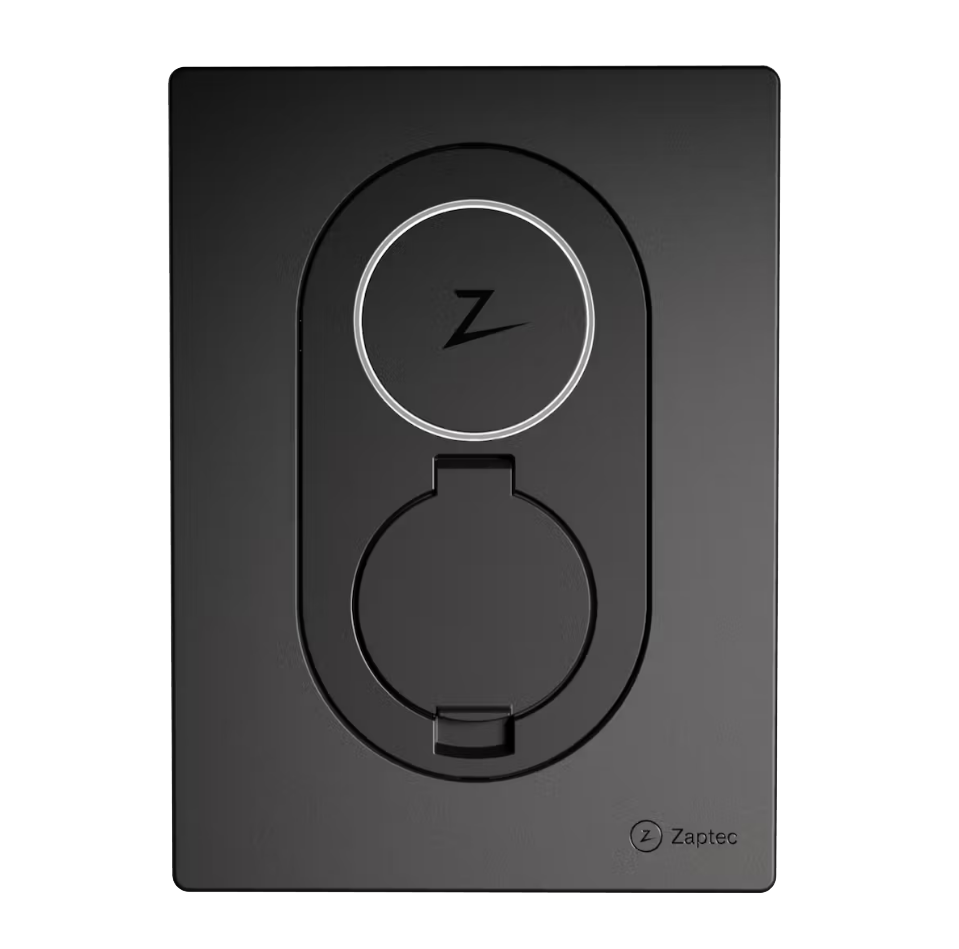

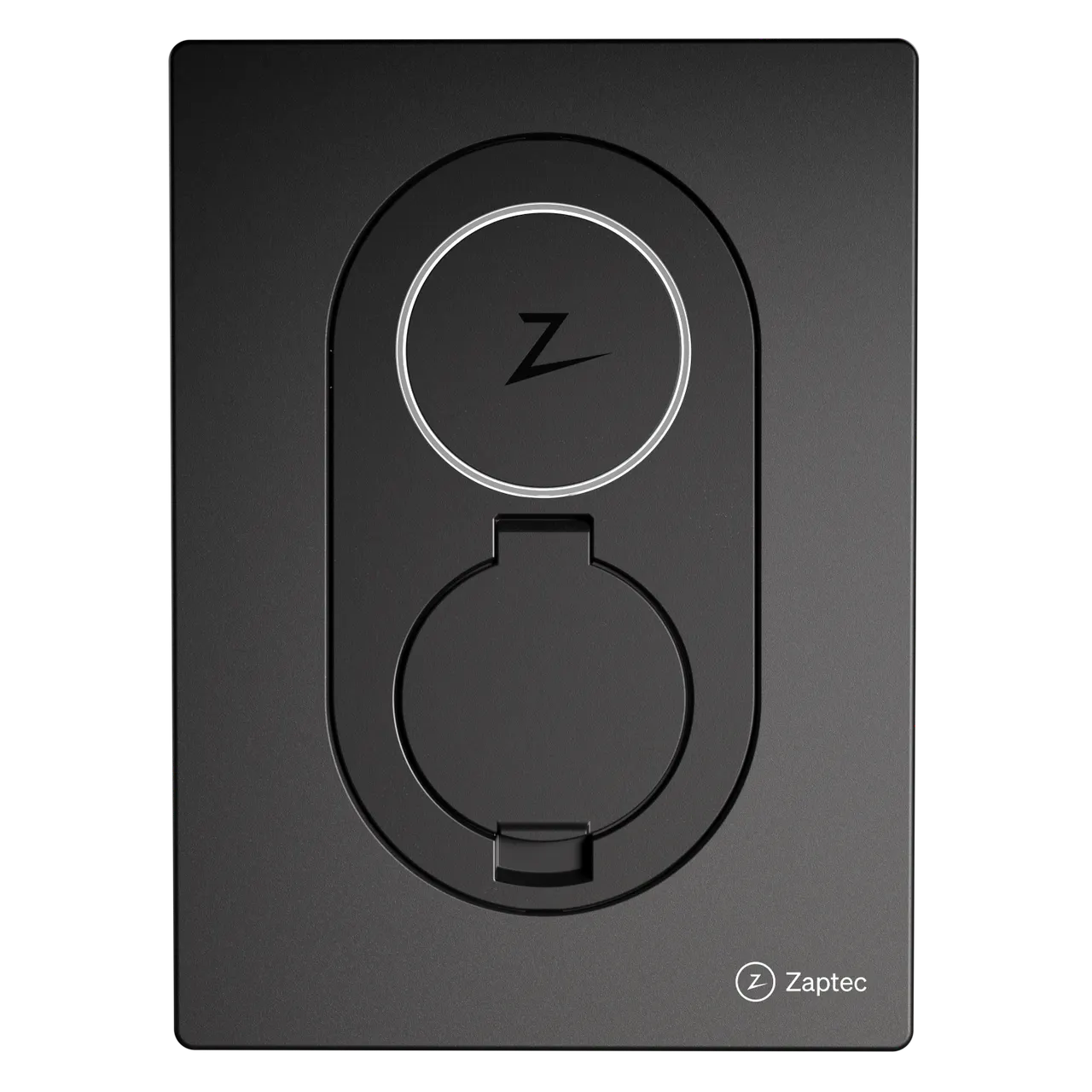

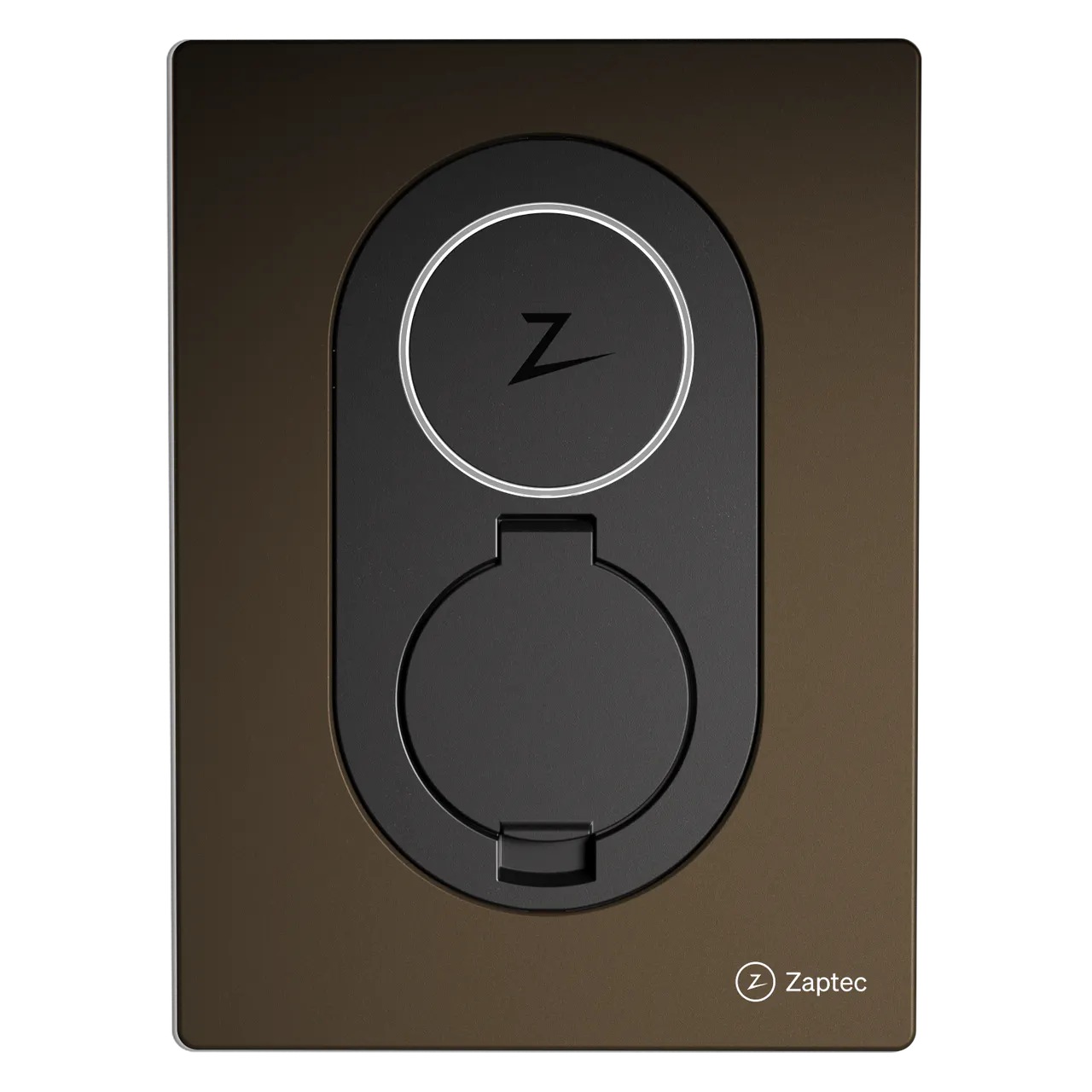

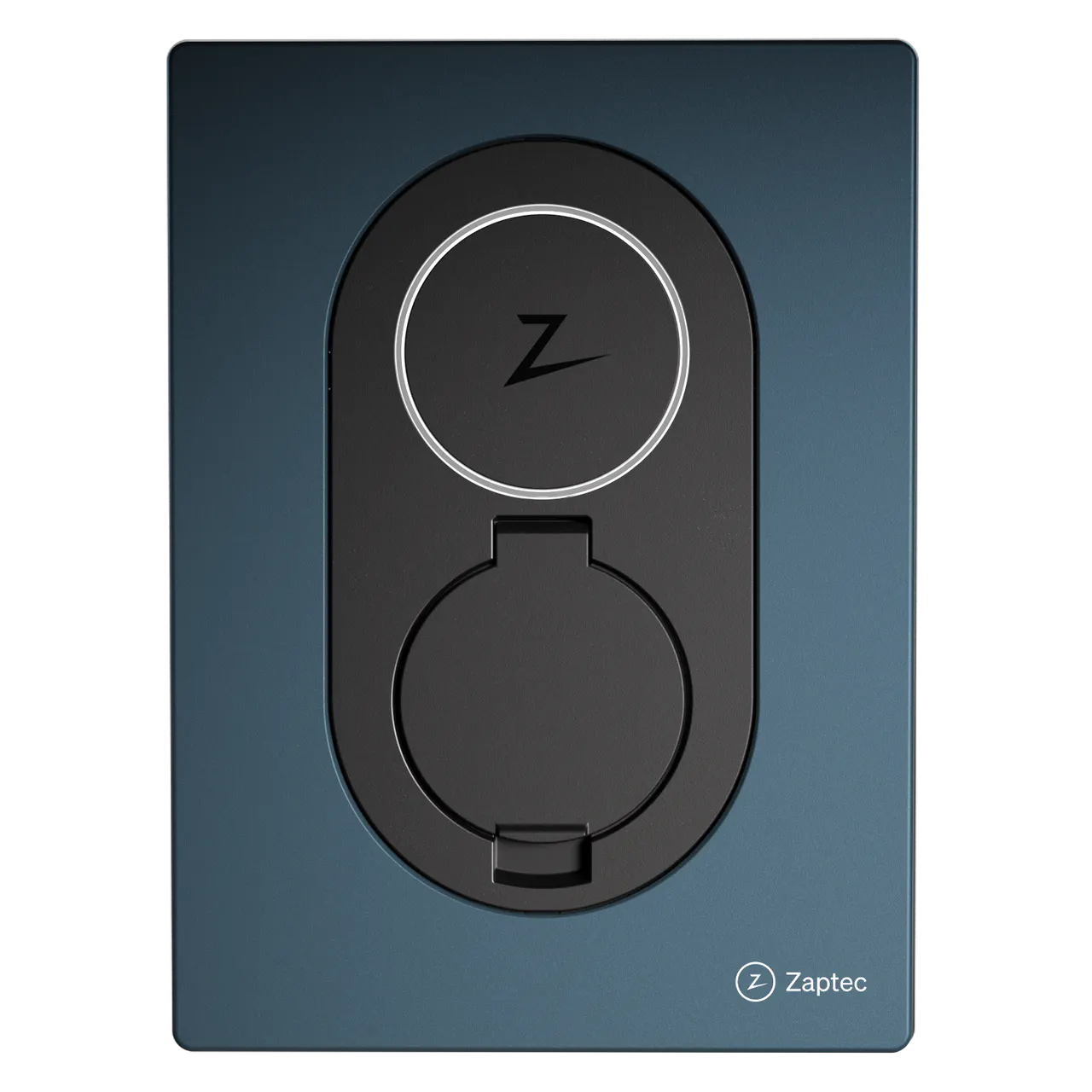

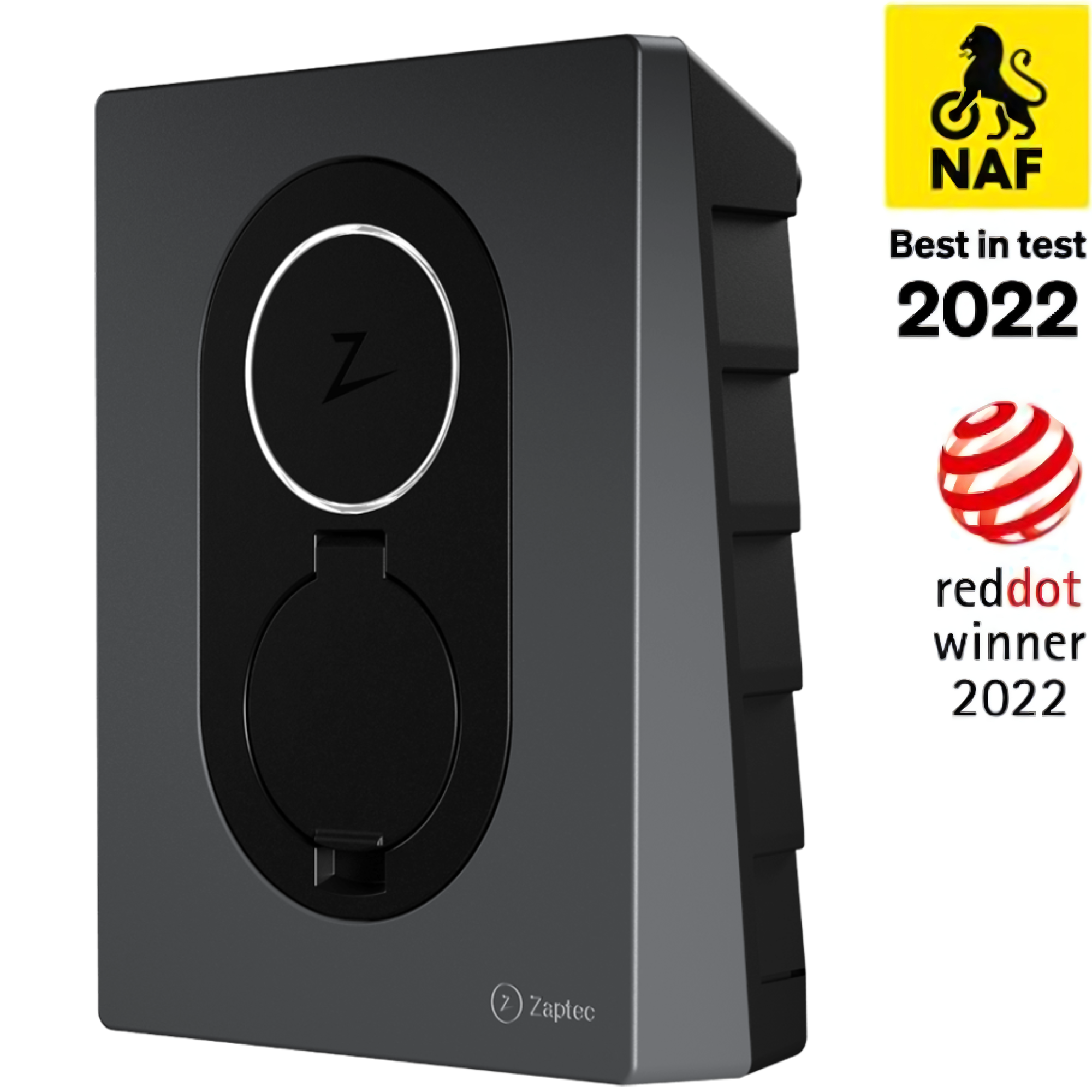

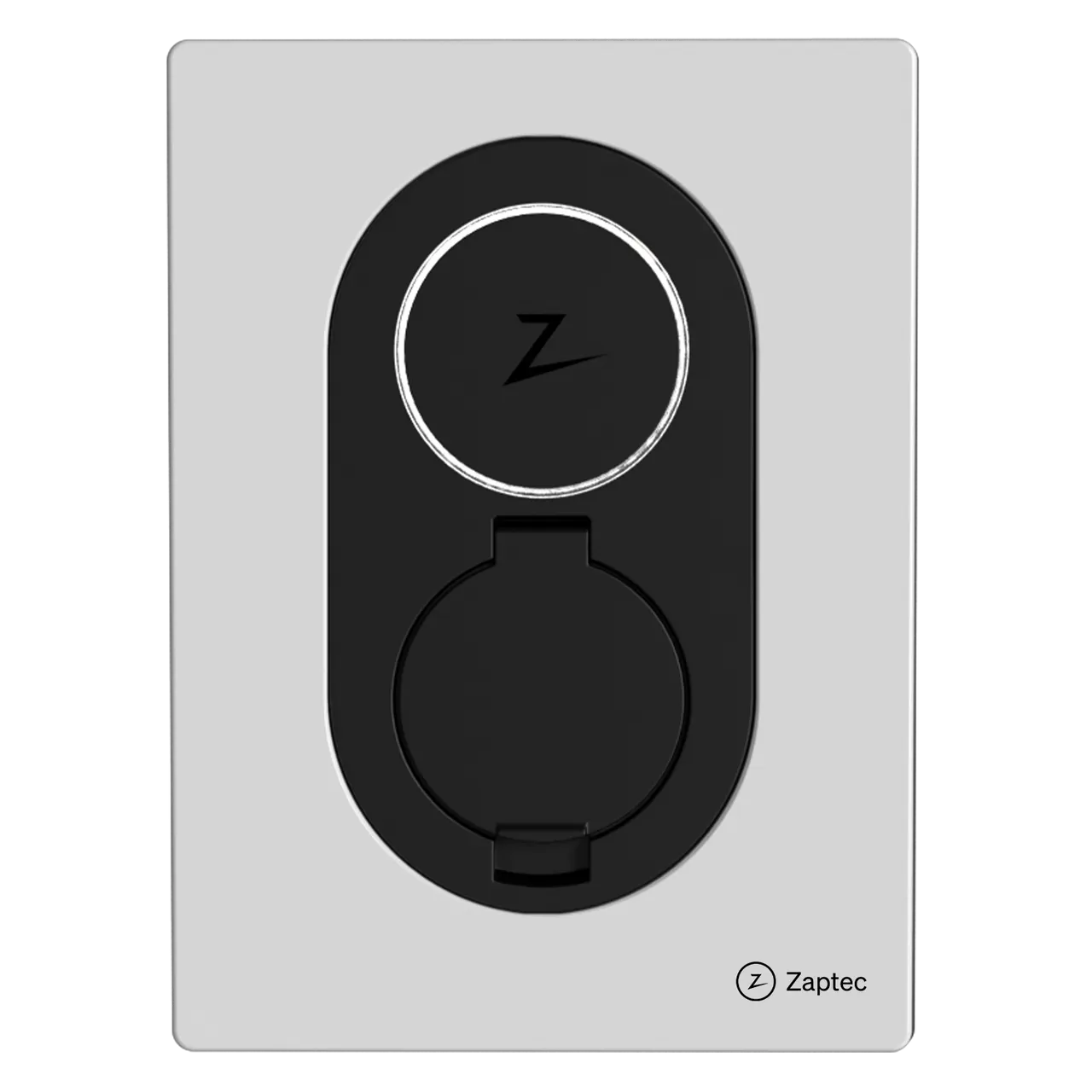

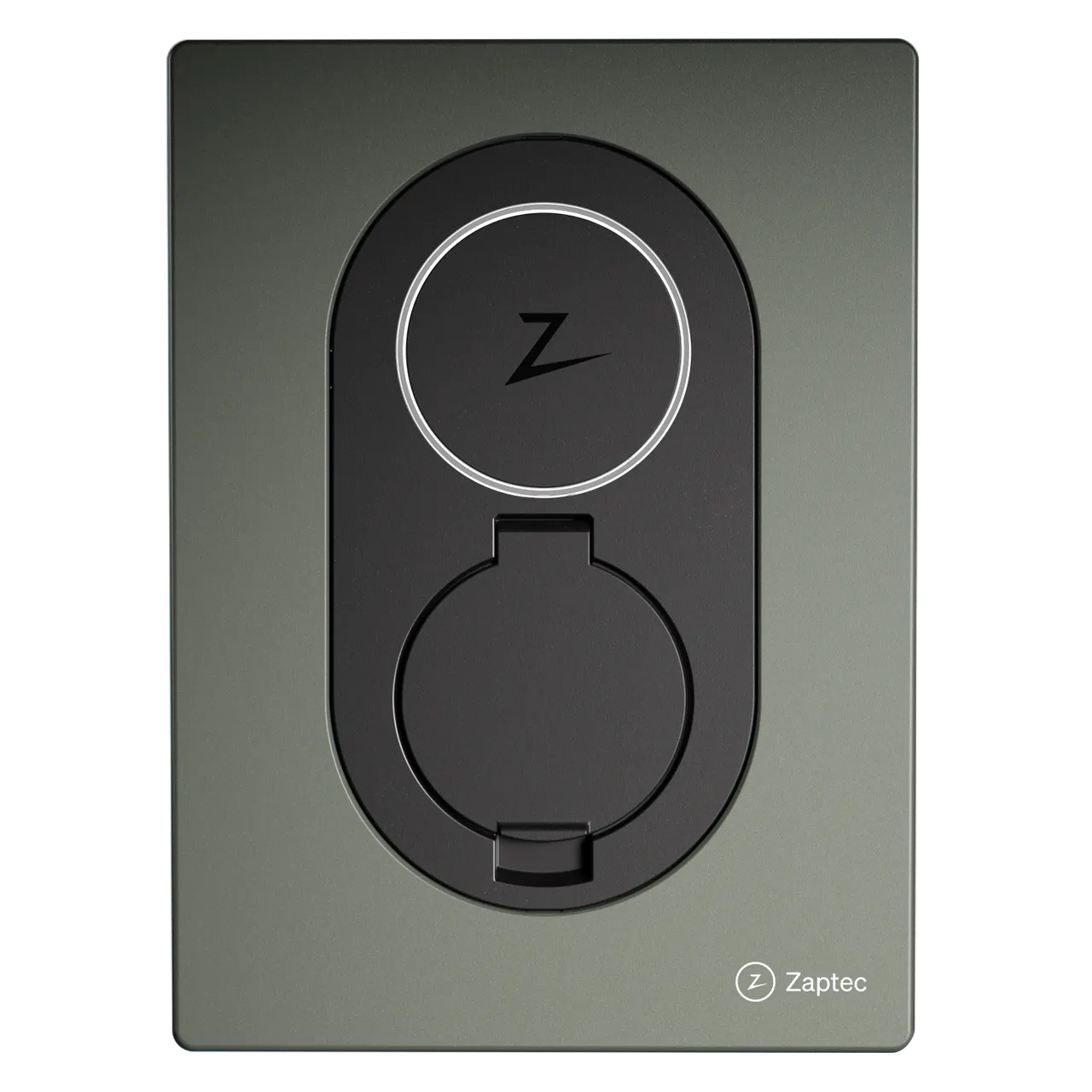

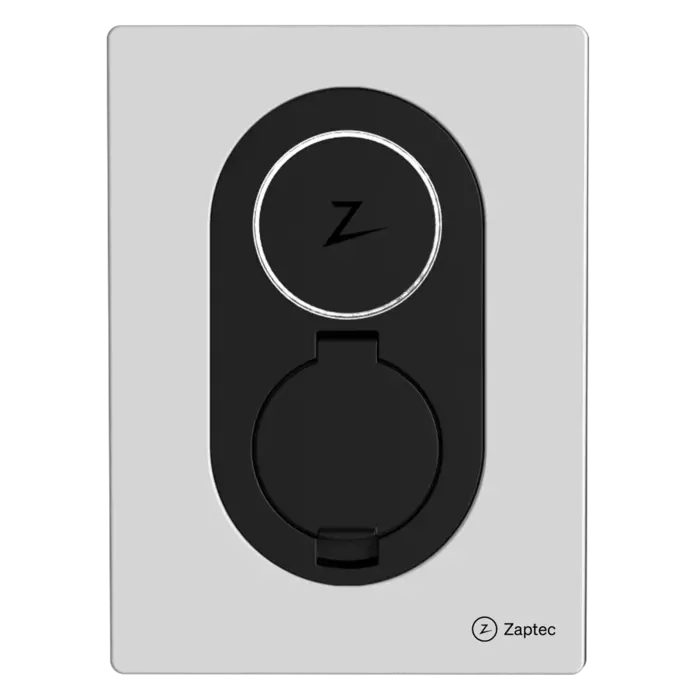

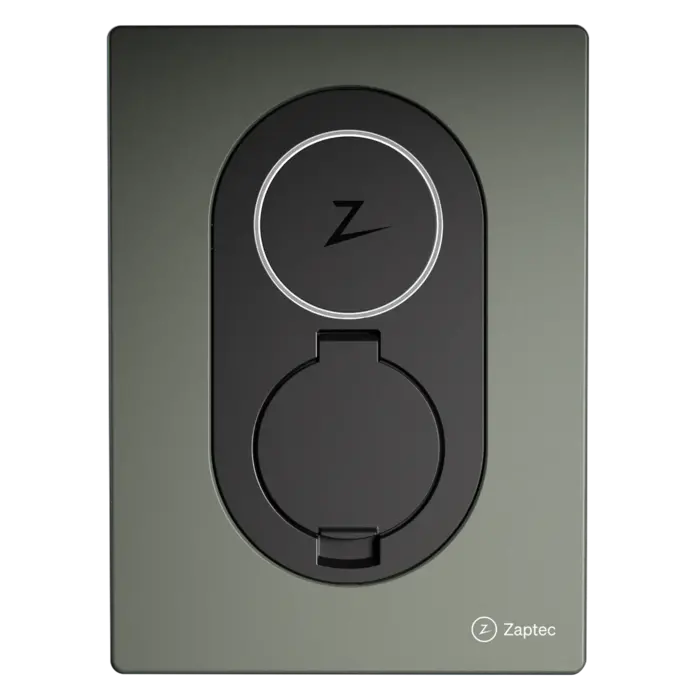

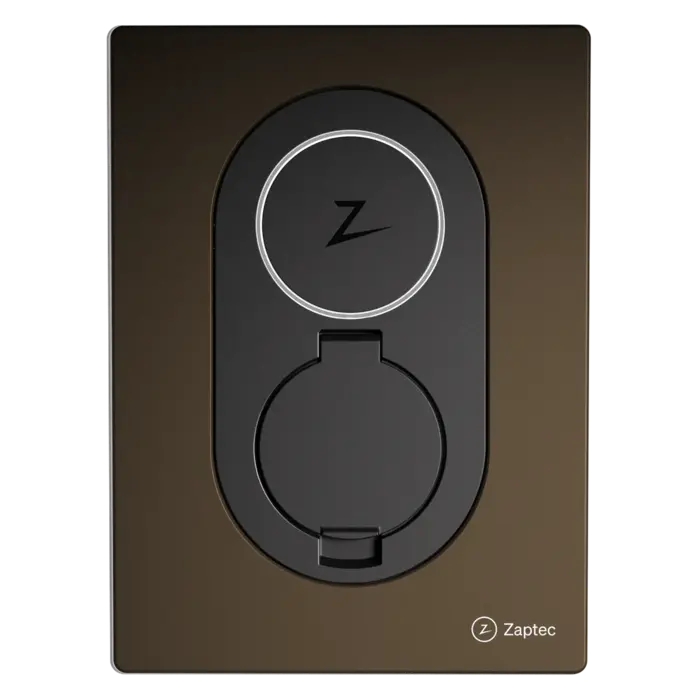

The Zaptec Go is a compact charger measuring only 24 x 18 cm of sleek Scandinavian design. Features a charging capacity of up to 22 kW, via a type 2 socket. Easy to pair with your dynamic energy contract from Tibber. Anytime and anywhere online via Wi-Fi or 4G, using the Zaptec APP. Dynamic load balancing and RFID locking are optional. Suitable for business settlement and all charge cards. A Norwegian quality product with a 5-year warranty.

• This wallbox is suitable for all hybrid and electric cars with a type 2 plug.
• Maximum charging capacity: 22 kW / 3 x 32A
• Suitable for business and private use.
• Dynamic load balancing (optional via the Tibber Pulse); this means that the wallbox automatically takes into account the power consumption of the household/company, thus preventing overloading.
• Linkable with your dynamic energy contract from Tibber; The Zaptec Go has the ability to take full advantage of your dynamic energy contract. In fact, this wallbox can be programmed, through charging schedules, to charge your car at the time when the power is cheapest for you.
• Free Zaptec APP; this app allows you to remotely control and monitor/read your Zaptec Go wallbox. Via the app, you can use the following features, among others:
  - Gain insight into your charging session and monitor speed
  - Track your charging history
  - Lock the cable in the charger
  - Control accessibility for friends and/or family.

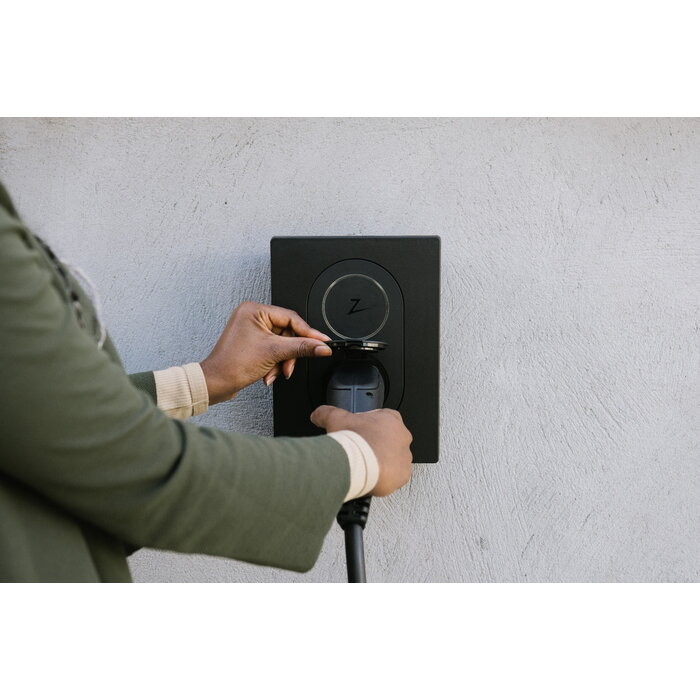

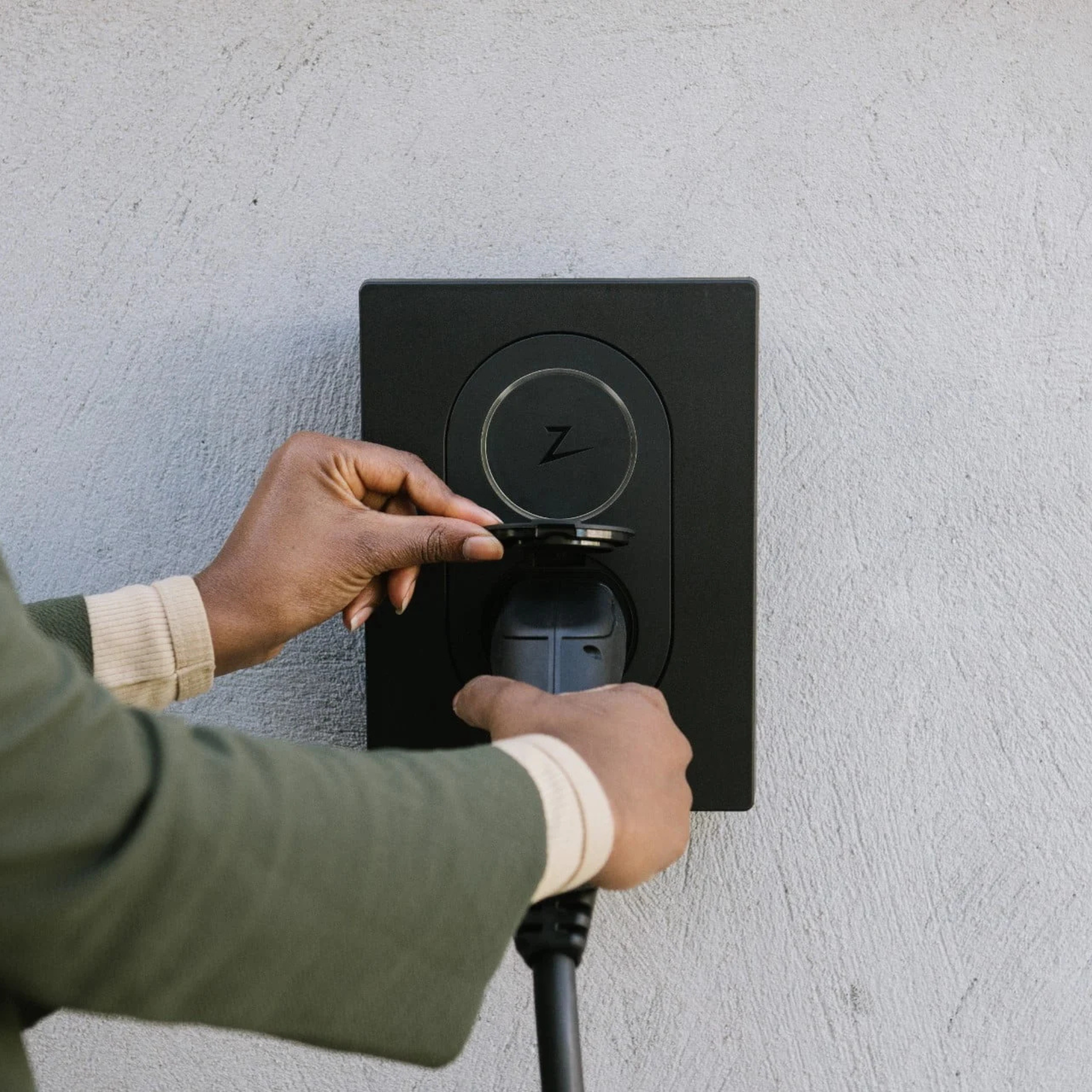

• This wallbox features a socket connection for a type 2 plug.
• Features a "lock function," making the charger also usable with a fixed charging cable.
• Includes DC 6mA ground fault protection, protection against over -& underload, overheating and short circuit.
• Plug & Charge or authorization via RFID security (optional via Zaptec RFID Key); in order to prevent unauthorized use.
• LED status indication; via the RGBW LED circle on the front of the Zaptec Go, the charging status is displayed.
• Power Sharing; possibility to connect multiple (3 pcs) Zaptec Go chargers to one connection.
• Free back office choice (sim-lock free).
• Zaptec Portal; Installers and owners of Zaptec chargers easily keep track of their own installations/chargers in the Zaptec Portal. Here you add charging stations, see charging history, perform updates, monitor and change configurations, etc.
• Central System communication protocol: OCPP 1.6J cloud-to-cloud
• Wi-Fi and 4G connectivity.

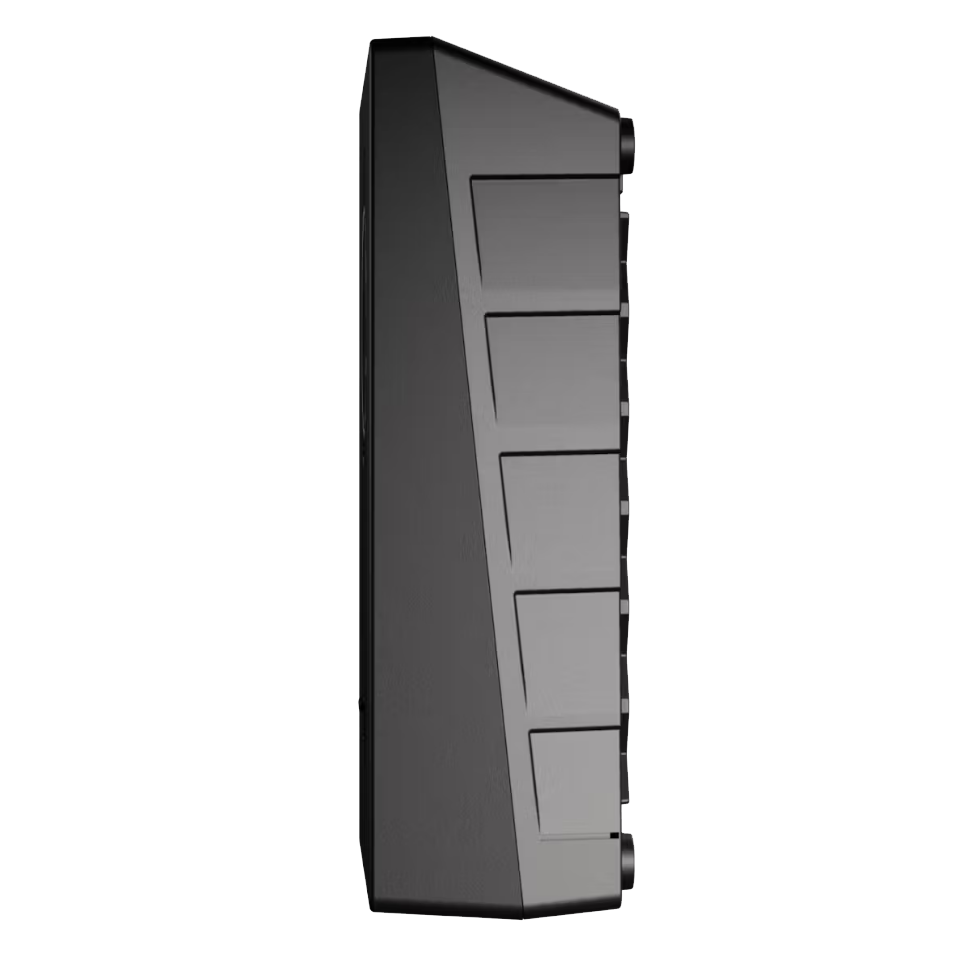

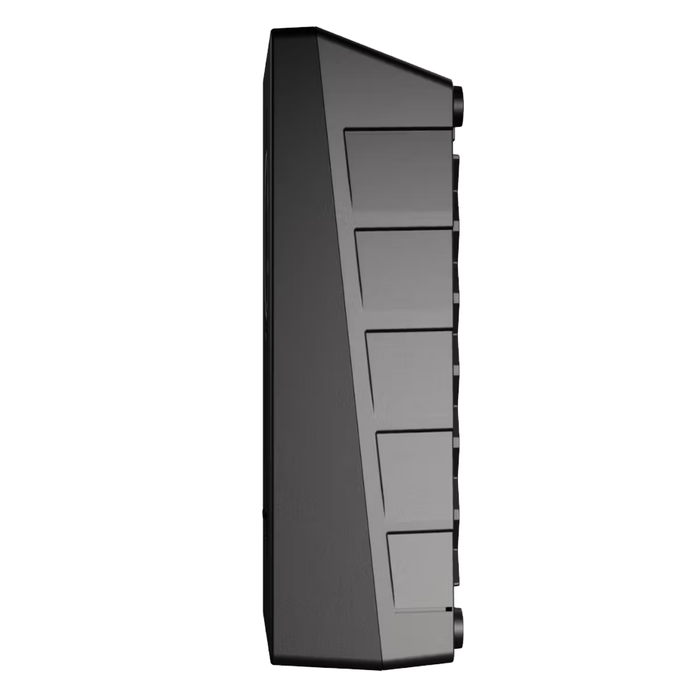

• Dimensions: 24,2 x 18 x 7,5 (h x w x d)
• Weight: 1,3 KG

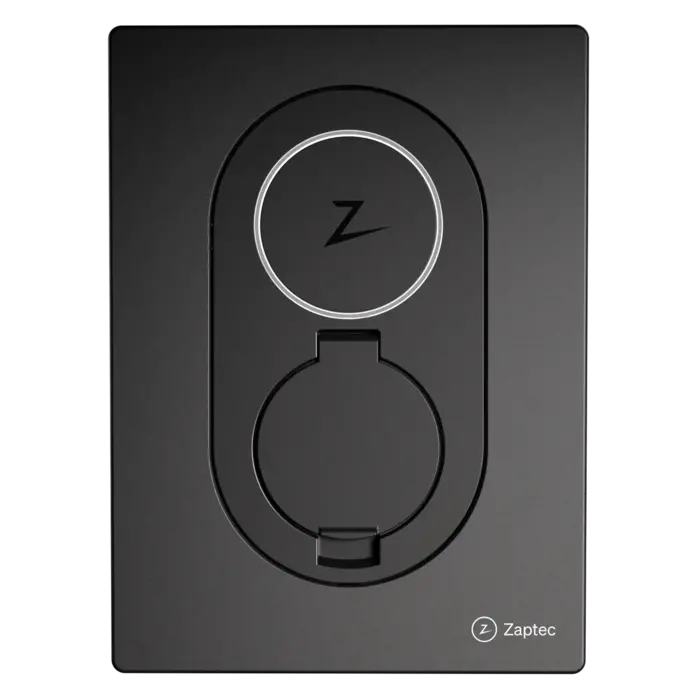

• Made of plastic in the color asphalt black.
• This wallbox comes standard with a multilingual installation and user manual.

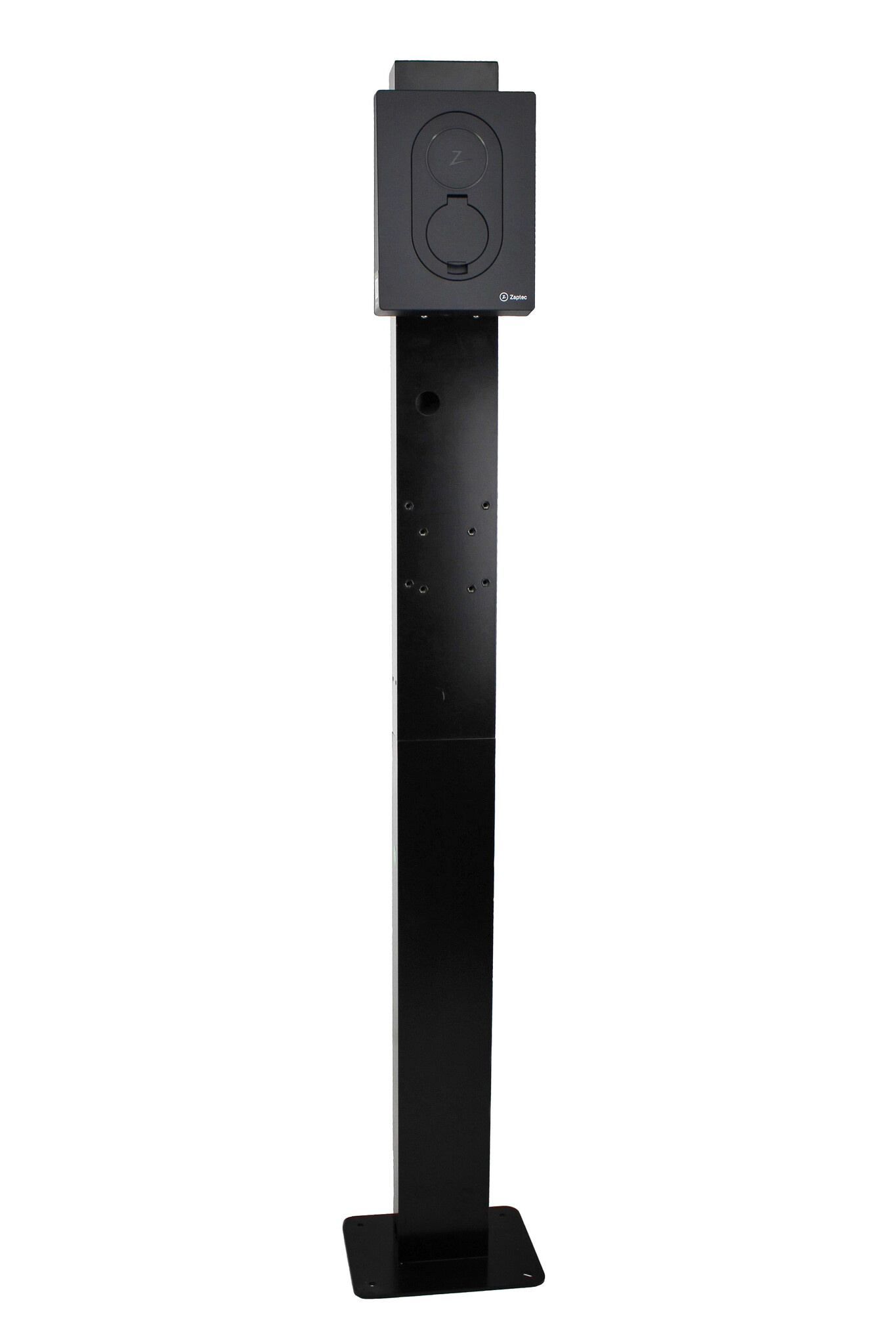

• Wall and pole mounting possible.
• Easy to install due to the plug-and-play design of the Zaptec Go.
• Protection grade IP54 / IK8: Suitable for outdoor use.
• European A-quality; a solid and high-quality Norwegian product.
• 5-year warranty.

Zaptec Go 22 kW wallbox installation

When installing a Wallbox Pulsar 11 kW EV charger, you actually have 2 choices;
1) You can install the Zaptec Go 22 kW ev charger yourself
2) Let a charging station-installer install it
In general, we always recommend having the charging station installed by a recognised charging station installer. After all, you don't want to compromise on safety and knowledge. People often underestimate how much is involved and mistakes can have major consequences. A recognised installer has completed the necessary installation courses, often including those provided by the brand itself.
If you decide to install the charging station at home yourself, we would like to give you a few tips.
First, always use an earth leakage circuit breaker with B characteristics, which is always lower than your main connection. Secondly, you will need a power cable for this 22 kW charging station. In this case, that is a 5x6mm2 YMVK cable for inside / in conduit or a 4x6mm2 YMVK-as ground cable for outside. If you want to activate dynamic load balancing, you will need the Tibber Pulse with it. Because it only connects via Wifi, you don't need a data cable.
Have you also checked whether you still have enough space in your fuse box? The earth leakage circuit breaker takes up 4 modules, as does the Tibber pulse, so an expansion box is often required.
For specific charging station installation instructions, please refer to the manual(s) below.

Want to know more about the Zaptec Go wallbox?
- Installation manual (in English)
- User manual (in English)
- Datasheet (in English)
- EU Declaration of Conformity
- Zaptec Portal login
