Pros and cons
- Up to 22 kW charging on 1-phase or 3-phase
- Unlimited, multi-level Nexus load management for medium and large charging sites
- WiFi, Ethernet, Bluetooth, 4G eSIM and local OCPP
- NexSync and NexBlue Ready make it easy to expand larger charging sites
- ISO 15118, Plug & Charge and V2G ready
- No MID-certified energy meter
- No OLED display; charging data is available via LED, app and portal
- An additional certified metering or back-office solution is required for official business charging reimbursement
DescriptionRead more
The NexBlue Delta is a smart commercial EV charger with a Type 2 socket and a maximum charging capacity of 22 kW. The wallbox is specifically designed for business premises, apartment complexes, parking garages, vehicle fleets and other medium to large charging locations. The NexBlue Delta also features an integrated energy meter with an accuracy of ±1%. This meter is not MID-certified.
- Suitable for all hybrid and electric vehicles with a Type 2 connector.
- Adjustable charging power for both single-phase and three-phase connections.
- Maximum charging capacity: 22 kW with 3-phase.
- Maximum charging capacity with 1-phase: 7.4 kW.

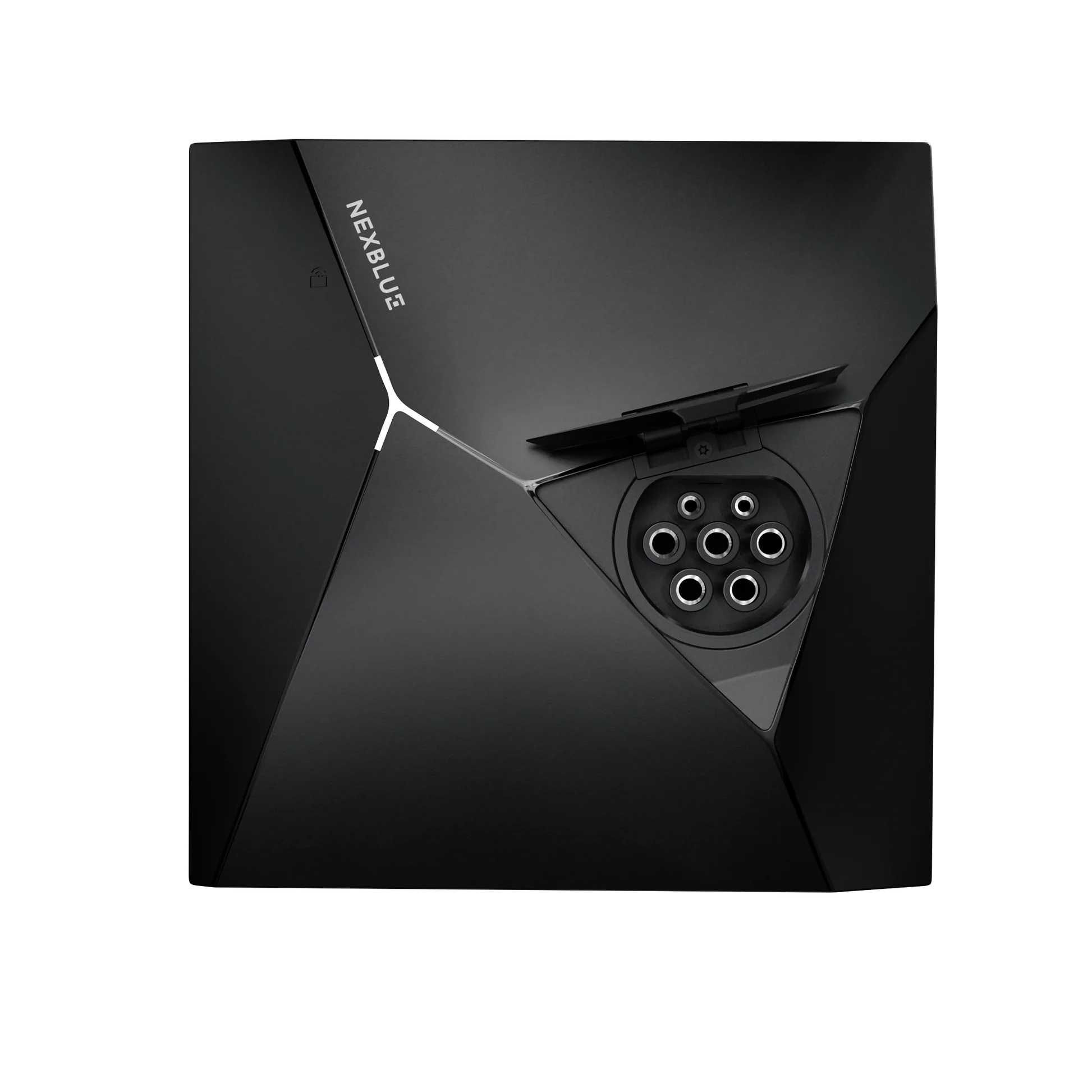

- Equipped with a Type 2 socket.
- A separate Type 2 charging cable is not included as standard.
- Electronic cable locking; the charging cable can be permanently locked in place.
- Automatically distributes the available power across an unlimited number of NexBlue EV chargers.
- Charging with surplus solar energy is possible via a suitable energy meter.
- Control and monitoring via the myNexBlue App and NexBlue portals.
- Authentication via the app, RFID, NFC, Plug & Play or the user portal.
- Energy meter with an accuracy of ±1%.
- NexSync automatically transfers settings to charging stations installed at a later date.
- NexBlue Ready allows future charging points to be prepared in advance.
- Supports ISO 15118, Plug & Charge and V2G.
- Bidirectional charging depends on a compatible vehicle, software and applicable regulations.
- WiFi, Ethernet, Bluetooth and 4G connectivity.
- Integrated 4G eSIM.
- Nexus RF for wireless communication with NexBlue accessories.
- More than 40 integrated sensors for monitoring and security.
- Protection against overload, overvoltage, undervoltage and overheating.
- Multicolour LED status indicator on the front.
- Dimensions: 23.5 x 23 x 10.7 cm (H x W x D).
- Weight: 2.3 kg.
- Made from UV-resistant plastic in Space Black.
- Quick wall mounting
- IP54 / IK10 protection rating: suitable for outdoor use.
- Operating temperature from -30°C to 50°C.
- 5-year warranty
