Ratio io6 22 kW - phase 3 - 32A - Type 2 - socket - EV Charger
Cheapest Wallboxes in Europe
Fast & Free Worldwide Shipping*
No Tax for Companies & Non-EU
Ordered before 15.00 = shipped today*
Pros and cons
- E-Flux - automatic settlement
- (Solar) Dynamic Load Balancing possible
- Free Ratio EV Charging App
- Possible to charge even 6A, useful when you have few solar panels
- Dutch manufacturer and excellent service
- Doesn't have a display
- Integrated kWh meter is not MID approved
DescriptionRead moreRead less
You want a EV Charger with business settlement, dynamic load balancing function, optimal use of your own generated solar energy and App control. Then this new all-rounder, the Ratio io6, is the EV Charger you want. Sleek design and the charging cable is conveniently wrapped around the charging station. A Dutch product with 3 years warranty, in short, a product that is competitively priced and assured of high quality and many features.
- This EV Charger is suitable for all hybrid and electric cars with a type 2 plug.
- Maximum charging capacity: 22 kW / 3 x 32A
- Dynamic load balancing (optional via Sense 3-phase kit 63A); this makes the EV Charger automatically take into account the power consumption of the household/business.
- Only charge your self-generated solar power using the Smart Solar and Pure Solar modes (optional via Sense 3-phase kit 63A).
- Sense 3-phase kit 63A; this kit can be ordered with your Ratio io6 EV Charger and contains a Sensorbox and three CT clamps. These are for connecting to the 3-phases in your home to communicate to monitor power consumption and are necessary for dynamic load balancing and making optimal use of your own generated solar energy.
- Power Sharing; ability to have multiple chargers (up to 4 units) connected together to evenly distribute the available power among the charging points.
- E-Flux 4G sim card; the Ratio io6 is equipped with a 4G sim card from E-Flux. This allows you to have your costs incurred while charging automatically recovered from your work/employer. This works through the back office of E-Flux.

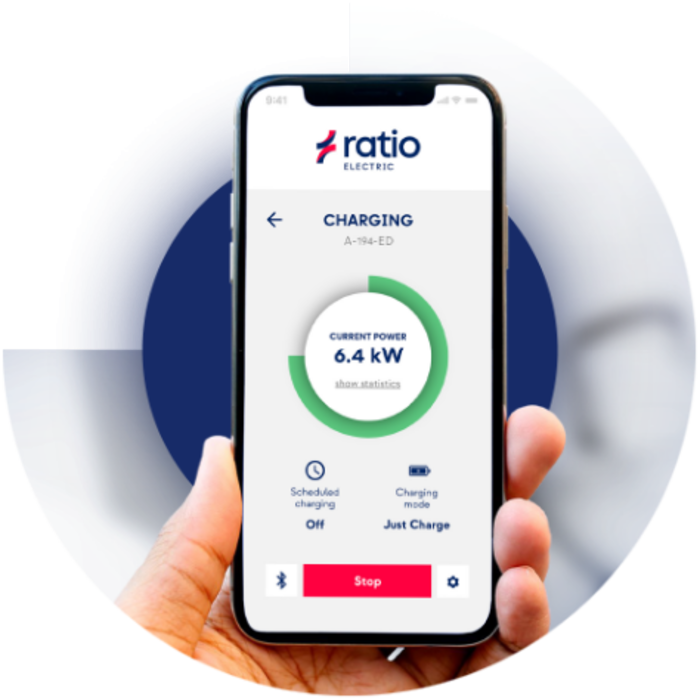

- Ratio EV Charging App; this free App allows you to remotely control and read your Ratio Solar EV Charger. Through the App, you can use the following features, among others:
- Gain insight into the current charging session
- Overview of your charging history
- Select the charging mode that suits you
- Lock and unlock the charger

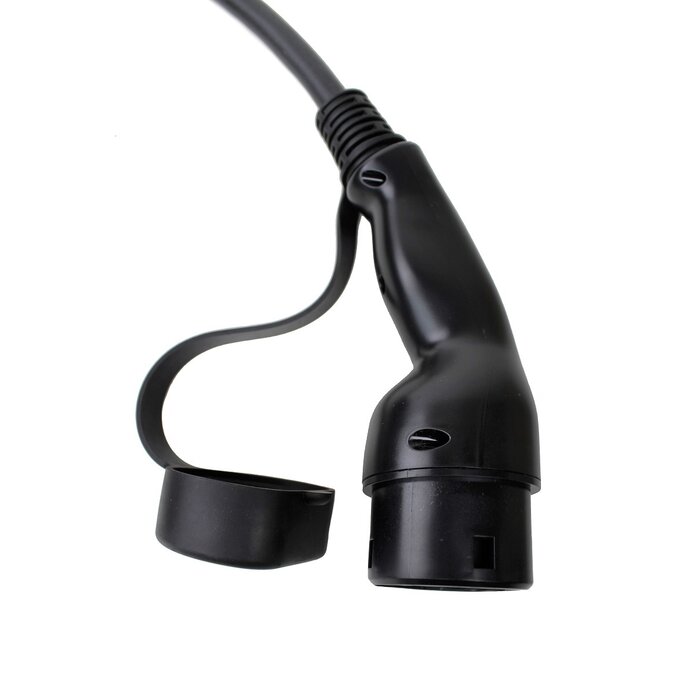

- Schedule delayed charging sessions - This EV Charger has a socket connection for a type 2 plug.
- Includes earth fault protection, protection against over- & underloading, overheating and short circuiting.
- Mode 3 EV Charger.
- All smart functions can be set via the App.
- Equipped with a kWh meter (without MID).
- Locking via App or RFID (charge card); to prevent unauthorized use.
- Bluetooth, WiFi, Ethernet and 4G connectivity.
- Dimensions: 40 x 25 x 10.5 cm (h x w x d)
- This EV Charger comes standard with drilling template, assembly step-by-step plan and English manual.
- Degree of protection IP54: Suitable for outdoor use
- Made in the Netherlands.
- 3-year warranty.
Want to know more about the Ratio io6 EV Charger?
- Installation & user manual (in English)
- Datasheet
Reviews
0/10
No reviews found
Add your reviewRelated products
Contact us for free for wallbox advice:
Call us003174-7002114
Email us[email protected]
Specifications
- Brand: Ratio Electric
- Article number: 38985
- Plug type: Type 2
- Number of Phases: 3 Phases
- Number of Amps per phase: 32A
- Maximum payload: 22 kW
- Charging cable length: Socket
- Display: No
- RFID Security: Ja
- Charging information: By LED and App
- Controllable via app: Yes (Ratio EV Charging App)
- Load Balancing: Dynamic (optional)
- Connectivity: Bluetooth / WiFi / Ethernet / 4G
- Connection with solar panels: Yes (optional)
- Suitable for charge cards: Yes
- Automatic settlement: Yes
- Subscription: Yes (optional - E-Flux)
- Simcard: 4G - E-Flux
- Language manual: NL / EN / DE
- Colour(s): Black
- Weight: 4 KG
- Sizes (excluding cables): 40 x 25 x 10,5 cm (h x w x d)
- Material: Polycarbonate
- Protection degree: IP54
- Warranty period: 36 months
